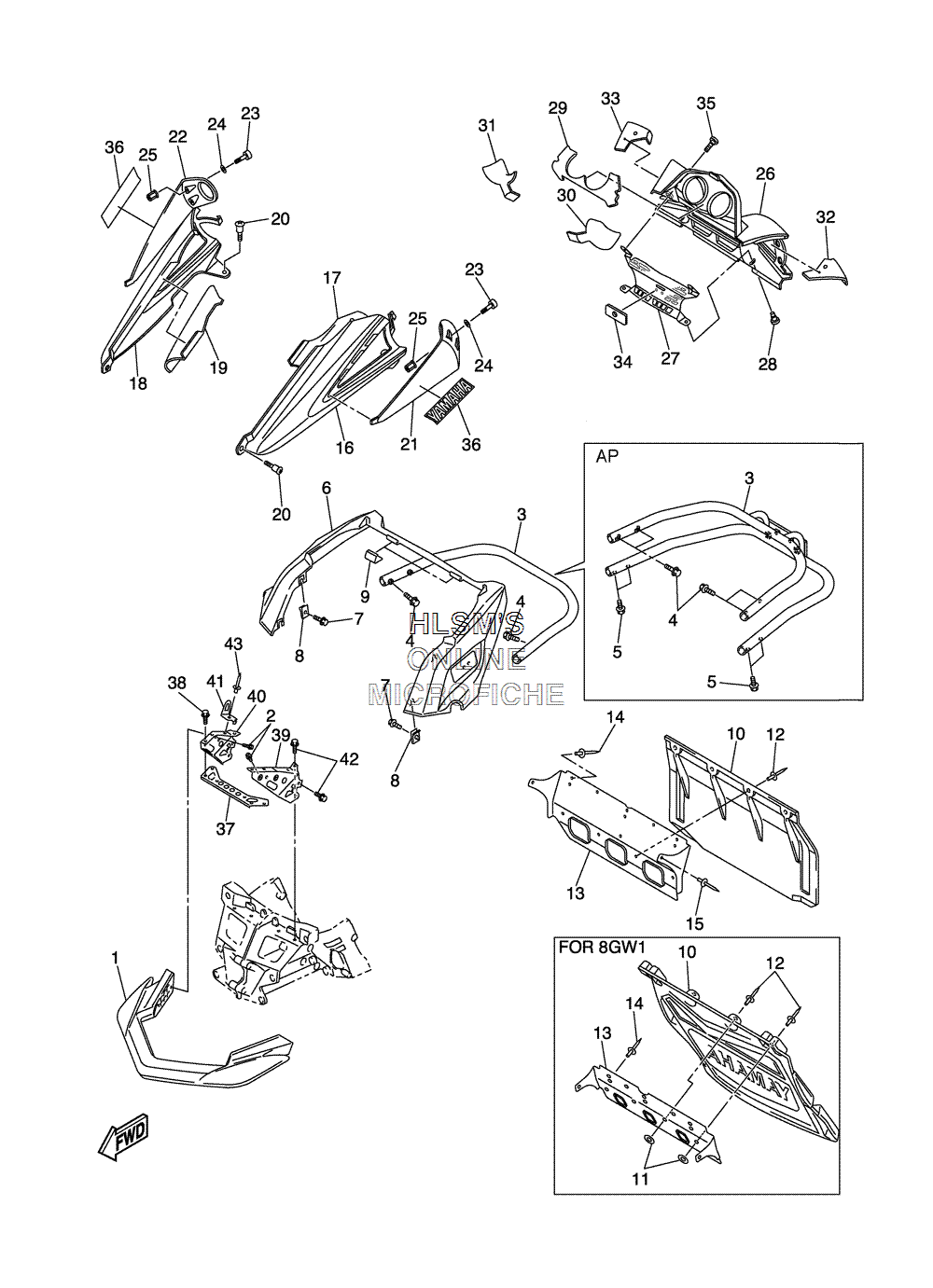

BUMPER - FRONT AND REAR для Yamaha VENTURE - 2006 года выпуска`
-
№АртикулНазвание
-
18FA-77511-01-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
38FA-77541-00-00 BUMPER, REAR 1BUMPER, REAR 1
-
38ET-77541-00-00 BUMPER, REAR 1BUMPER, REAR 1
-
495827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
595827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
68FA-77542-00-00 BUMPER, REAR 2BUMPER, REAR 2
-
795807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
890183-06053-00 NUT, SPRINGNUT, SPRING
-
98FA-7717H-00-00 TAPE 4TAPE 4
-
108CR-K7595-01-00 FLAP (BLACK)FLAP (BLACK)
-
108GW-K7595-00-00 FLAPFLAP
-
1190201-04325-00 WASHER, PLATEWASHER, PLATE
-
1290267-47200-00 RIVET, BLINDRIVET, BLIND
-
138ET-77596-00-00 STOPPER, FLAPSTOPPER, FLAP
-
138GW-77596-00-00 STOPPER, FLAPSTOPPER, FLAP
-
1490267-48095-00 RIVET, BLINDRIVET, BLIND
-
1590267-47195-00 RIVET, BLINDRIVET, BLIND
-
168ES-77551-00-00 PROTECTOR 1PROTECTOR 1
-
178ES-77261-01-00 LINING, SHROUD 1LINING, SHROUD 1
-
188ES-77552-00-00 PROTECTOR 2PROTECTOR 2
-
198ES-77262-01-00 LINING, SHROUD 2LINING, SHROUD 2
-
2090154-06009-00 SCREW, BINDINGSCREW, BINDING
-
218ES-77554-10-00 PROTECTOR 4PROTECTOR 4
-
218ES-77554-00-P2 PROTECTOR 4 (PURPLISH BLUE)PROTECTOR 4 (PURPLISH BLUE)
-
228ES-77555-10-00 PROTECTOR 5PROTECTOR 5
-
228ES-77555-00-P2 PROTECTOR 5 (PURPLISH BLUE)PROTECTOR 5 (PURPLISH BLUE)
-
2391314-06020-00 BOLTBOLT
-
2490201-06M07-00 WASHER, PLATEWASHER, PLATE
-
2590179-06520-00 NUTNUT
-
268ES-84516-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
278ES-77553-00-00 PROTECTOR 3PROTECTOR 3
-
2890267-47187-00 RIVET, BLINDRIVET, BLIND
-
298ES-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
308ES-77264-00-00 LINING, SHROUD 4LINING, SHROUD 4
-
318ES-77265-00-00 LINING, SHROUD 5LINING, SHROUD 5
-
328ES-77266-00-00 LINING, SHROUD 6LINING, SHROUD 6
-
338ES-77267-00-00 LINING, SHROUD 7LINING, SHROUD 7
-
348ES-77268-00-00 LINING, SHROUD 8LINING, SHROUD 8
-
3590154-06009-00 SCREW, BINDINGSCREW, BINDING
-
3699244-00120-00 EMBLEM, YAMAHA (BLACK)EMBLEM, YAMAHA (BLACK)
-
3699246-00120-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
378FA-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
3895827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
398FA-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
408FA-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
418FA-77125-00-00 STAY 1STAY 1
-
4295827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
4390267-47195-00 RIVET, BLINDRIVET, BLIND
