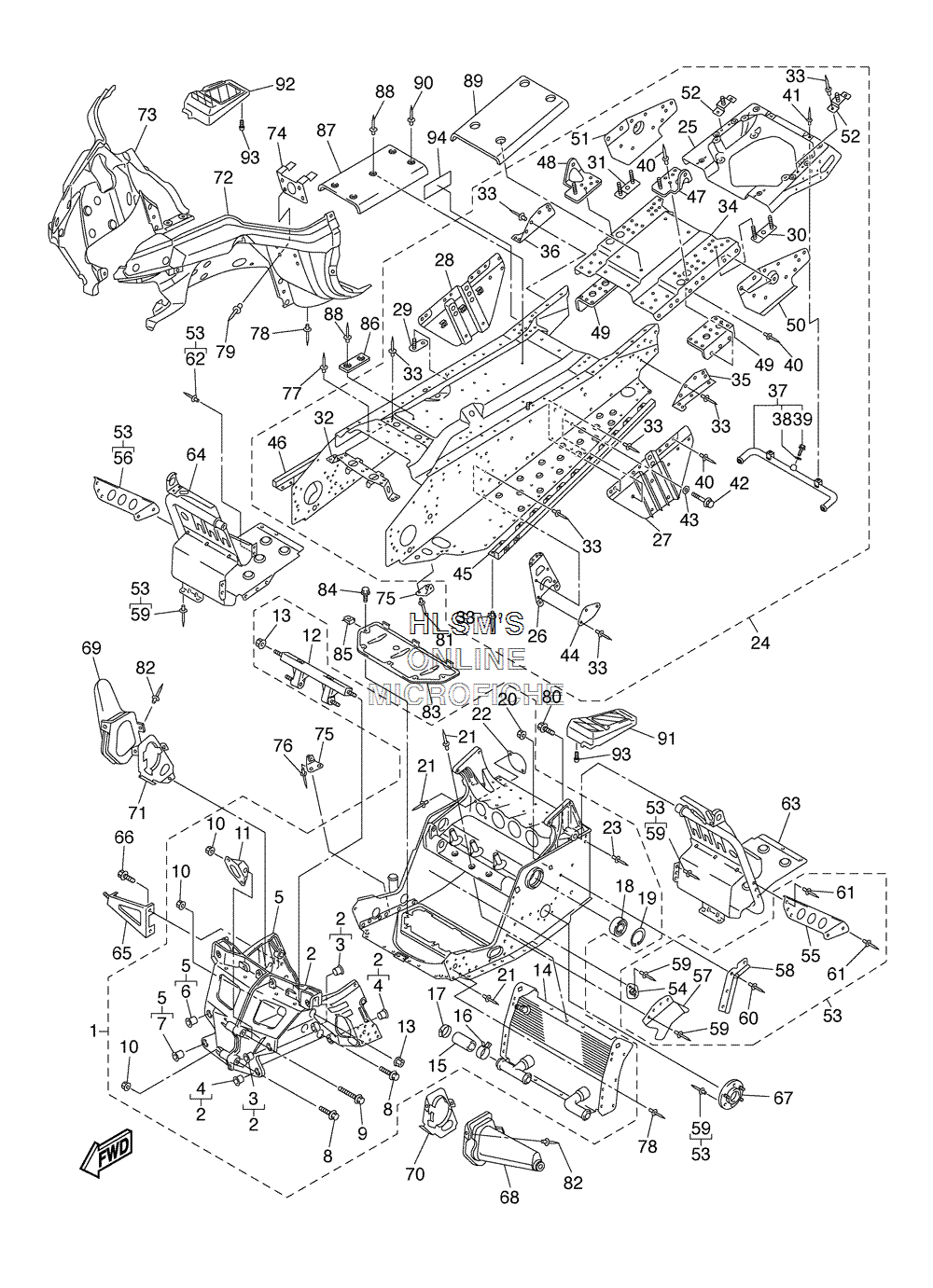

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha VENTURE GT - 2006 года выпуска
-
№АртикулНазвание
-
18ET-21940-01-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-11-00 ...BULKHEAD...BULKHEAD
-
390381-15001-00 ...BUSH, SOLID...BUSH, SOLID
-
490381-16001-00 ...BUSH, SOLID...BUSH, SOLID
-
58FA-W2198-11-00 ...BULKHEAD 2...BULKHEAD 2
-
690381-15001-00 ...BUSH, SOLID...BUSH, SOLID
-
790381-16001-00 ...BUSH, SOLID...BUSH, SOLID
-
895827-08060-00 ...BOLT, FLANGE...BOLT, FLANGE
-
995827-08065-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
1095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
118FA-2128A-00-00 ...BRACKET, REGULATOR...BRACKET, REGULATOR
-
128FG-21947-00-00 ...BRACKET, STEERING 1...BRACKET, STEERING 1
-
1395607-10200-00 ...NUT, U FLANGE...NUT, U FLANGE
-
148ET-12440-00-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
158FA-12551-00-00 ...HOSE 7...HOSE 7
-
1690467-28046-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
1790450-35001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
1893306-20650-00 ...BEARING...BEARING
-
1999009-62500-00 ...CIRCLIP...CIRCLIP
-
2095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
2190267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
228ES-2131D-00-00 ...PLATE, COVER...PLATE, COVER
-
2390267-48176-00 ...RIVET, BLIND...RIVET, BLIND
-
248ET-21950-02-00 REAR FRAME COMP.REAR FRAME COMP.
-
258FA-W2199-10-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
268ET-21943-01-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
278ET-21944-00-00 ...BRACKET, RR.TRACK SUSPENSIO...BRACKET, RR.TRACK SUSPENSIO
-
288ET-21954-00-00 ...BRACKET, RR. TRACK SUSPENSION...BRACKET, RR. TRACK SUSPENSION
-
298CR-2194N-00-00 ...BRACKET, FUEL TANK 1...BRACKET, FUEL TANK 1
-
308ET-2194X-00-00 ...BRACKET 1...BRACKET 1
-
318ET-2195X-00-00 ...BRACKET 2...BRACKET 2
-
328ES-2194H-00-00 ...PROTECTOR, MUFFLER...PROTECTOR, MUFFLER
-
3390267-47195-00 ...RIVET, BLIND (REQ, QTY:140)...RIVET, BLIND (REQ, QTY:140)
-
348ET-21916-00-00 ...PANEL, SUB FRAME 5...PANEL, SUB FRAME 5
-
358ET-21963-00-00 ...PATCH 3...PATCH 3
-
368ET-21964-00-00 ...PATCH 4...PATCH 4
-
378FU-1241A-00-00 ...HEAT EXCHANGER ASSY 4...HEAT EXCHANGER ASSY 4
-
3890210-06006-00 ...WASHER, SEAL...WASHER, SEAL
-
3995817-06016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
4090267-47197-00 ...RIVET, BLIND...RIVET, BLIND
-
4190267-48095-00 ...RIVET, BLIND...RIVET, BLIND
-
4295817-10020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
4390201-100S0-00 ...WASHER, PLATE...WASHER, PLATE
-
448ET-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
458ET-21926-00-00 ...REINFORCEMENT, FOOTREST 1...REINFORCEMENT, FOOTREST 1
-
468ET-21936-00-00 ...REINFORCEMENT, FOOTREST 2...REINFORCEMENT, FOOTREST 2
-
478ET-21946-00-00 ...BRACKET, SEAT FITTING...BRACKET, SEAT FITTING
-
488ET-21956-00-00 ...BRACKET, SEAT FITTING 1...BRACKET, SEAT FITTING 1
-
498ET-21988-00-00 ...PATCH 8...PATCH 8
-
508ET-21989-00-00 ...PATCH 9...PATCH 9
-
518ET-21997-00-00 ...PATCH 10...PATCH 10
-
528ET-2196G-00-00 ...BRACKET 4...BRACKET 4
-
538FK-W2195-10-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
548CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
558FU-2196M-00-00 ...BRACKET, 5...BRACKET, 5
-
568FU-2197M-00-00 ...BRACKET, 6...BRACKET, 6
-
578FU-2198G-00-00 ...COVER 2...COVER 2
-
588FA-21999-00-00 ...CLAMP, WIREHARNESS...CLAMP, WIREHARNESS
-
5990267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
6090267-48018-00 ...RIVET, BLIND...RIVET, BLIND
-
6190267-48177-00 ...RIVET, BLIND...RIVET, BLIND
-
6290267-47186-00 ...RIVET, BLIND...RIVET, BLIND
-
638FU-21960-01-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
648FU-21970-01-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
658ES-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
6695827-08014-00 BOLT, FLANGEBOLT, FLANGE
-
678EK-21920-01-00 HOUSING, REINF SUB-ASSY(L.H)HOUSING, REINF SUB-ASSY(L.H)
-
688FU-2198F-00-00 COVER 1COVER 1
-
698FU-2198J-00-00 COVER 3COVER 3
-
708FU-2195E-01-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
718FU-2195F-01-00 PLATE, STRG BRACKET 2PLATE, STRG BRACKET 2
-
728ES-2196A-00-00 FRAME UNDER 1FRAME UNDER 1
-
738FA-2196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
748FA-21972-01-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
758FA-2196F-00-00 BRACKET 3BRACKET 3
-
7690267-48083-00 RIVET, BLINDRIVET, BLIND
-
7790267-48169-00 RIVET, BLINDRIVET, BLIND
-
7890267-48018-00 RIVET, BLINDRIVET, BLIND
-
7990267-47200-00 RIVET, BLINDRIVET, BLIND
-
8095827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
8190267-48095-00 RIVET, BLINDRIVET, BLIND
-
8290267-47195-00 RIVET, BLINDRIVET, BLIND
-
838FA-2197E-01-00 PROTECTOR, FRAME FRPROTECTOR, FRAME FR
-
8490109-065F3-00 BOLTBOLT
-
8590183-06053-00 NUT, SPRINGNUT, SPRING
-
868FA-21998-00-00 SPACERSPACER
-
878FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
8890267-48059-00 RIVET, BLINDRIVET, BLIND
-
898ET-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
9090267-47004-00 RIVET, BLINDRIVET, BLIND
-
918DM-27431-00-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
928DM-27441-00-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
9397707-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
948FJ-2179D-00-00 PLETE, EPA OFFROAD 2PLETE, EPA OFFROAD 2
