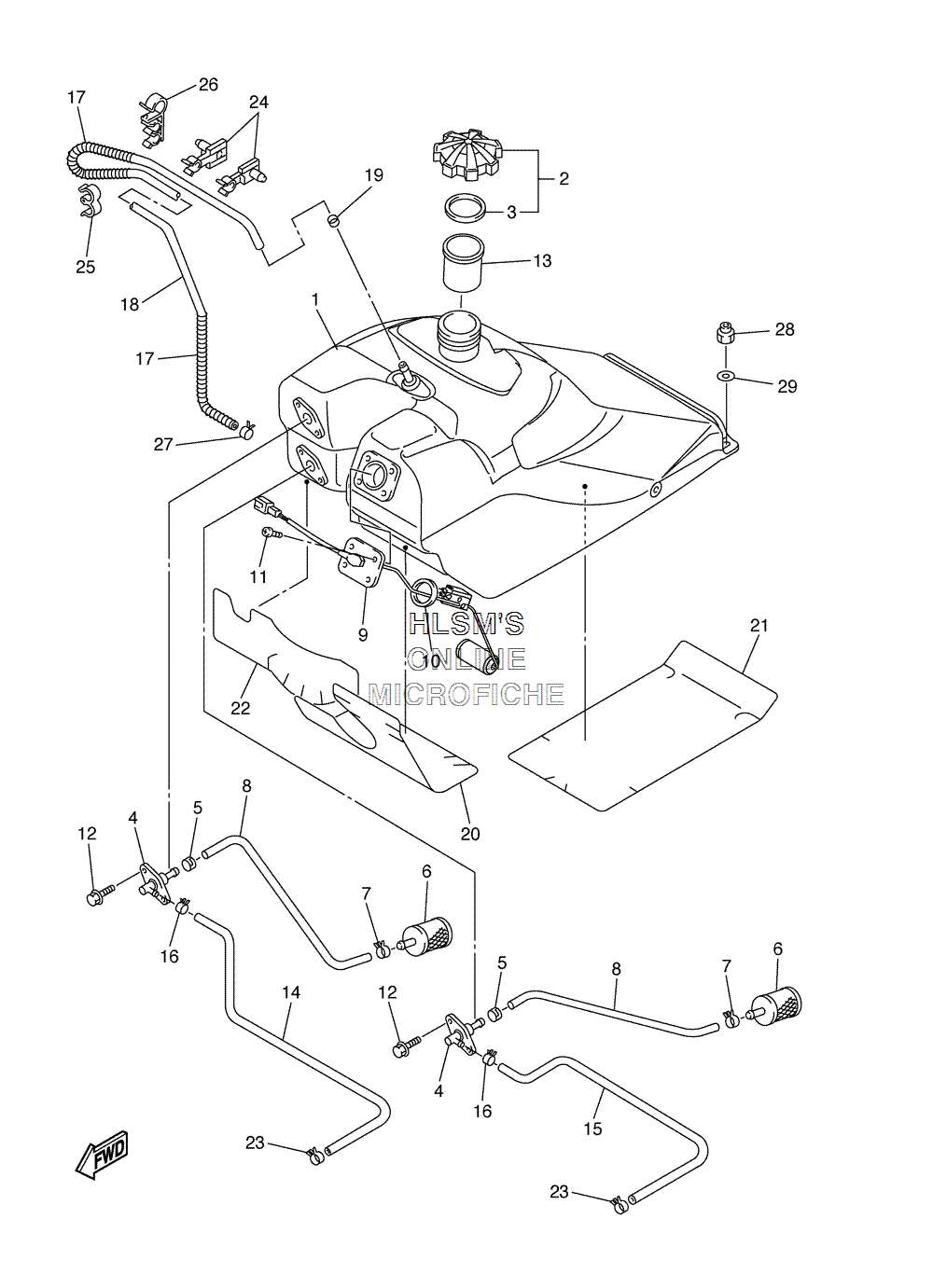

FUEL TANK ASSY для Yamaha VECTOR - 2006 года выпуска`
-
№АртикулНазвание
-
18FJ-24111-00-00 TANK, FUELTANK, FUEL
-
28FG-24610-00-00 CAP ASSYCAP ASSY
-
38FG-24641-00-00 ...GASKET, CAP 1...GASKET, CAP 1
-
48CR-24301-00-00 SUCTION PIPE COMP. 1SUCTION PIPE COMP. 1
-
590468-04092-00 CLIPCLIP
-
68H5-24560-00-00 FILTER ASSYFILTER ASSY
-
790467-11032-00 CLIP, SCISSORCLIP, SCISSOR
-
88FA-24335-00-00 PIPE, SUCTION 1PIPE, SUCTION 1
-
98FG-85752-00-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
1093210-41041-00 O-RINGO-RING
-
1198907-05008-00 SCREW, BINDSCREW, BIND
-
1290105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
138FG-24114-00-00 TUBE, FILLERTUBE, FILLER
-
148FA-24311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
158FA-24311-10-00 PIPE, FUEL 1PIPE, FUEL 1
-
1690467-11032-00 CLIP, SCISSORCLIP, SCISSOR
-
1790501-08668-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1891A20-05115-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
1990468-02078-00 CLIPCLIP
-
208FA-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
218FA-24141-10-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
228FA-2416F-00-00 INSULATOR, FUEL TANK 1INSULATOR, FUEL TANK 1
-
2390467-11032-00 CLIP, SCISSORCLIP, SCISSOR
-
2490464-09015-00 CLAMPCLAMP
-
2590464-13194-00 CLAMPCLAMP
-
2690464-16010-00 CLAMPCLAMP
-
2790467-09026-00 CLIP, SCISSORCLIP, SCISSOR
-
2895707-08300-00 NUT, NYLONNUT, NYLON
-
2990201-08784-00 WASHER, PLATEWASHER, PLATE
