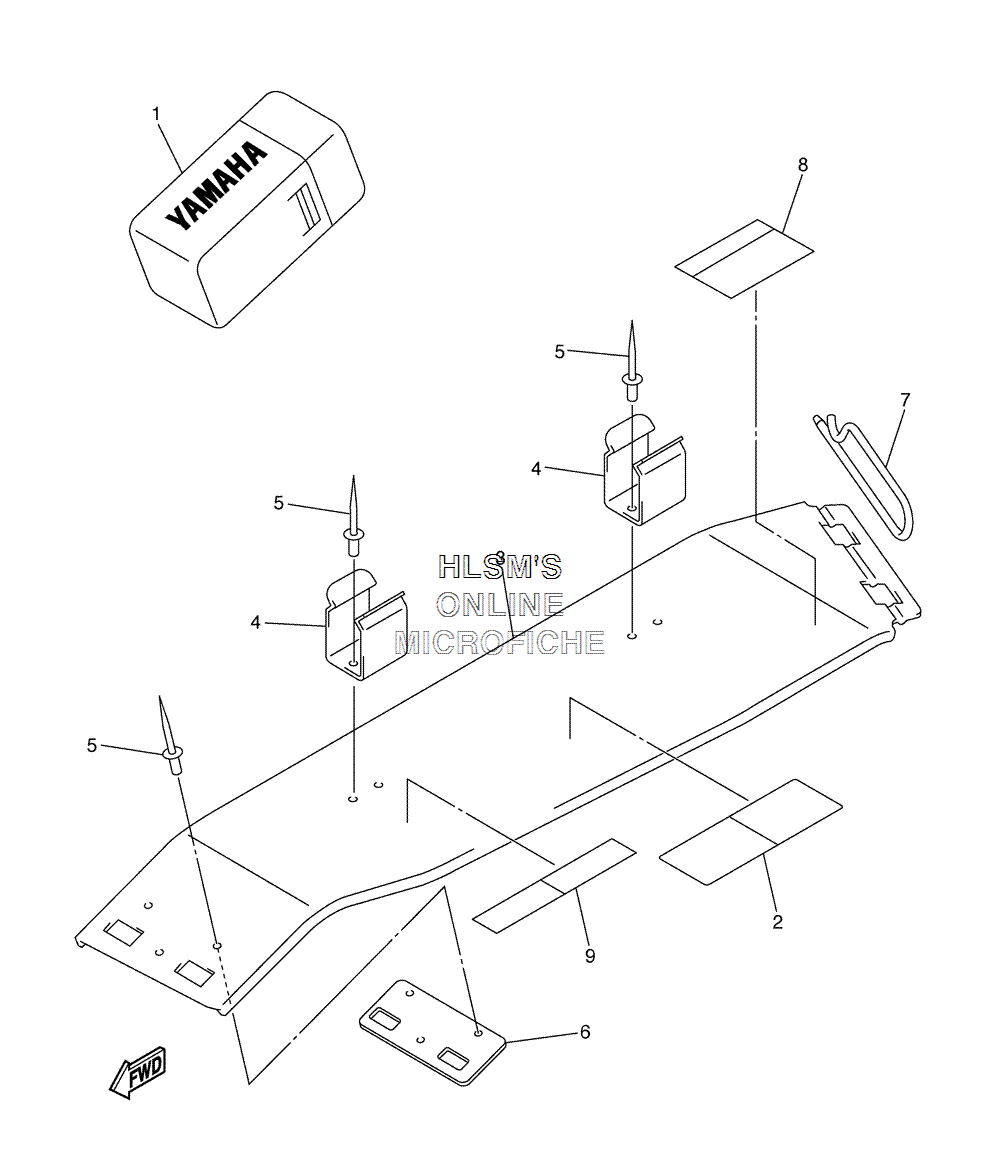

BELT GUARD W/ TOOL BOX для Yamaha VECTOR MOUNTAIN - 2006 года выпуска`
-
№АртикулНазвание
-
18GF-28100-00-00 TOOL KITTOOL KIT
-
28ES-47578-00-00 LABEL 1LABEL 1
-
38FA-77311-02-00 GUARD, DRIVEGUARD, DRIVE
-
48CR-77338-00-00 STAY, BELTSTAY, BELT
-
590267-48010-00 RIVET, BLINDRIVET, BLIND
-
68FA-77373-00-00 PROTECTORPROTECTOR
-
78CR-77384-01-00 PINPIN
-
88BD-77762-00-00 LABEL, WARNING 2LABEL, WARNING 2
-
98ES-1417E-00-00 LABEL, CAUTIONLABEL, CAUTION
