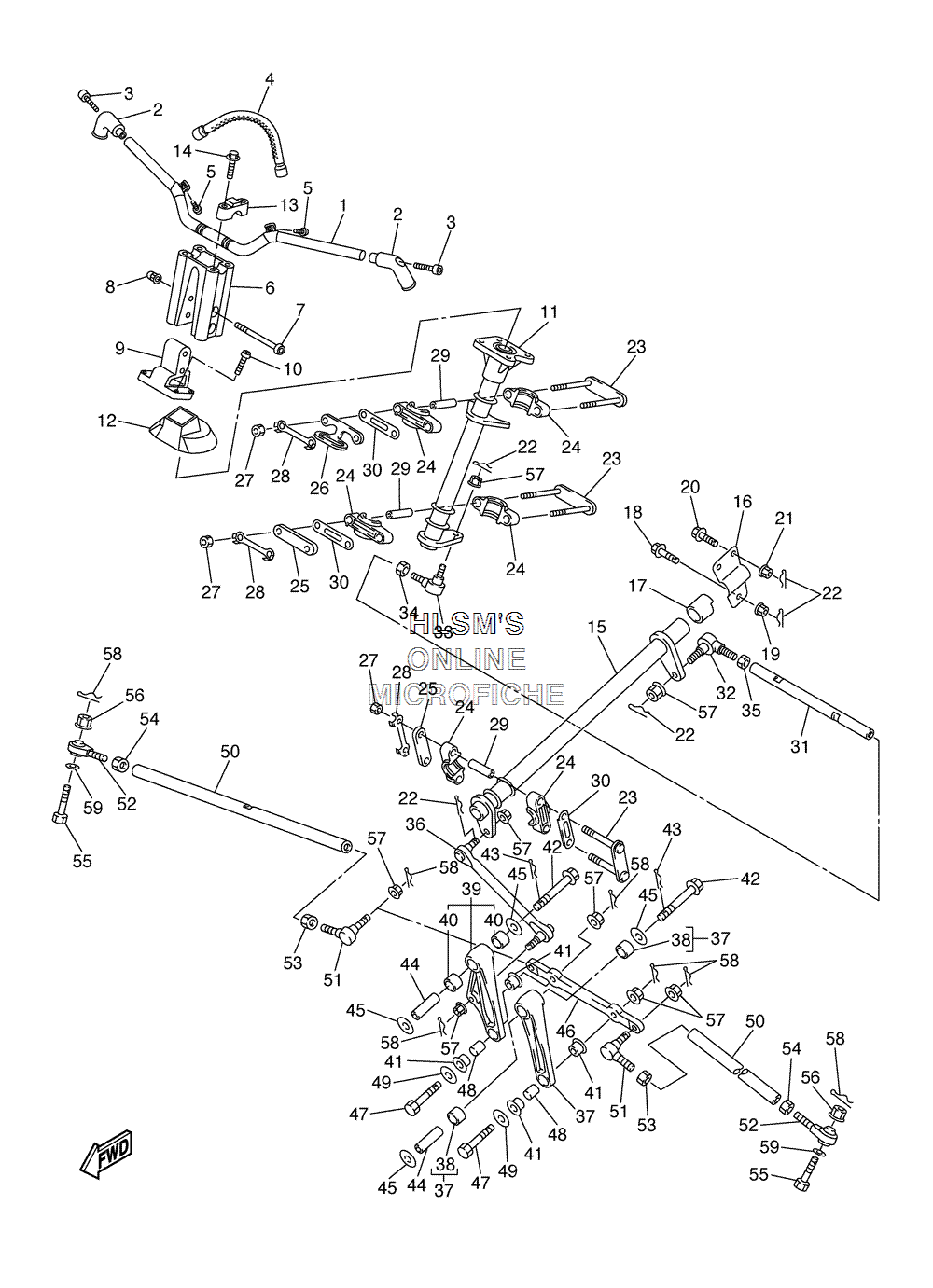

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha VECTOR MOUNTAIN SE - 2006 года выпуска`
-
№АртикулНазвание
-
18GE-26111-01-00 HANDLEBARHANDLEBAR
-
28FP-26246-00-00 END, GRIPEND, GRIP
-
391318-06040-00 BOLTBOLT
-
48FS-23829-00-00 STRAP, STRGSTRAP, STRG
-
592014-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
68GE-2381B-00-00 JOINTJOINT
-
792014-08070-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
890176-08068-00 NUT, CROWNNUT, CROWN
-
98GF-2381T-10-00 BRKT 20BRKT 20
-
1092014-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
118FA-23813-01-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
128GF-26144-00-00 COVER, HANDLEBAR LOWER 1COVER, HANDLEBAR LOWER 1
-
133SP-23441-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
1495814-08035-00 BOLT, FLANGEBOLT, FLANGE
-
158FA-23811-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
168FA-23818-00-00 COVER, STEERINGCOVER, STEERING
-
178FA-23873-00-00 BEARING, STEERING UPPERBEARING, STEERING UPPER
-
1890105-10728-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1995607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2090105-08552-00 BOLT, FLANGEBOLT, FLANGE
-
2195607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2290468-12006-00 CLIPCLIP
-
238FA-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
248FA-23812-00-00 BEARING, STEERINGBEARING, STEERING
-
258FA-23867-00-00 HOLDER 2HOLDER 2
-
268CJ-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
2795317-08600-00 NUTNUT
-
281UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
2990387-09006-00 COLLARCOLLAR
-
308FA-23843-00-00 WASHER, PLAINWASHER, PLAIN
-
318FA-23828-00-00 ROD, STEERINGROD, STEERING
-
328CR-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
338CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
3495307-10700-00 NUTNUT
-
3590170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
368FA-23821-00-00 ROD, STEERING RELAYROD, STEERING RELAY
-
378FG-2389K-00-00 ARM PIVOT ASSYARM PIVOT ASSY
-
3890383-17001-00 ...BUSH, FORMED...BUSH, FORMED
-
398FA-2389M-00-00 ARM PIVOT ASSY. , 2ARM PIVOT ASSY. , 2
-
4093317-41785-00 ...BEARING...BEARING
-
4190381-14001-00 BUSH, SOLIDBUSH, SOLID
-
4290105-12017-00 BOLT, FLANGEBOLT, FLANGE
-
438FA-2384N-00-00 CLIP, RINGCLIP, RING
-
448FA-2412G-00-00 COLLARCOLLAR
-
4590201-121U3-00 WASHER, PLATEWASHER, PLATE
-
468FU-23826-00-00 ARM, IDLERARM, IDLER
-
4790102-10044-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
4890387-10008-00 COLLARCOLLAR
-
4990201-10742-00 WASHER, PLATEWASHER, PLATE
-
508FW-23831-00-00 ROD, TIEROD, TIE
-
518CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
528FA-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
5395307-10700-00 NUTNUT
-
5490170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
5590102-10044-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
5695707-10300-00 NUT, FLANGENUT, FLANGE
-
5795707-10500-00 NUT, FLANGENUT, FLANGE
-
5891401-20020-00 PIN, COTTERPIN, COTTER
-
5990201-08759-00 WASHER, PLATEWASHER, PLATE
