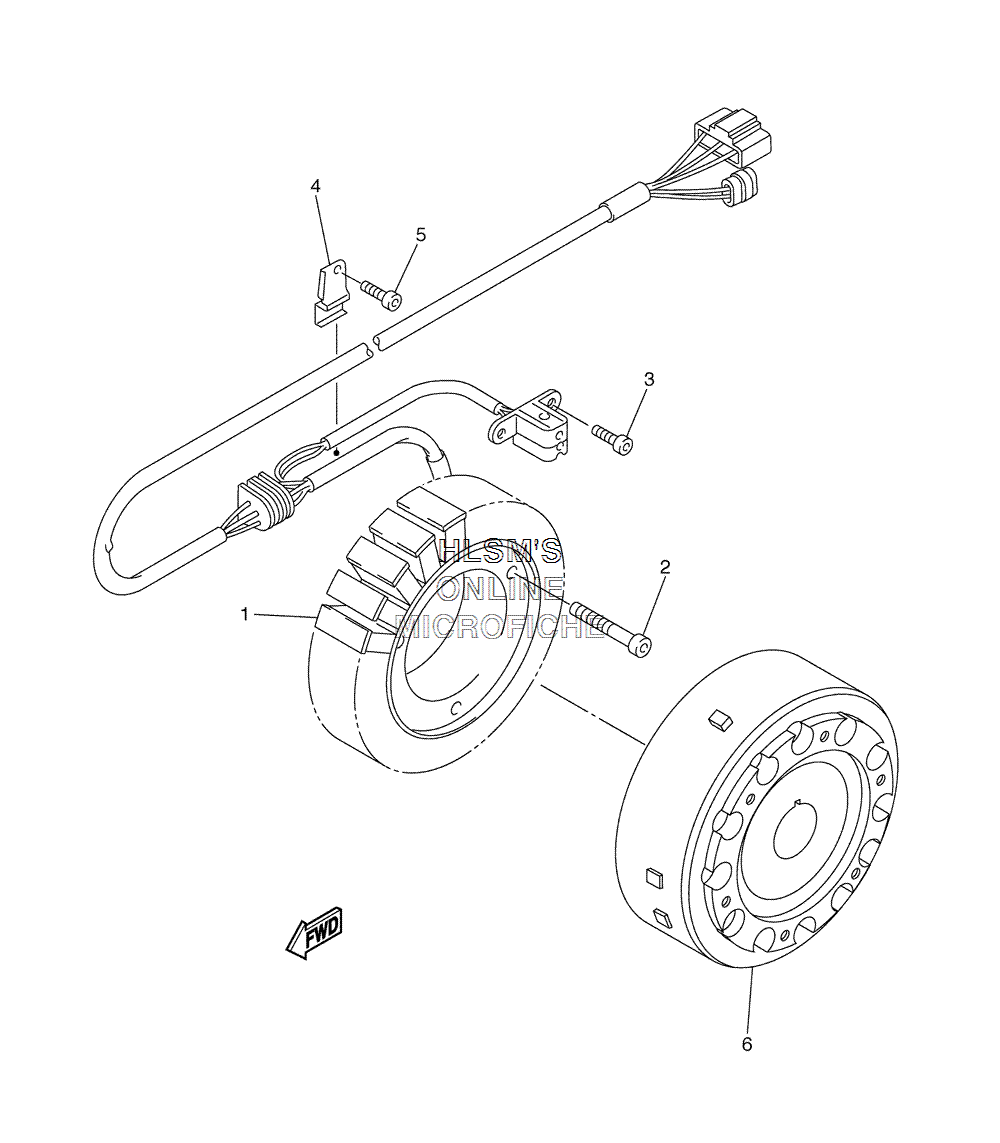

ELECTRICAL - MAGNETO ASSEMBLY для Yamaha NYTRO ER - 2006 года выпуска`
-
№АртикулНазвание
-
18ES-81410-00-00 STATOR ASSYSTATOR ASSY
-
290110-06042-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
390110-05011-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
48FA-15113-00-00 PLATEPLATE
-
590110-06226-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
68ES-81450-01-00 ROTOR ASSYROTOR ASSY
