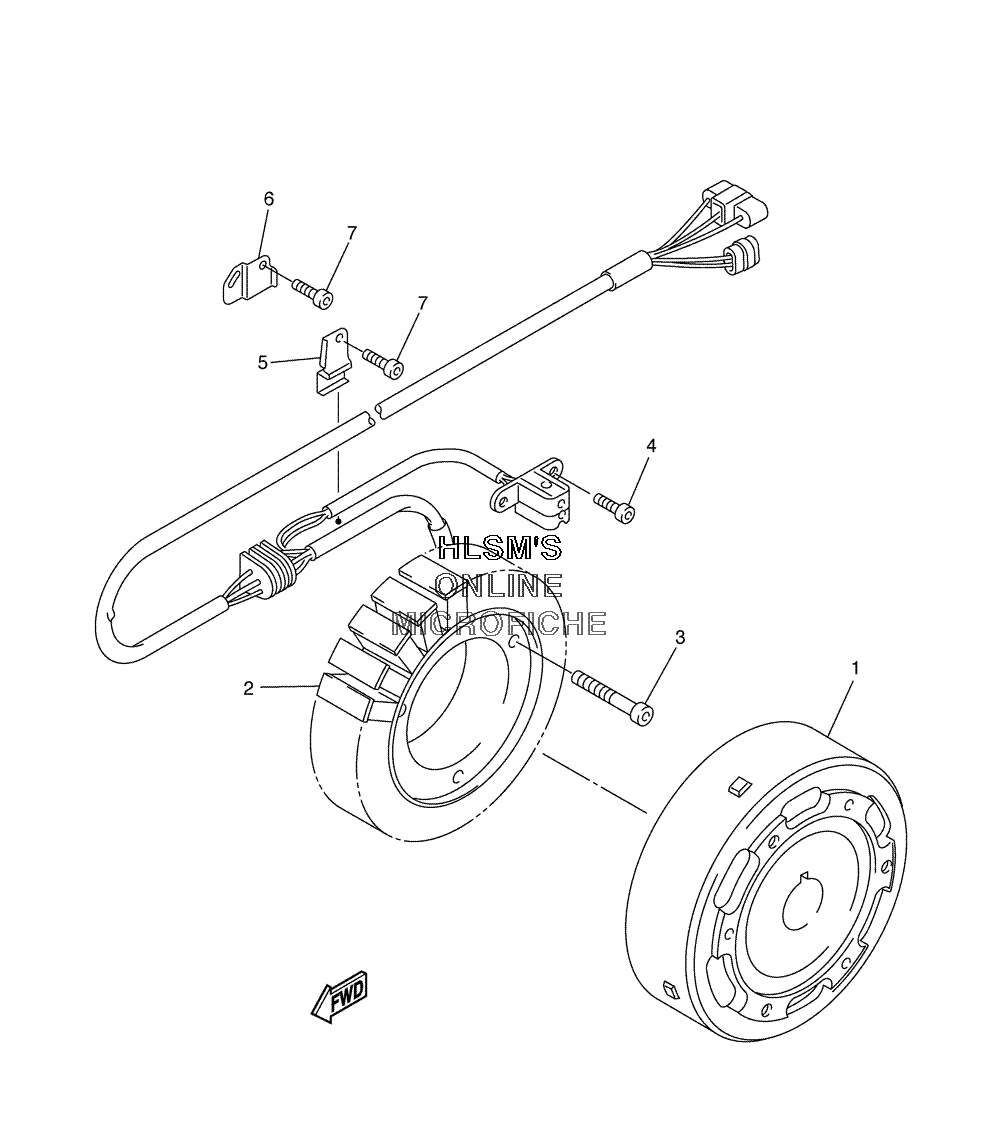

ELECTRICAL - MAGNETO ASSEMBLY для Yamaha RX WARRIOR - 2005 года выпуска`
-
№АртикулНазвание
-
18FA-81450-00-00 ROTOR ASSY.ROTOR ASSY.
-
28FA-81410-00-00 STATOR ASSY.STATOR ASSY.
-
391317-06035-00 BOLTBOLT
-
491317-05016-00 BOLTBOLT
-
58FA-15113-00-00 PLATEPLATE
-
68FG-15191-00-00 PLATEPLATE
-
790110-06226-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
