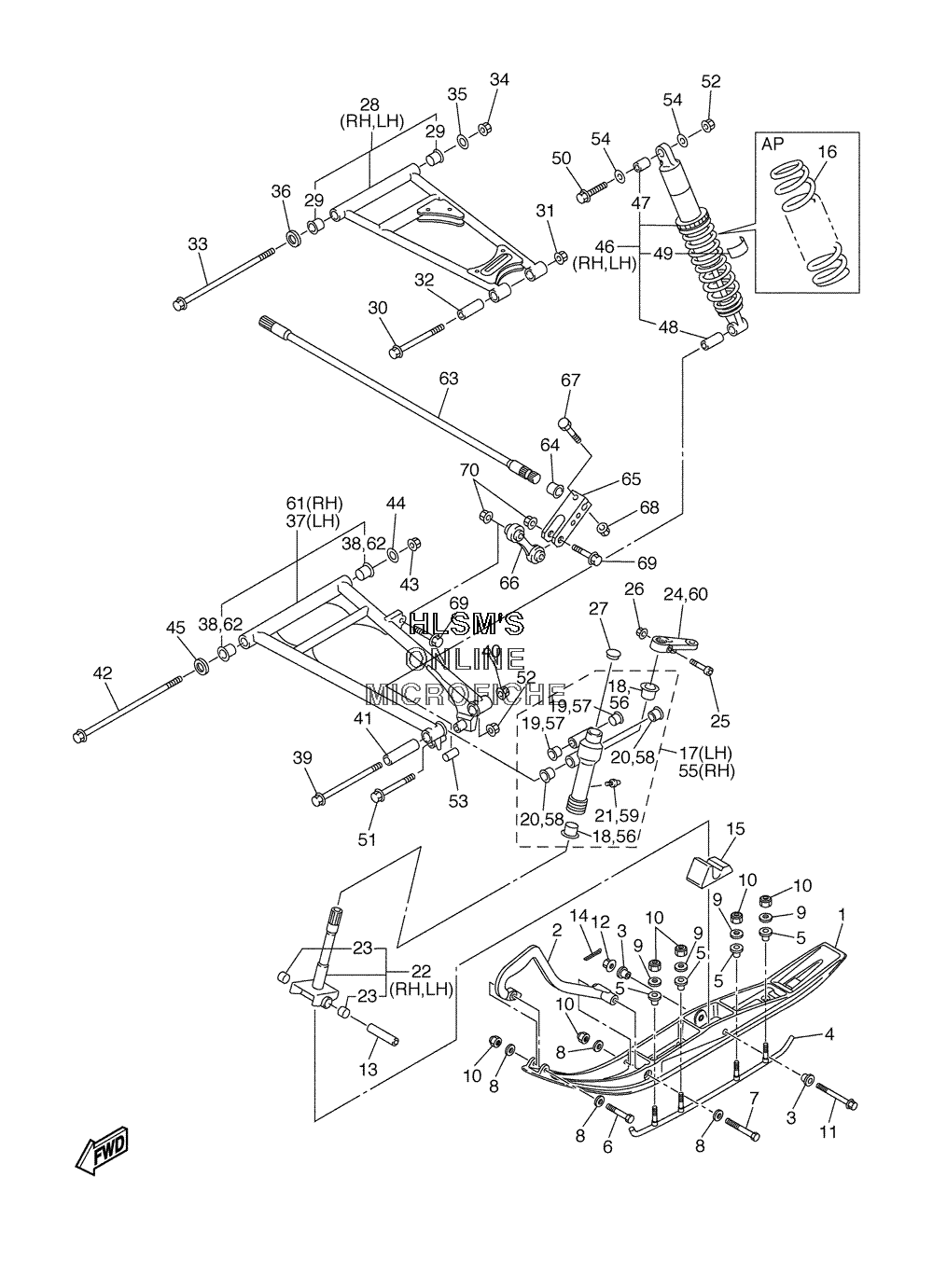

SUSPENSION - FRONT W/ SKI ASSY для Yamaha RX WARRIOR LE - 2005 года выпуска
-
№АртикулНазвание
-
18FE-F3711-00-00 SKI 1SKI 1
-
28EK-F3712-00-00 HANDLE, PLASTIC (BLUE) FOR TEAM YAM. BLUE/WHITEHANDLE, PLASTIC (BLUE) FOR TEAM YAM. BLUE/WHITE
-
28DM-F3712-00-00 HANDLE, PLASTIC FOR CANDY REDHANDLE, PLASTIC FOR CANDY RED
-
28DM-F3712-00-00 HANDLE, PLASTIC FOR MATTE BLACKHANDLE, PLASTIC FOR MATTE BLACK
-
38EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
48EN-F3731-00-00 RUNNER 1RUNNER 1
-
58EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
69702M-08055-00 BOLTBOLT
-
79702M-08100-00 BOLTBOLT
-
890201-08784-00 WASHER, PLATEWASHER, PLATE
-
990201-086P8-00 WASHER, PLATEWASHER, PLATE
-
109570M-08300-00 NUT, NYLONNUT, NYLON
-
1190105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
1295607-10200-00 NUT, U FLANGENUT, U FLANGE
-
1390387-1012H-00 COLLARCOLLAR
-
1491401-20020-00 PIN, COTTERPIN, COTTER
-
158CR-23743-10-00 STOPPER 1STOPPER 1
-
168FA-23760-00-00 SPRING ASSY. 1 (K=21N/MM)SPRING ASSY. 1 (K=21N/MM)
-
168FA-23760-10-00 SPRING ASSY. 1 (K=19N/MM)SPRING ASSY. 1 (K=19N/MM)
-
168FA-23760-20-00 SPRING ASSY. 1 (K=17N/MM)SPRING ASSY. 1 (K=17N/MM)
-
178FA-23501-01-00 STEERING KNUCKLE ASSY. (LEFT) FOR TEAM YAM. BLUE/WHITESTEERING KNUCKLE ASSY. (LEFT) FOR TEAM YAM. BLUE/WHITE
-
178FA-23501-01-00 STEERING KNUCKLE ASSY. (LEFT) FOR MATTE BLACKSTEERING KNUCKLE ASSY. (LEFT) FOR MATTE BLACK
-
178FA-23501-10-00 STEERING KNUCKLE ASSY. (LEFT) FOR CANDY REDSTEERING KNUCKLE ASSY. (LEFT) FOR CANDY RED
-
1890381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
1990381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
2090381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
2193700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
228FG-23803-00-00 COLUMN, SKI ASSY.COLUMN, SKI ASSY.
-
2390384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
248FA-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
2590110-08N53-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2695607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
273YK-22472-40-00 CAP, CASECAP, CASE
-
288FG-23540-00-00 FRONT UPPER ARM COMP. (LEFT) FOR TEAM YAM. BLUE/WHITEFRONT UPPER ARM COMP. (LEFT) FOR TEAM YAM. BLUE/WHITE
-
288FG-23540-10-00 FRONT UPPER ARM COMP. (LEFT) FOR CANDY REDFRONT UPPER ARM COMP. (LEFT) FOR CANDY RED
-
288FG-23540-20-00 FRONT UPPER ARM COMP. (LEFT) FOR MATTE BLACKFRONT UPPER ARM COMP. (LEFT) FOR MATTE BLACK
-
2990381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
3090105-10N56-00 BOLT, FLANGEBOLT, FLANGE
-
3195607-10200-00 NUT, U FLANGENUT, U FLANGE
-
3290387-10N58-00 COLLARCOLLAR
-
3390105-10N54-00 BOLT, FLANGEBOLT, FLANGE
-
3495607-10200-00 NUT, U FLANGENUT, U FLANGE
-
3590201-106F2-00 WASHER, PLATEWASHER, PLATE
-
3690209-15N50-00 WASHERWASHER
-
378FU-23570-00-00 FRONT LOWER ARM COMP. (LEFT) FOR TEAM YAM. BLUE/WHITEFRONT LOWER ARM COMP. (LEFT) FOR TEAM YAM. BLUE/WHITE
-
378FU-23570-10-00 FRONT LOWER ARM COMP. (LEFT) FOR CANDY REDFRONT LOWER ARM COMP. (LEFT) FOR CANDY RED
-
378FU-23570-20-00 FRONT LOWER ARM COMP. (LEFT) FOR MATTE BLACKFRONT LOWER ARM COMP. (LEFT) FOR MATTE BLACK
-
3890381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
3990105-12N54-00 BOLT, FLANGEBOLT, FLANGE
-
4095607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4190387-12N54-00 COLLARCOLLAR
-
4290105-10N55-00 BOLT, FLANGEBOLT, FLANGE
-
4395607-10200-00 NUT, U FLANGENUT, U FLANGE
-
4490201-106F2-00 WASHER, PLATEWASHER, PLATE
-
4590209-15N50-00 WASHERWASHER
-
468FX-2376A-00-00 ABSORBER ASSY. 1 FOR TEAM YAM. BLUE/WHITEABSORBER ASSY. 1 FOR TEAM YAM. BLUE/WHITE
-
468FX-2376A-30-00 ABSORBER ASSY. 1 FOR CANDY REDABSORBER ASSY. 1 FOR CANDY RED
-
468FX-2376A-30-00 ABSORBER ASSY. 1 FOR MATTE BLACKABSORBER ASSY. 1 FOR MATTE BLACK
-
478FA-2331R-00-00 ...DAMPER, BUSH B...DAMPER, BUSH B
-
4890384-15N50-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
494AA-22259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
5090105-10232-00 BOLT, FLANGEBOLT, FLANGE
-
5190105-10392-00 BOLT, FLANGEBOLT, FLANGE
-
5295607-10200-00 NUT, U FLANGENUT, U FLANGE
-
5390387-10N59-00 COLLARCOLLAR
-
5490201-106F2-00 WASHER, PLATEWASHER, PLATE
-
558FA-23502-01-00 STEERING KNUCKLE ASSY. (RIGHT) FOR TEAM YAM. BLUE/WHITESTEERING KNUCKLE ASSY. (RIGHT) FOR TEAM YAM. BLUE/WHITE
-
558FA-23502-01-00 STEERING KNUCKLE ASSY. (RIGHT) FOR MATTE BLACKSTEERING KNUCKLE ASSY. (RIGHT) FOR MATTE BLACK
-
558FA-23502-10-00 STEERING KNUCKLE ASSY. (RIGHT) FOR CANDY REDSTEERING KNUCKLE ASSY. (RIGHT) FOR CANDY RED
-
5690381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
5790381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
5890381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
5993700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
608FA-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
618FU-23580-00-00 FRONT LOWER ARM COMP. (RIGHT) FOR TEAM YAM. BLUE/WHITEFRONT LOWER ARM COMP. (RIGHT) FOR TEAM YAM. BLUE/WHITE
-
618FU-23580-10-00 FRONT LOWER ARM COMP. (RIGHT) FOR CANDY REDFRONT LOWER ARM COMP. (RIGHT) FOR CANDY RED
-
618FU-23580-20-00 FRONT LOWER ARM COMP. (RIGHT) FOR MATTE BLACKFRONT LOWER ARM COMP. (RIGHT) FOR MATTE BLACK
-
6290381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
638FG-2386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
648FG-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
658FG-2386L-00-00 ARM, STABILIZERARM, STABILIZER
-
668ES-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
6790101-06765-00 BOLTBOLT
-
6895604-06200-00 NUT, U FLANGENUT, U FLANGE
-
6995814-08030-00 BOLT, FLANGEBOLT, FLANGE
-
7095604-08200-00 NUT, U FLANGENUT, U FLANGE
