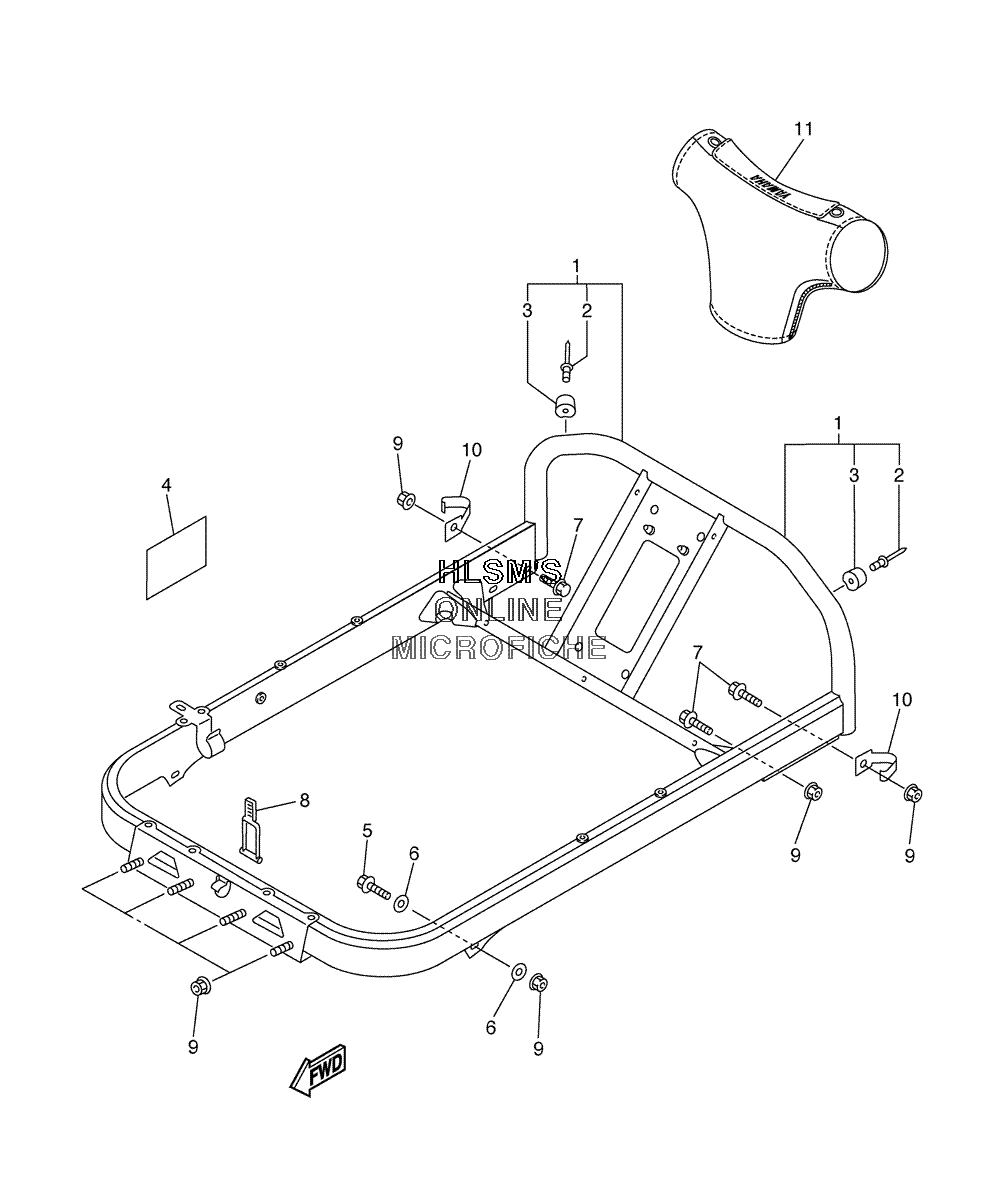

HANDLEBAR PAD W/ STEERING GATE для Yamaha RX-1 MOUNTAIN - 2005 года выпуска`
-
№АртикулНазвание
-
18FA-23870-01-00 STEERING GATE COMP.STEERING GATE COMP.
-
290267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
38FA-23858-00-00 ...DAMPER...DAMPER
-
48FA-2389C-E0-00 LABEL, CAUTIONLABEL, CAUTION
-
590105-081A7-00 BOLT, FLANGEBOLT, FLANGE
-
690201-08326-00 WASHER, PLATEWASHER, PLATE
-
795827-08030-00 BOLT, FLANGEBOLT, FLANGE
-
88FA-2389E-00-00 LATCHLATCH
-
995607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1090462-10022-00 CLAMPCLAMP
-
118FK-23815-00-00 PAD, STEERINGPAD, STEERING
