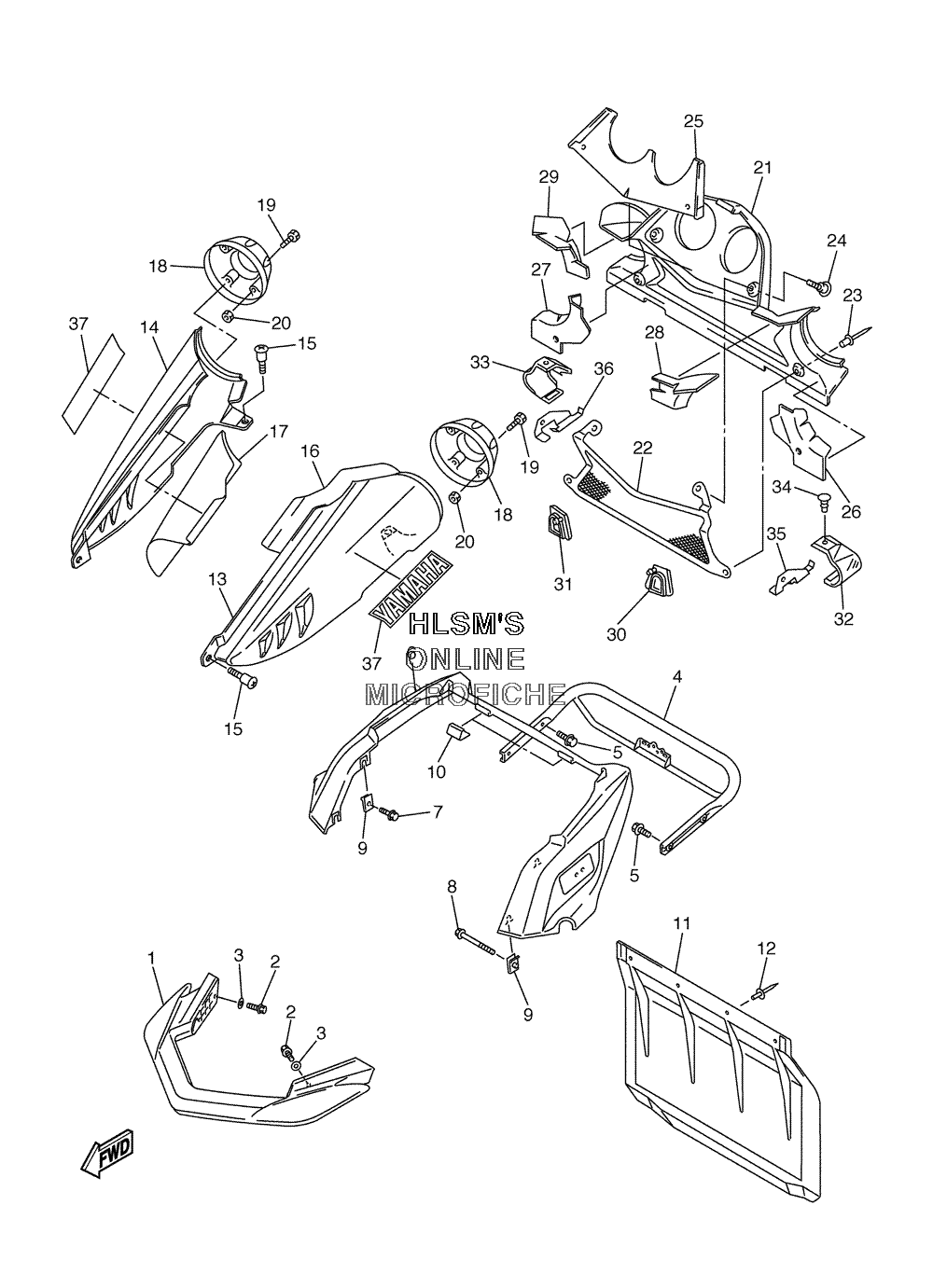

BUMPER - FRONT AND REAR для Yamaha RX-1 MOUNTAIN LE - 2005 года выпуска`
-
№АртикулНазвание
-
18FA-77511-01-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
38FU-77525-00-00 WASHER 1WASHER 1
-
48EP-77541-00-00 BUMPER, REAR 1BUMPER, REAR 1
-
595827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
68EP-77542-00-00 BUMPER, REAR 2BUMPER, REAR 2
-
795807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
890105-06040-00 BOLT, FLANGEBOLT, FLANGE
-
990183-06053-00 NUT, SPRINGNUT, SPRING
-
108FA-7717H-00-00 TAPE 4TAPE 4
-
118ED-K7595-01-00 FLAPFLAP
-
1290267-47187-00 RIVET, BLINDRIVET, BLIND
-
138FA-77551-A0-33 PROTECTOR 1 (BLACK)PROTECTOR 1 (BLACK)
-
148FA-77552-A0-33 PROTECTOR 2 (BLACK)PROTECTOR 2 (BLACK)
-
1590154-06009-00 SCREW, BINDINGSCREW, BINDING
-
168FA-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
178FA-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
188FA-77517-10-00 CAPCAP
-
1991314-06014-00 BOLTBOLT
-
2095307-06600-00 NUTNUT
-
218FA-84516-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
228EP-77553-00-00 PROTECTOR 3PROTECTOR 3
-
2390267-47187-00 RIVET, BLINDRIVET, BLIND
-
2490154-06009-00 SCREW, BINDINGSCREW, BINDING
-
258FA-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
268FA-77264-00-00 LINING, SHROUD 4LINING, SHROUD 4
-
278FA-77265-00-00 LINING, SHROUD 5LINING, SHROUD 5
-
288FA-77266-00-00 LINING, SHROUD 6LINING, SHROUD 6
-
298FA-77267-00-00 LINING, SHROUD 7LINING, SHROUD 7
-
308EP-77431-00-00 GROMMET 1GROMMET 1
-
318EP-77432-00-00 GROMMET 2GROMMET 2
-
328EP-77563-00-00 COVER, 3COVER, 3
-
338EP-77564-00-00 COVER, 4COVER, 4
-
3490338-08220-00 PLUGPLUG
-
358EP-77554-00-00 PROTECTOR 4PROTECTOR 4
-
368EP-77555-00-00 PROTECTOR 5PROTECTOR 5
-
3799241-00160-00 EMBLEM, YAMAHA (RX10MK)EMBLEM, YAMAHA (RX10MK)
-
3799247-00160-00 EMBLEM, YAMAHA (RX10MSK)EMBLEM, YAMAHA (RX10MSK)
