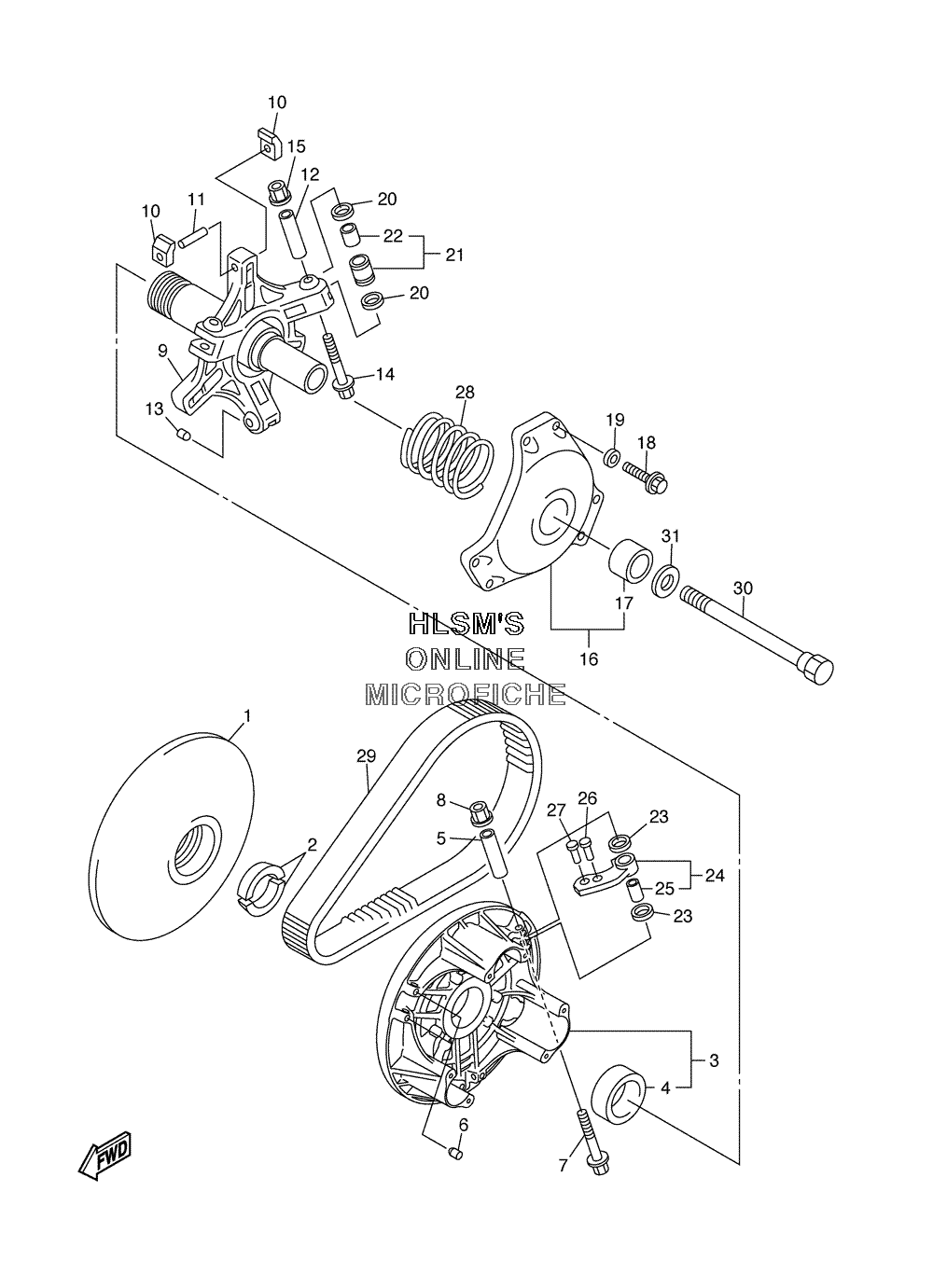

CLUTCH - DRIVE для Yamaha RX-1 ER - 2005 года выпуска`
-
№АртикулНазвание
-
18FA-17611-00-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
28V0-17639-00-00 STOPPERSTOPPER
-
38FA-17620-00-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
490384-41242-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
590387-0514T-00 COLLARCOLLAR
-
690113-05053-00 BOLT, SETBOLT, SET
-
790105-05644-00 BOLT, FLANGEBOLT, FLANGE
-
895607-05200-00 NUT, U FLANGENUT, U FLANGE
-
98FA-17640-00-00 SPIDER COMPLETESPIDER COMPLETE
-
108BW-17653-00-00 SLIDERSLIDER
-
1191609-50032-00 PIN, SPRINGPIN, SPRING
-
1290387-0514U-00 COLLARCOLLAR
-
1390113-05053-00 BOLT, SETBOLT, SET
-
1490105-05644-00 BOLT, FLANGEBOLT, FLANGE
-
1595607-05200-00 NUT, U FLANGENUT, U FLANGE
-
168DF-17630-00-00 PRIMARY SHEAVE CAP COMP.PRIMARY SHEAVE CAP COMP.
-
1790380-28237-00 ...BUSH, SOLID...BUSH, SOLID
-
1897017-06030-00 BOLTBOLT
-
1992907-06600-00 WASHER, PLATEWASHER, PLATE
-
2090202-09227-00 WASHER, PLATEWASHER, PLATE
-
218FG-17624-20-00 ROLLER, COMPROLLER, COMP
-
2290386-09001-00 ...BUSH...BUSH
-
2390202-08204-00 WASHER, PLATEWASHER, PLATE
-
248FA-17605-10-00 WEIGHT COMPWEIGHT COMP
-
2590386-08002-00 ...BUSH...BUSH
-
2690261-06033-00 RIVET, COUNTERSUNK (ST17.2MM) (IN)RIVET, COUNTERSUNK (ST17.2MM) (IN)
-
2790269-06006-00 RIVET (OUT)RIVET (OUT)
-
2890501-582L1-00 SPRING, COMPRESSION (Y-SL-Y)SPRING, COMPRESSION (Y-SL-Y)
-
298DN-17641-00-00 V-BELTV-BELT
-
308V0-17647-00-00 BOLT (L=156.5MM)BOLT (L=156.5MM)
-
3192907-16100-00 WASHERWASHER
