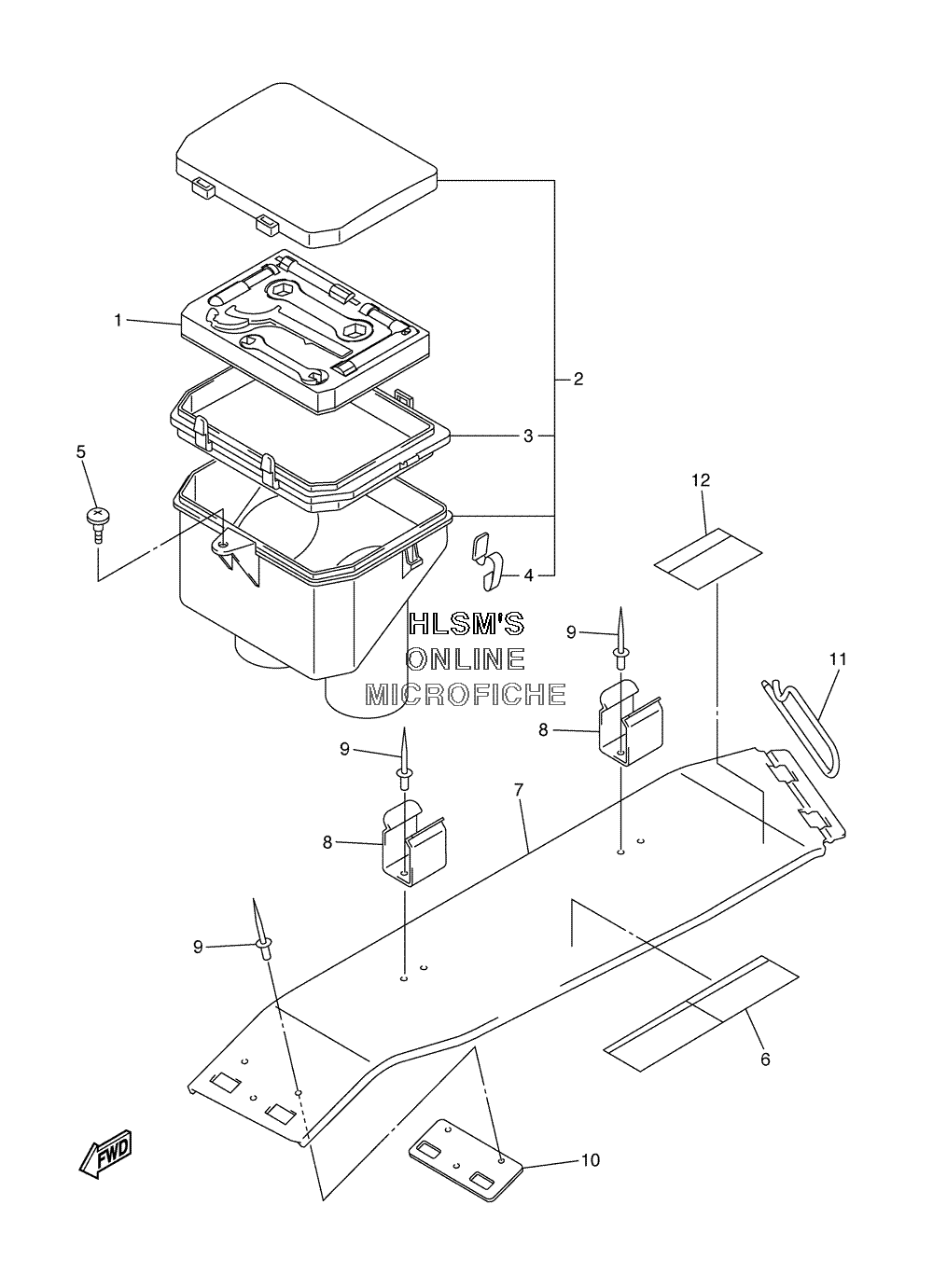

BELT GUARD W/ TOOL BOX для Yamaha RX-1 ER LE - 2005 года выпуска`
-
№АртикулНазвание
-
18FU-28100-00-00 TOOL KITTOOL KIT
-
28FA-77390-00-00 LUGGAGE BOX ASSY.LUGGAGE BOX ASSY.
-
38FA-77381-00-00 ...BOX, TOOL...BOX, TOOL
-
48FA-2814E-00-00 ...HOOK...HOOK
-
590154-06009-00 SCREW, BINDINGSCREW, BINDING
-
68ES-47578-00-00 LABEL 1LABEL 1
-
78FA-77311-01-00 GUARD, DRIVEGUARD, DRIVE
-
88CR-77338-00-00 STAY, BELTSTAY, BELT
-
990267-48010-00 RIVET, BLINDRIVET, BLIND
-
108FA-77373-00-00 PROTECTORPROTECTOR
-
118CR-77384-00-00 PINPIN
-
128BD-77762-00-00 LABEL, WARNING 2LABEL, WARNING 2
