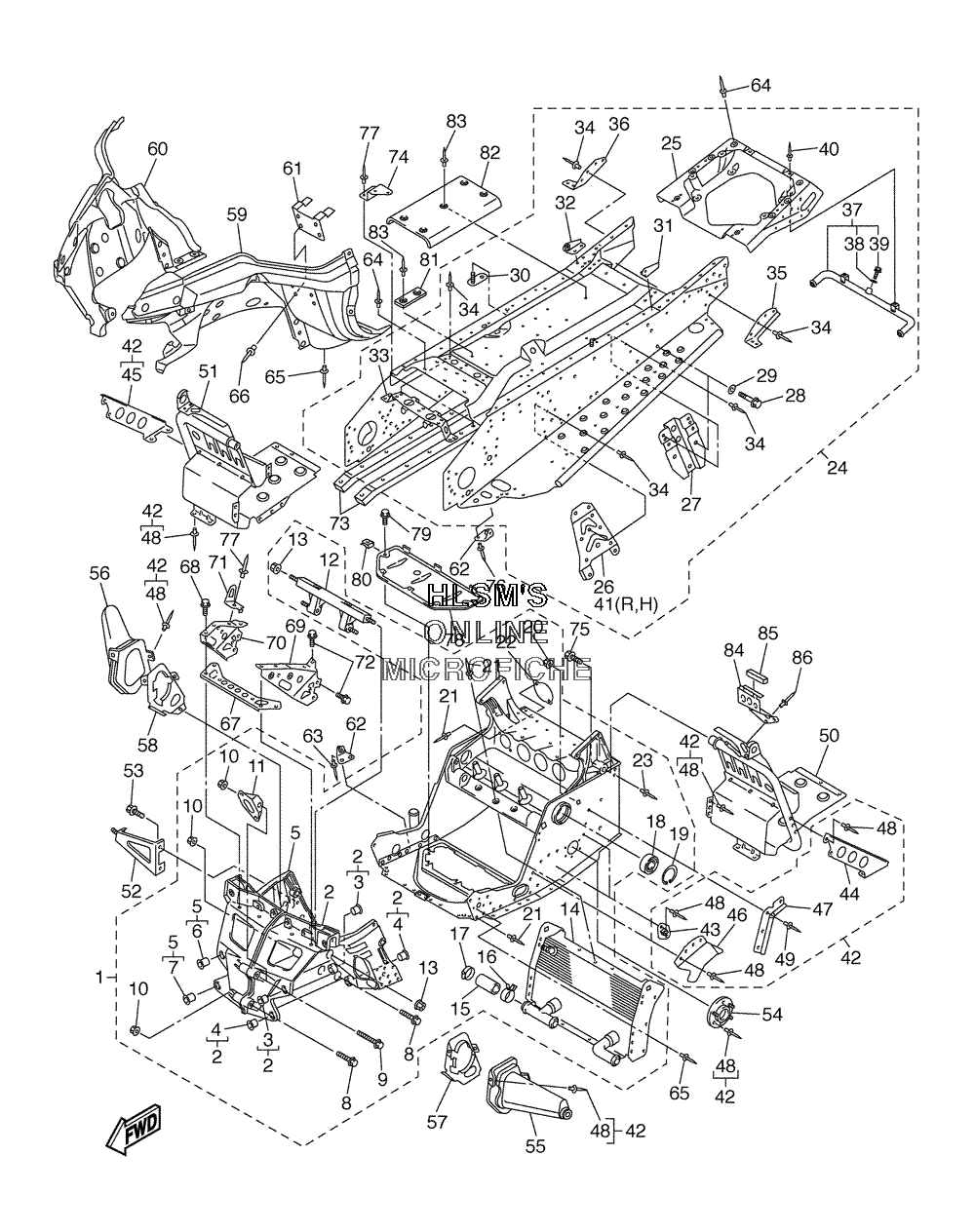

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha RS VECTOR ER - 2005 года выпуска
-
№АртикулНазвание
-
18ES-21940-00-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-10-00 ...BULKHEAD...BULKHEAD
-
390381-15001-00 ......BUSH, SOLID......BUSH, SOLID
-
490381-16001-00 ......BUSH, SOLID......BUSH, SOLID
-
58FA-W2198-10-00 ...BULKHEAD 2...BULKHEAD 2
-
690381-15001-00 ......BUSH, SOLID......BUSH, SOLID
-
790381-16001-00 ......BUSH, SOLID......BUSH, SOLID
-
895827-08060-00 ...BOLT, FLANGE...BOLT, FLANGE
-
995827-08065-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
118FA-2128A-00-00 ...BRACKET, REGULATOR...BRACKET, REGULATOR
-
128FG-21947-00-00 ...BRACKET, STEERING 1...BRACKET, STEERING 1
-
1395607-10200-00 ...NUT, U FLANGE...NUT, U FLANGE
-
148FA-12440-00-00 ...HEAT EXCHANGER ASSY....HEAT EXCHANGER ASSY.
-
158FA-12551-00-00 ...HOSE 7...HOSE 7
-
1690467-28046-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
1790450-35001-00 ...HOSE CLAMP ASSY....HOSE CLAMP ASSY.
-
1893306-20650-00 ...BEARING...BEARING
-
1999009-62500-00 ...CIRCLIP...CIRCLIP
-
2095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
2190267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
228ES-2131D-00-00 ...PLATE, COVER...PLATE, COVER
-
2390267-48016-00 ...RIVET, BLIND...RIVET, BLIND
-
248ES-21950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
258FA-W2199-10-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
268ES-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
278ES-21944-00-00 ...BRACKET, RR. TRACK SUSPENSION...BRACKET, RR. TRACK SUSPENSION
-
2895817-10022-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2990201-100S0-00 ...WASHER, PLATE...WASHER, PLATE
-
308CR-2194N-00-00 ...BRACKET, FUEL TANK 1...BRACKET, FUEL TANK 1
-
318FA-2194X-00-00 ...BRACKET 1...BRACKET 1
-
328FA-2195X-00-00 ...BRACKET 2...BRACKET 2
-
338ES-2194H-00-00 ...PROTECTOR, MUFFLER...PROTECTOR, MUFFLER
-
3490267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
358FA-21963-00-00 ...PATCH 3...PATCH 3
-
368FA-21964-00-00 ...PATCH 4...PATCH 4
-
378FU-1241A-00-00 ...HEAT EXCHANGER ASSY. 4...HEAT EXCHANGER ASSY. 4
-
3890210-06006-00 ......WASHER, SEAL......WASHER, SEAL
-
3995817-06016-00 ......BOLT, FLANGE......BOLT, FLANGE
-
4090267-48095-00 ...RIVET, BLIND...RIVET, BLIND
-
418ES-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
428ES-W2195-00-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
438CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
448ES-2196M-00-00 ...BRACKET, 5...BRACKET, 5
-
458ES-2197M-00-00 ...BRACKET, 6...BRACKET, 6
-
468FU-2198G-00-00 ...COVER 2...COVER 2
-
478FA-21999-00-00 ...CLAMP, WIRE HARNESS...CLAMP, WIRE HARNESS
-
4890267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
4990267-48018-00 ...RIVET, BLIND...RIVET, BLIND
-
508FU-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
518FU-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
528ES-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
5395827-08014-00 BOLT, FLANGEBOLT, FLANGE
-
548EK-21920-01-00 HOUSING, REINF SUB-ASSY. (L.H)HOUSING, REINF SUB-ASSY. (L.H)
-
558FU-2198F-00-00 COVER 1COVER 1
-
568FU-2198J-00-00 COVER 3COVER 3
-
578FU-2195E-00-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
588FU-2195F-00-00 PLATE, STRG BRACKET 2PLATE, STRG BRACKET 2
-
598ES-2196A-00-00 FRAME UNDER 1FRAME UNDER 1
-
608FA-2196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
618FA-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
628FA-2196F-00-00 BRACKET 3BRACKET 3
-
6390267-48083-00 RIVET, BLINDRIVET, BLIND
-
6490267-48169-00 RIVET, BLINDRIVET, BLIND
-
6590267-48018-00 RIVET, BLINDRIVET, BLIND
-
6690267-47200-00 RIVET, BLINDRIVET, BLIND
-
678FA-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
6895827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
698FA-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
708FA-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
718FA-77125-00-00 STAY 1STAY 1
-
7295827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
738FA-21978-01-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
748FA-2197N-00-00 BRACKET 7BRACKET 7
-
7595827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
7690267-48095-00 RIVET, BLINDRIVET, BLIND
-
7790267-47195-00 RIVET, BLINDRIVET, BLIND
-
788FA-2197E-01-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
7990109-065F3-00 BOLTBOLT
-
8090183-06053-00 NUT, SPRINGNUT, SPRING
-
818FA-21998-00-00 SPACERSPACER
-
828FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
8390267-48059-00 RIVET, BLINDRIVET, BLIND
-
848FA-21973-00-00 HOOKHOOK
-
858CR-77319-00-00 DAMPER 1DAMPER 1
-
8690267-47195-00 RIVET, BLINDRIVET, BLIND
