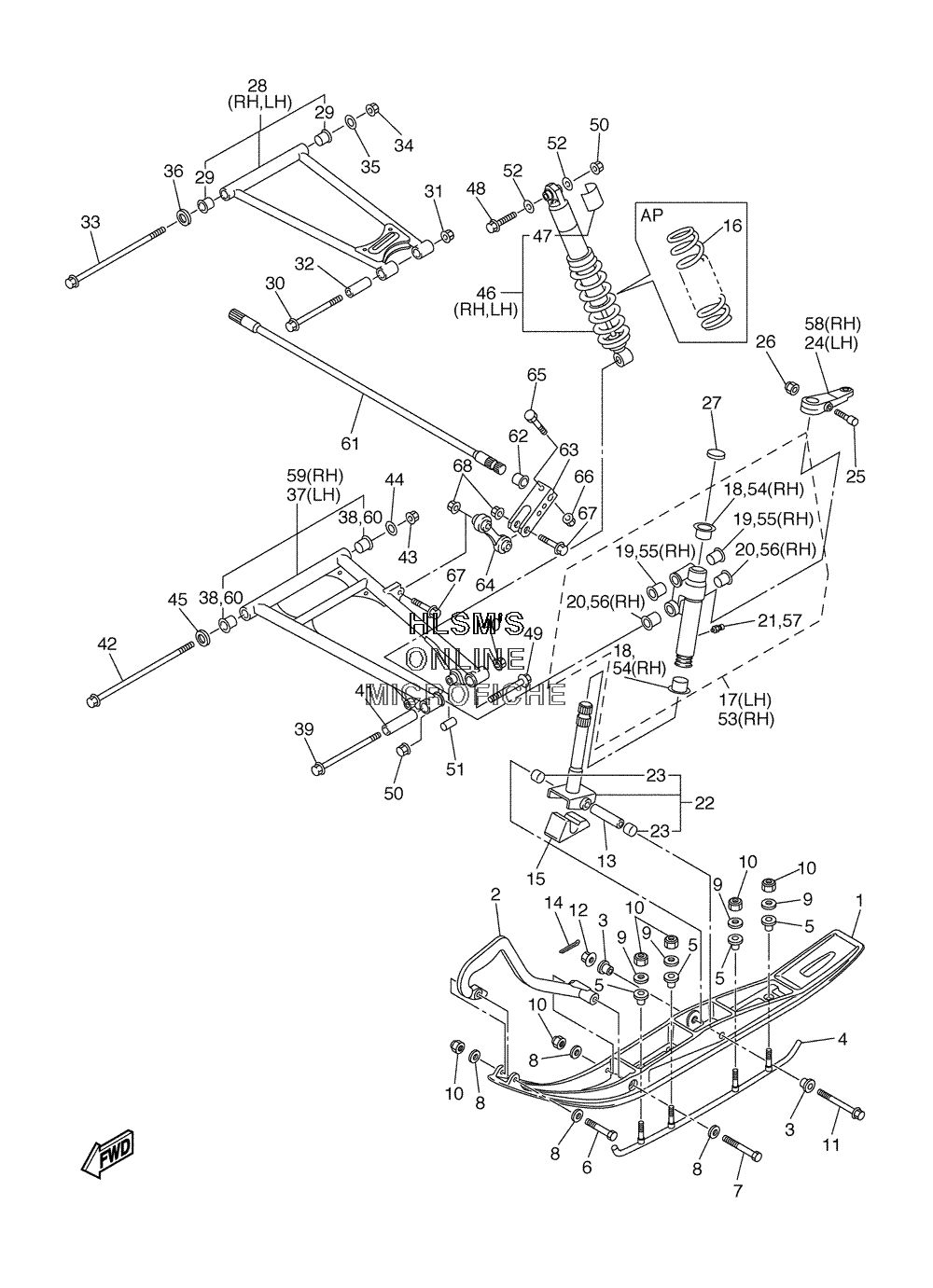

SUSPENSION - FRONT W/ SKI ASSY для Yamaha RS RAGE - 2005 года выпуска`
-
№АртикулНазвание
-
18FE-F3711-00-00 SKI 1SKI 1
-
28EK-F3712-00-00 HANDLE, PLASTIC (BLUE) FOR YAM. BLUE/WHITEHANDLE, PLASTIC (BLUE) FOR YAM. BLUE/WHITE
-
28FB-F3712-00-00 HANDLE, PLASTIC (RED) FOR HEAT RED AND LIQUID SILVERHANDLE, PLASTIC (RED) FOR HEAT RED AND LIQUID SILVER
-
38EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
48EN-F3731-00-00 RUNNER 1RUNNER 1
-
58EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
69702M-08055-00 BOLTBOLT
-
79702M-08100-00 BOLTBOLT
-
890201-08784-00 WASHER, PLATEWASHER, PLATE
-
990201-086P8-00 WASHER, PLATEWASHER, PLATE
-
109570M-08300-00 NUT, NYLONNUT, NYLON
-
1190105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
1295607-10200-00 NUT, U FLANGENUT, U FLANGE
-
1390387-1012H-00 COLLARCOLLAR
-
1491401-20020-00 PIN, COTTERPIN, COTTER
-
158CR-23743-10-00 STOPPER 1STOPPER 1
-
168CX-23760-10-00 SPRING ASSY. 1 (K=23N/MM)SPRING ASSY. 1 (K=23N/MM)
-
178ES-23501-00-00 STEERING KNUCKLE ASSY. (LEFT)STEERING KNUCKLE ASSY. (LEFT)
-
1890381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
1990381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
2090381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
2193700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
228ES-23803-00-00 COLUMN, SKI ASSY.COLUMN, SKI ASSY.
-
2390384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
248FA-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
2590110-08N53-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2695607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
273YK-22472-40-00 CAP, CASECAP, CASE
-
288ES-23540-00-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
2990381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
3090105-10N51-00 BOLT, FLANGEBOLT, FLANGE
-
3195607-10200-00 NUT, U FLANGENUT, U FLANGE
-
3290387-10N58-00 COLLARCOLLAR
-
3390105-10N54-00 BOLT, FLANGEBOLT, FLANGE
-
3495607-10200-00 NUT, U FLANGENUT, U FLANGE
-
3590201-106F2-00 WASHER, PLATEWASHER, PLATE
-
3690209-15N50-00 WASHERWASHER
-
378ES-23570-00-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
3890381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
3990105-12N54-00 BOLT, FLANGEBOLT, FLANGE
-
4095607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4190387-12N54-00 COLLARCOLLAR
-
4290105-10N55-00 BOLT, FLANGEBOLT, FLANGE
-
4395607-10200-00 NUT, U FLANGENUT, U FLANGE
-
4490201-106F2-00 WASHER, PLATEWASHER, PLATE
-
4590209-15N50-00 WASHERWASHER
-
468ES-2376A-00-00 ABSORBER ASSY. 1 FOR YAM. BLUE/WHITEABSORBER ASSY. 1 FOR YAM. BLUE/WHITE
-
468ES-2376A-30-00 ABSORBER ASSY. 1 FOR LIQUID SILVERABSORBER ASSY. 1 FOR LIQUID SILVER
-
474AA-22259-60-00 ...LABEL, WARNING...LABEL, WARNING
-
4890105-10232-00 BOLT, FLANGEBOLT, FLANGE
-
4990105-10392-00 BOLT, FLANGEBOLT, FLANGE
-
5095607-10200-00 NUT, U FLANGENUT, U FLANGE
-
5190387-10N59-00 COLLARCOLLAR
-
5290201-106F2-00 WASHER, PLATEWASHER, PLATE
-
538ES-23502-00-00 STEERING KNUCKLE ASSY. (RIGHT)STEERING KNUCKLE ASSY. (RIGHT)
-
5490381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
5590381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
5690381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
5793700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
588FA-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
598ES-23580-00-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
6090381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
618FA-2386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
628FA-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
638FA-2386L-10-00 ARM, STABILIZERARM, STABILIZER
-
648ES-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
6590101-06765-00 BOLTBOLT
-
6695604-06200-00 NUT, U FLANGENUT, U FLANGE
-
6795814-08030-00 BOLT, FLANGEBOLT, FLANGE
-
6895604-08200-00 NUT, U FLANGENUT, U FLANGE
