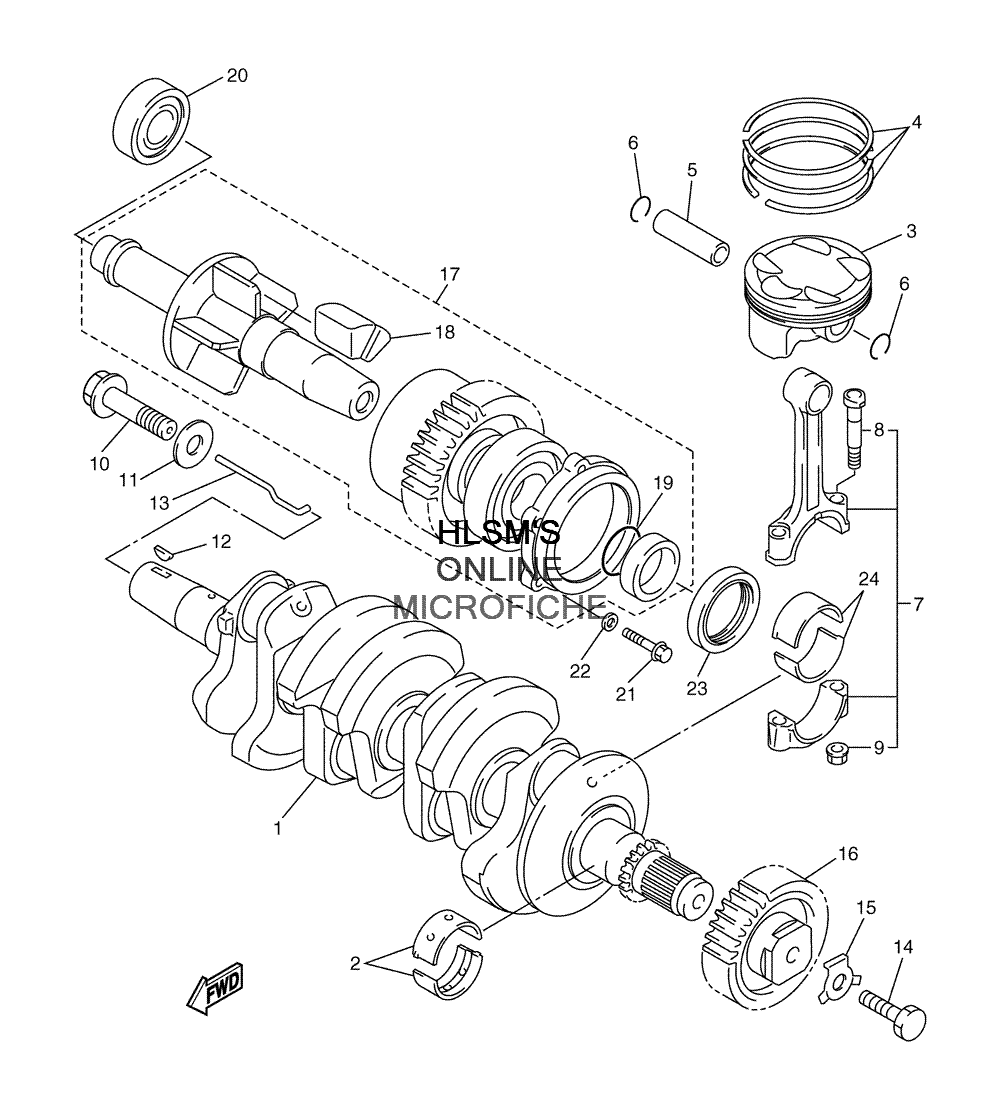

CRANKSHAFT W/ PISTON ASSY для Yamaha RX-1 ER LIMITED EDITION - 2004 года выпуска`
-
№АртикулНазвание
-
18FA-11411-00-00 CRANKSHAFTCRANKSHAFT
-
28FA-11416-B0-00 PLANE BEARING, CRANKSHAFT 1 (PURPLE)PLANE BEARING, CRANKSHAFT 1 (PURPLE)
-
28FA-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (BLUE)PLANE BEARING, CRANKSHAFT 1 (BLUE)
-
28FA-11416-A0-00 PLANE BEARING, CRANKSHAFT 1 (WHITE)PLANE BEARING, CRANKSHAFT 1 (WHITE)
-
28FA-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (BROWN)PLANE BEARING, CRANKSHAFT 1 (BROWN)
-
28FA-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (BLACK)PLANE BEARING, CRANKSHAFT 1 (BLACK)
-
34XV-11631-00-00 PISTON (STD)PISTON (STD)
-
45LV-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
54XV-11633-00-00 PIN, PISTONPIN, PISTON
-
690468-12069-00 CLIPCLIP
-
75PW-11650-00-00 CONNECTING ROD ASSY.CONNECTING ROD ASSY.
-
85JW-11654-00-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
990179-08327-00 ...NUT...NUT
-
1090105-12005-00 BOLT, FLANGEBOLT, FLANGE
-
1190201-121H0-00 WASHER, PLATEWASHER, PLATE
-
1290280-05029-00 KEY, WOODRUFFKEY, WOODRUFF
-
135JW-11455-00-00 SHAFT 1SHAFT 1
-
1490101-10009-00 BOLTBOLT
-
1590215-10001-00 WASHER, LOCKWASHER, LOCK
-
168FA-16111-01-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
178FA-11406-00-00 SHAFT ASSY.SHAFT ASSY.
-
188FA-16155-00-00 ...ABSORBER 1...ABSORBER 1
-
1993210-30660-00 ...O-RING...O-RING
-
2093306-27209-00 BEARINGBEARING
-
2195817-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2290430-06166-00 GASKETGASKET
-
2393102-40009-00 OIL SEALOIL SEAL
-
243GM-11656-00-00 PLANE BEARING, CONNECTING ROD (BLUE)PLANE BEARING, CONNECTING ROD (BLUE)
-
243GM-11656-10-00 PLANE BEARING, CONNECTING ROD (BLACK)PLANE BEARING, CONNECTING ROD (BLACK)
-
243GM-11656-A0-00 PLANE BEARING, CONNECTING ROD (WHITE)PLANE BEARING, CONNECTING ROD (WHITE)
-
243GM-11656-B0-00 PLANE BEARING, CONNECTING ROD (PURPLE)PLANE BEARING, CONNECTING ROD (PURPLE)
