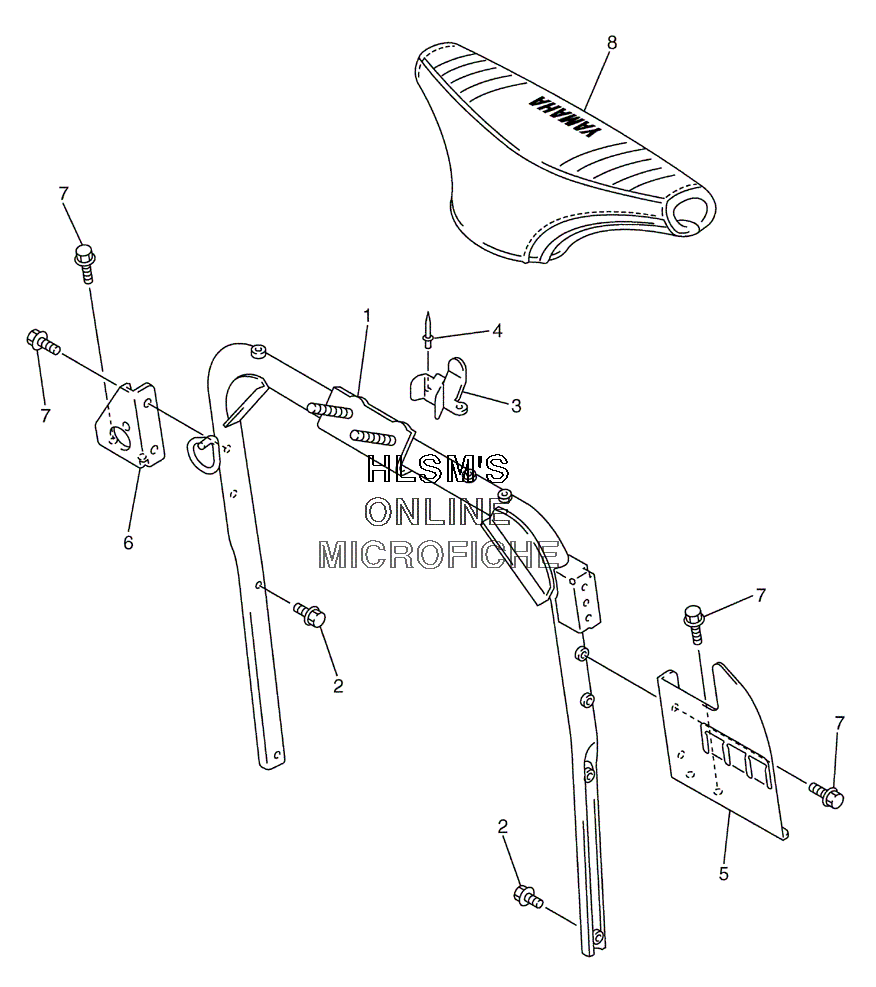

HANDLEBAR PAD W/ STEERING GATE для Yamaha SX VIPER 700 ER - 2003 года выпуска`
-
№АртикулНазвание
-
18EK-23870-00-00 STEERING GATE COMP.STEERING GATE COMP.
-
295827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
38DF-23867-00-00 HOLDER 2HOLDER 2
-
490267-48095-00 RIVET, BLINDRIVET, BLIND
-
58EK-23882-00-00 BRACKET 2BRACKET 2
-
68CR-23881-00-00 BRACKET 1BRACKET 1
-
795827-06016-00 BOLT, FLANGEBOLT, FLANGE
-
88EK-23815-00-00 PAD, STEERING (OPT) (FOR HTR) (RED)PAD, STEERING (OPT) (FOR HTR) (RED)
-
88EK-23815-10-00 PAD, STEERING (OPT) (FOR DPBMC) (DEEP PURPLISH BLUE METALLIC)PAD, STEERING (OPT) (FOR DPBMC) (DEEP PURPLISH BLUE METALLIC)
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CARBURETOR ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- • HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - COLOR CHART
- OIL PUMP ASSY
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - RECOIL
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - SPRING OPTIONS FOR REAR SHOCKS
- SUSPENSION - TORQUE ARM ASSY
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
- WATER PUMP ASSY
