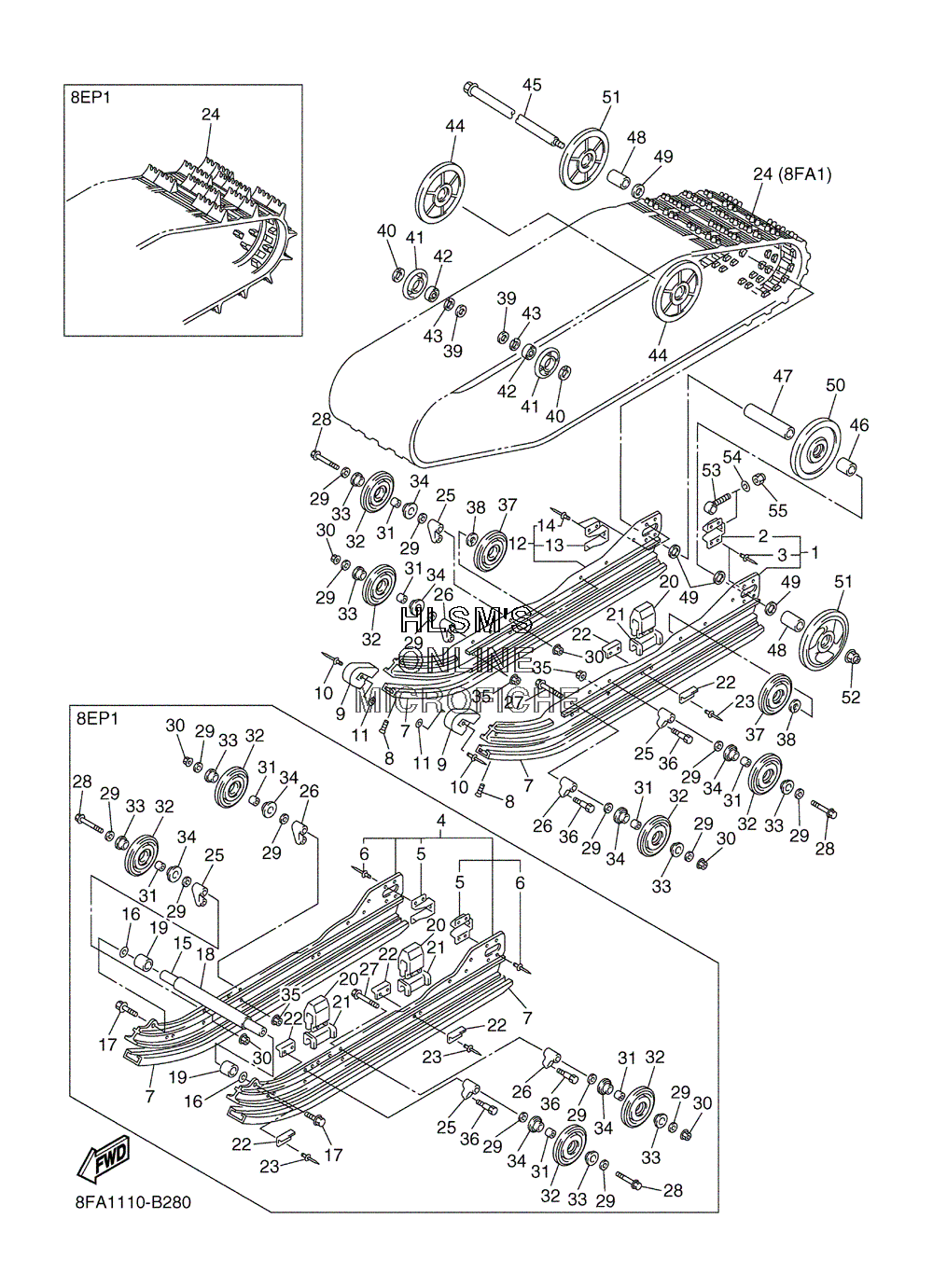

SUSPENSION - IDLER WHEELS W/ TRACK для Yamaha RX-1 - 2003 года выпуска
-
№АртикулНазвание
-
18FA-47411-00-00 FRAME, SLIDING 1FRAME, SLIDING 1
-
28DM-4741B-00-00 ...BRACKET...BRACKET
-
38V0-47468-00-00 ...RIVET...RIVET
-
48EP-W4741-00-00 FRAME, SLIDINGFRAME, SLIDING
-
58DM-4741B-00-00 ...BRACKET...BRACKET
-
68V0-47468-00-00 ...RIVET...RIVET
-
78CM-47421-60-00 RUNNER, SLIDING 1 (RX10H)RUNNER, SLIDING 1 (RX10H)
-
78EP-47421-00-00 RUNNER, SLIDING 1 (RX10RH)RUNNER, SLIDING 1 (RX10RH)
-
890151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
98ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
1090267-48194-00 RIVET, BLINDRIVET, BLIND
-
1190201-047R8-00 WASHER, PLATEWASHER, PLATE
-
128FA-47412-00-00 FRAME, SLIDING 2FRAME, SLIDING 2
-
138DM-4741B-00-00 ...BRACKET...BRACKET
-
148V0-47468-00-00 ...RIVET...RIVET
-
1582M-47485-02-00 SHAFT 3SHAFT 3
-
1690201-10126-00 WASHER, PLATEWASHER, PLATE
-
1790105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
1890387-20002-00 COLLARCOLLAR
-
1990387-20003-00 COLLARCOLLAR
-
208CM-47457-00-00 DAMPER 2DAMPER 2
-
218CM-47341-00-00 SPACERSPACER
-
228AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
2390267-48199-00 RIVET, BLINDRIVET, BLIND
-
248DY-47110-00-00 TRACK ASSY (RX10H)TRACK ASSY (RX10H)
-
248EP-47110-00-00 TRACK ASSY (RX10RH)TRACK ASSY (RX10RH)
-
258DF-47419-00-00 BRACKET 7BRACKET 7
-
268DF-47419-10-00 BRACKET 7BRACKET 7
-
2790105-10392-00 BOLT, FLANGEBOLT, FLANGE
-
2895817-10085-00 BOLT, FLANGEBOLT, FLANGE
-
2990201-100S0-00 WASHER, PLATEWASHER, PLATE
-
3095607-10200-00 NUT, U FLANGENUT, U FLANGE
-
3190387-10079-00 COLLARCOLLAR
-
328CR-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
338CR-47341-01-00 SPACERSPACER
-
348CR-47341-11-00 SPACERSPACER
-
3595607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3690101-08774-00 BOLTBOLT
-
378CR-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
3899009-25400-00 CIRCLIPCIRCLIP
-
3990387-2004V-00 COLLARCOLLAR
-
4099009-20400-00 CIRCLIPCIRCLIP
-
418H8-47320-00-00 SUSPENSION WHEEL COMP.SUSPENSION WHEEL COMP.
-
4293306-00444-00 BEARINGBEARING
-
4399009-42500-00 CIRCLIPCIRCLIP
-
448CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
458L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
4690387-2012E-00 COLLARCOLLAR
-
4790387-2012C-00 COLLARCOLLAR
-
4890387-2012D-00 COLLARCOLLAR
-
4990201-205R6-00 WASHER, PLATEWASHER, PLATE
-
508CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
518EK-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
5295607-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
538DM-47479-00-00 COLLAR 3COLLAR 3
-
5492907-10600-00 WASHER, PLATEWASHER, PLATE
-
5595707-10300-00 NUT, FLANGENUT, FLANGE
