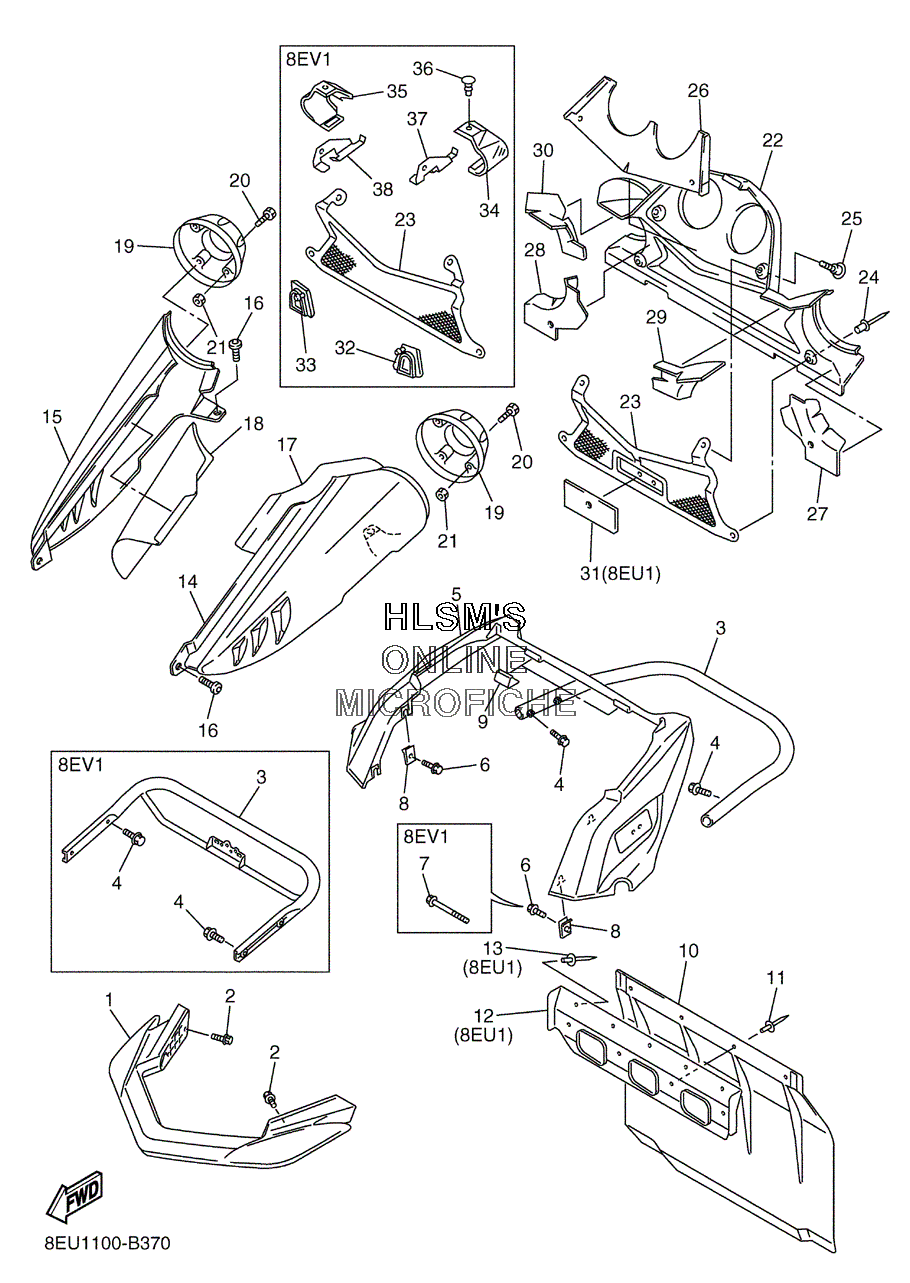

BUMPER - FRONT AND REAR для Yamaha RX-1 MOUNTAIN LE - 2003 года выпуска`
-
№АртикулНазвание
-
18FA-77511-00-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295807-08016-00 BOLT, FLANGEBOLT, FLANGE
-
38FA-77541-00-00 BUMPER, REAR 1 (RX10SH)BUMPER, REAR 1 (RX10SH)
-
38EP-77541-00-00 BUMPER, REAR 1 (RX10MSH)BUMPER, REAR 1 (RX10MSH)
-
495827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
58FA-77542-00-00 BUMPER, REAR 2 (RX10SH)BUMPER, REAR 2 (RX10SH)
-
58EP-77542-00-00 BUMPER, REAR 2 (RX10MSH)BUMPER, REAR 2 (RX10MSH)
-
695807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
790105-06040-00 BOLT, FLANGE (RX10MSH)BOLT, FLANGE (RX10MSH)
-
890183-06053-00 NUT, SPRINGNUT, SPRING
-
98FA-7717H-00-00 TAPE 4TAPE 4
-
108ED-K7595-00-00 FLAPFLAP
-
1190267-47187-00 RIVET, BLINDRIVET, BLIND
-
128FA-77596-00-00 STOPPER, FLAP (RX10SH)STOPPER, FLAP (RX10SH)
-
1390267-48095-00 RIVET, BLIND (RX10SH)RIVET, BLIND (RX10SH)
-
148FA-77551-10-00 PROTECTOR 1PROTECTOR 1
-
158FA-77552-10-00 PROTECTOR 2PROTECTOR 2
-
1690149-06263-00 SCREWSCREW
-
178FA-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
188FA-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
198FA-77517-00-00 CAPCAP
-
2091314-06014-00 BOLTBOLT
-
2195307-06600-00 NUTNUT
-
228FA-84516-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
238EU-77553-00-00 PROTECTOR 3 (RX10SH)PROTECTOR 3 (RX10SH)
-
238EV-77553-00-00 PROTECTOR 3 (RX10MSH)PROTECTOR 3 (RX10MSH)
-
2490267-47187-00 RIVET, BLINDRIVET, BLIND
-
2590149-06263-00 SCREWSCREW
-
268FA-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
278FA-77264-00-00 LINING, SHROUD 4LINING, SHROUD 4
-
288FA-77265-00-00 LINING, SHROUD 5LINING, SHROUD 5
-
298FA-77266-00-00 LINING, SHROUD 6LINING, SHROUD 6
-
308FA-77267-00-00 LINING, SHROUD 7LINING, SHROUD 7
-
318FA-77268-00-00 LINING, SHROUD 8LINING, SHROUD 8
-
328EP-77431-00-00 GROMMET 1 (RX10MSH)GROMMET 1 (RX10MSH)
-
338EP-77432-00-00 GROMMET 2 (RX10MSH)GROMMET 2 (RX10MSH)
-
348EP-77563-00-00 COVER, 3 (RX10MSH)COVER, 3 (RX10MSH)
-
358EP-77564-00-00 COVER, 4 (RX10MSH)COVER, 4 (RX10MSH)
-
3690338-08220-00 PLUG (RX10MSH)PLUG (RX10MSH)
-
378EP-77554-00-00 PROTECTOR 4 (RX10MSH)PROTECTOR 4 (RX10MSH)
-
388EP-77555-00-00 PROTECTOR 5 (RX10MSH)PROTECTOR 5 (RX10MSH)
