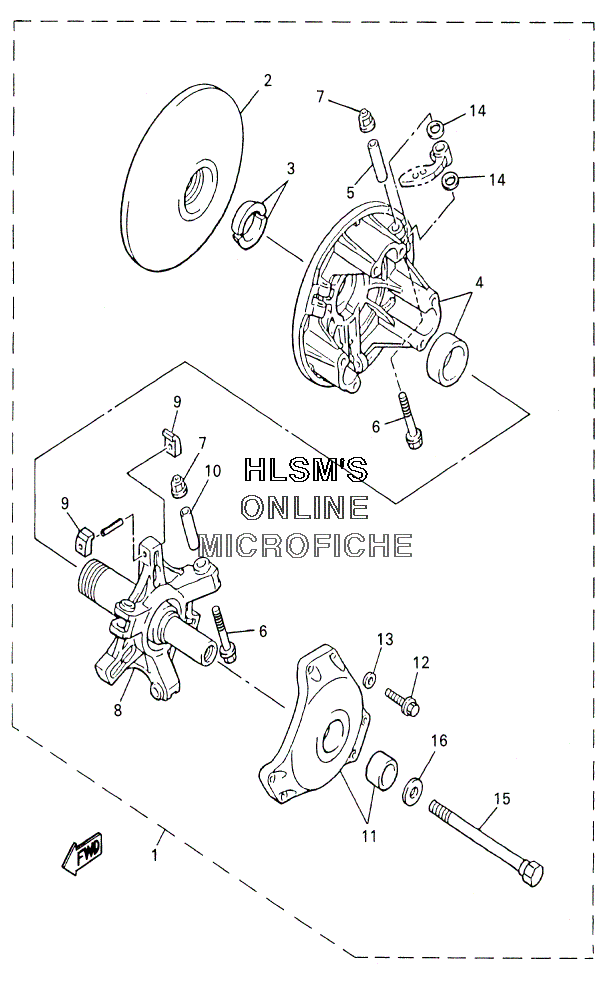

CLUTCH - REPAIR KIT (OPTION) для Yamaha VENTURE 700 - 2002 года выпуска`
-
№АртикулНазвание
-
18DS-17601-09-00 CLUTCH REPAIR KIT (OPT)CLUTCH REPAIR KIT (OPT)
-
28CR-17611-01-00 ....SHEAVE, PRIMARY FIXED....SHEAVE, PRIMARY FIXED
-
38V0-17639-00-00 ....STOPPER....STOPPER
-
48BV-17620-11-00 ....PRIMARY SLIDING SHEAVE COMP.....PRIMARY SLIDING SHEAVE COMP.
-
590387-0514T-00 ....COLLAR....COLLAR
-
690105-05644-00 ....BOLT, FLANGE....BOLT, FLANGE
-
795607-05200-00 ...NUT, U FLANGE...NUT, U FLANGE
-
88CA-17640-12-00 ....SPIDER COMPLETE....SPIDER COMPLETE
-
98BW-17653-00-00 ....SLIDER....SLIDER
-
1090387-0514U-00 ....COLLAR....COLLAR
-
118DF-17630-00-00 ....PRIMARY SHEAVE CAP COMP.....PRIMARY SHEAVE CAP COMP.
-
1297017-06030-00 ...BOLT, HEXAGON...BOLT, HEXAGON
-
1392907-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
1490202-08204-00 ...WASHER, PLATE...WASHER, PLATE
-
158V0-17647-00-00 ....BOLT (L=156.5MM)....BOLT (L=156.5MM)
-
1692907-16100-00 ....WASHER....WASHER
