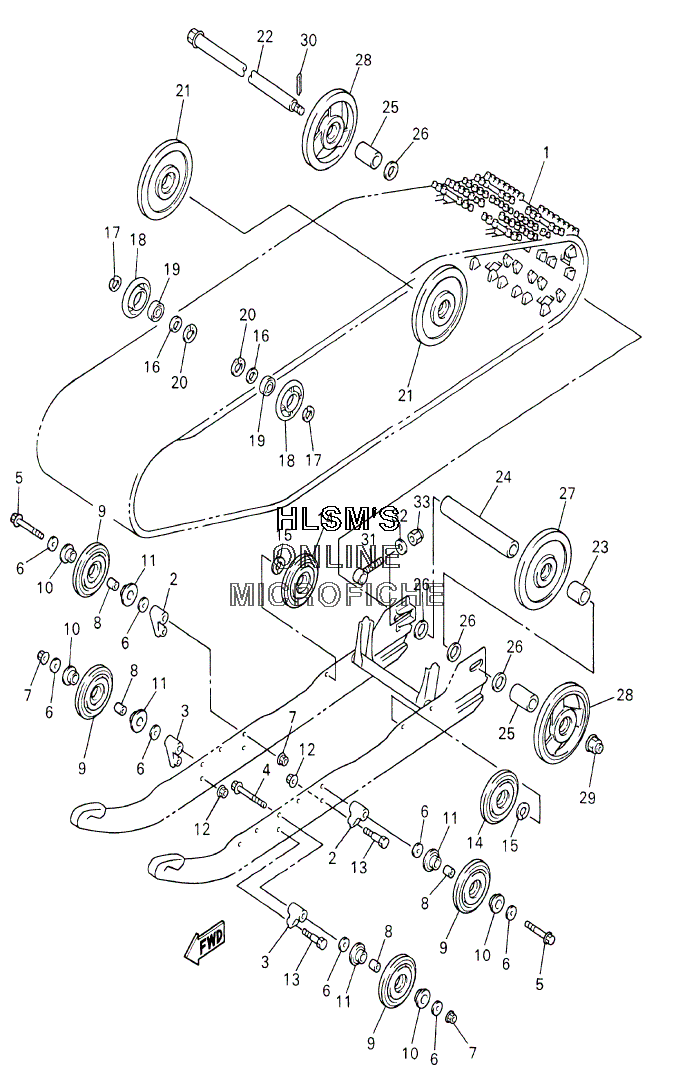

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha V-MAX 700 DELUXE - 2002 года выпуска`
-
№АртикулНазвание
-
18DY-47110-00-00 TRACK ASSYTRACK ASSY
-
28DF-47419-00-00 BRACKET 7BRACKET 7
-
38DF-47419-10-00 BRACKET 7BRACKET 7
-
490105-10392-00 BOLT, FLANGEBOLT, FLANGE
-
595817-10085-00 BOLT, FLANGEBOLT, FLANGE
-
690201-100S0-00 WASHER, PLATEWASHER, PLATE
-
795607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
890387-10079-00 COLLARCOLLAR
-
98CR-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
108CR-47341-01-00 SPACERSPACER
-
118CR-47341-11-00 SPACERSPACER
-
1295607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1390101-08774-00 BOLTBOLT
-
148CR-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
1599009-25400-00 CIRCLIPCIRCLIP
-
1690387-2004V-00 COLLARCOLLAR
-
1799009-20400-00 CIRCLIPCIRCLIP
-
188H8-47320-00-00 SUSPENSION WHEEL COMP.SUSPENSION WHEEL COMP.
-
1993306-00444-00 BEARINGBEARING
-
2099009-42500-00 CIRCLIPCIRCLIP
-
218CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
228L8-47520-02-00 REAR AXLE COMP.REAR AXLE COMP.
-
2390387-2012E-00 COLLARCOLLAR
-
2490387-2012C-00 COLLARCOLLAR
-
2590387-2012D-00 COLLARCOLLAR
-
2690201-205R6-00 WASHER, PLATEWASHER, PLATE
-
278CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
288DF-47550-01-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
2995607-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3091401-30025-00 PIN, COTTERPIN, COTTER
-
318DM-47479-00-00 COLLAR 3COLLAR 3
-
3292907-10600-00 WASHER, PLATEWASHER, PLATE
-
3395707-10300-00 NUT, FLANGENUT, FLANGE
