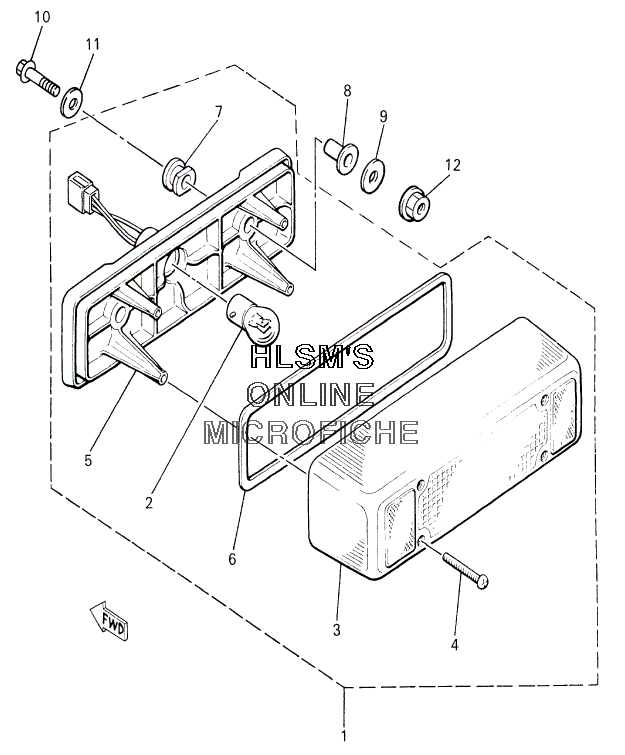

ELECTRICAL - TAILLIGHT ASSY для Yamaha V-MAX 600 DELUXE - 2002 года выпуска`
-
№АртикулНазвание
-
182M-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
2838-84714-01-00 ....BULB (12V-23/8W)....BULB (12V-23/8W)
-
38K4-84721-00-00 ....LENS, TAILLIGHT....LENS, TAILLIGHT
-
497701-40130-00 ....SCREW, PANHEAD TAPPING....SCREW, PANHEAD TAPPING
-
582M-84711-00-00 ....BASE, TAILLIGHT....BASE, TAILLIGHT
-
687M-84723-00-00 ....GASKET, TAIL LENS....GASKET, TAIL LENS
-
78K4-84718-00-00 ....GROMMET....GROMMET
-
890387-066N1-00 COLLARCOLLAR
-
990201-06747-00 WASHER, PLATEWASHER, PLATE
-
1097007-06040-00 BOLTBOLT
-
1190201-06072-00 WASHER, PLATEWASHER, PLATE
-
1295707-06500-00 NUT, FLANGENUT, FLANGE
