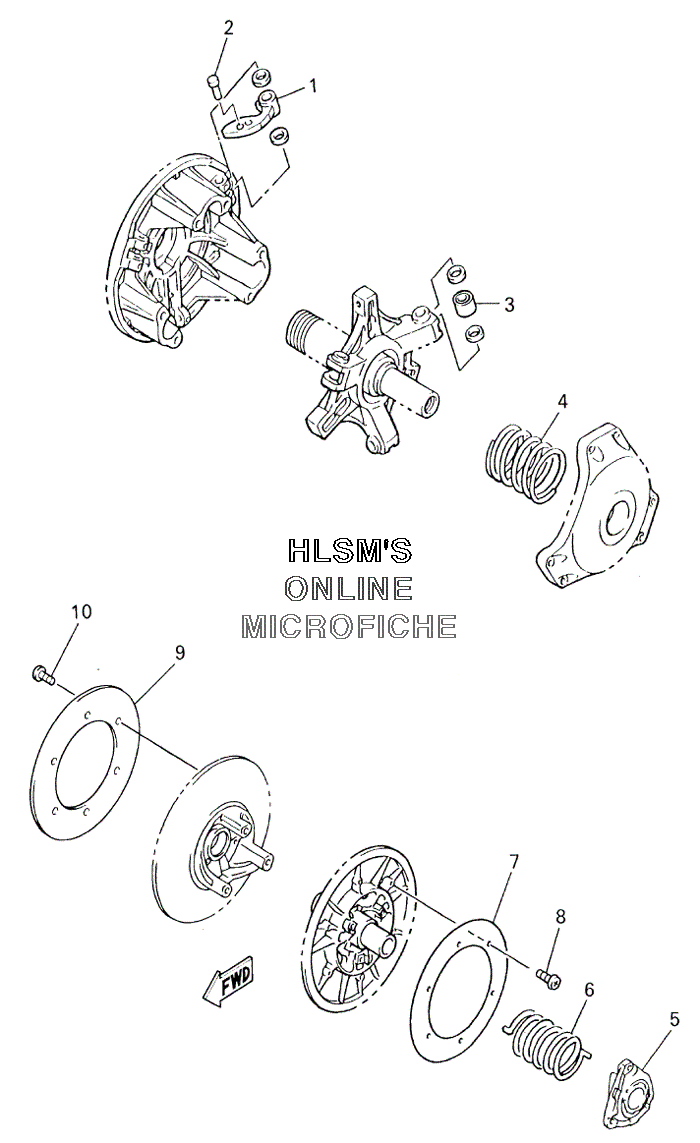

CLUTCH - WEIGHTS AND SPRINGS (OPTION) для Yamaha SX 600 - 2002 года выпуска`
-
№АртикулНазвание
-
18CH-17605-10-00 WEIGHT COMP (OPT)WEIGHT COMP (OPT)
-
18CR-17605-10-00 WEIGHT COMP (OPT)WEIGHT COMP (OPT)
-
18DG-17605-00-00 WEIGHT COMP (OPT)WEIGHT COMP (OPT)
-
18DJ-17605-00-00 WEIGHT COMP (OPT)WEIGHT COMP (OPT)
-
18DN-17605-20-00 WEIGHT COMP (OPT)WEIGHT COMP (OPT)
-
18EK-17605-00-00 WEIGHT COMP (OPT)WEIGHT COMP (OPT)
-
290261-06015-00 RIVET, COUNTERSUNK (ST10.3MM) (OPT)RIVET, COUNTERSUNK (ST10.3MM) (OPT)
-
290261-06017-00 RIVET, COUNTERSUNK (ST11.3MM) (OPT)RIVET, COUNTERSUNK (ST11.3MM) (OPT)
-
290261-06019-00 RIVET, COUNTERSUNK (ST13.3MM) (OPT)RIVET, COUNTERSUNK (ST13.3MM) (OPT)
-
290261-06028-00 RIVET, COUNTERSUNK (AL10.3MM) (OPT)RIVET, COUNTERSUNK (AL10.3MM) (OPT)
-
290261-06033-00 RIVET, COUNTERSUNK (ST17.2MM) (OPT)RIVET, COUNTERSUNK (ST17.2MM) (OPT)
-
290261-06034-00 RIVET, COUNTERSUNK (ST13.9MM) (OPT)RIVET, COUNTERSUNK (ST13.9MM) (OPT)
-
38CR-17624-00-00 ROLLER, COMP (OPT)ROLLER, COMP (OPT)
-
38CR-17624-10-00 ROLLER, COMP (OPT)ROLLER, COMP (OPT)
-
38CR-17624-20-00 ROLLER, COMP (OPT)ROLLER, COMP (OPT)
-
38CR-17624-30-00 ROLLER, COMP (OPT)ROLLER, COMP (OPT)
-
490501-551L3-00 SPRING, COMPRESSION (OPT) (BL-P-BL)SPRING, COMPRESSION (OPT) (BL-P-BL)
-
490501-551L9-00 SPRING, COMPRESSION (OPT) (BL-SL-BL)SPRING, COMPRESSION (OPT) (BL-SL-BL)
-
490501-552L5-00 SPRING, COMPRESSION (OPT) (BL-GR-BL)SPRING, COMPRESSION (OPT) (BL-GR-BL)
-
490501-581L5-00 SPRING, COMPRESSION (OPT) (Y-P-Y)SPRING, COMPRESSION (OPT) (Y-P-Y)
-
490501-581L6-00 SPRING, COMPRESSION (OPT) (GR-P-GR)SPRING, COMPRESSION (OPT) (GR-P-GR)
-
490501-582L1-00 SPRING, COMPRESSION (OPT) (Y-SL-Y)SPRING, COMPRESSION (OPT) (Y-SL-Y)
-
490501-582L2-00 SPRING, COMPRESSION (OPT) (GR-SL-GR)SPRING, COMPRESSION (OPT) (GR-SL-GR)
-
490501-582L6-00 SPRING, COMPRESSION (OPT) (WH-GR-WH)SPRING, COMPRESSION (OPT) (WH-GR-WH)
-
490501-582L7-00 SPRING, COMPRESSION (OPT) (Y-GR-Y)SPRING, COMPRESSION (OPT) (Y-GR-Y)
-
490501-583L0-00 SPRING, COMPRESSION (OPT) (BL-WH-BL)SPRING, COMPRESSION (OPT) (BL-WH-BL)
-
490501-583L1-00 SPRING, COMPRESSION (OPT) (WH-WH-WH)SPRING, COMPRESSION (OPT) (WH-WH-WH)
-
490501-583L4-00 SPRING, COMPRESSION (OPT) (WH-SL-WH)SPRING, COMPRESSION (OPT) (WH-SL-WH)
-
490501-583L5-00 SPRING, COMPRESSION (OPT) (WH-P-WH)SPRING, COMPRESSION (OPT) (WH-P-WH)
-
490501-601L7-00 SPRING, COMPRESSION (OPT) (P-P-P)SPRING, COMPRESSION (OPT) (P-P-P)
-
490501-601L8-00 SPRING, COMPRESSION (OPT) (OR-P-OR)SPRING, COMPRESSION (OPT) (OR-P-OR)
-
490501-602L3-00 SPRING, COMPRESSION (OPT) (P-SL-P)SPRING, COMPRESSION (OPT) (P-SL-P)
-
490501-602L8-00 SPRING, COMPRESSION (OPT) (GR-GR-GR)SPRING, COMPRESSION (OPT) (GR-GR-GR)
-
490501-602L9-00 SPRING, COMPRESSION (OPT) (P-GR-P)SPRING, COMPRESSION (OPT) (P-GR-P)
-
490501-603L2-00 SPRING, COMPRESSION (OPT) (Y-WH-Y)SPRING, COMPRESSION (OPT) (Y-WH-Y)
-
490501-603L3-00 SPRING, COMPRESSION (OPT) (GR-WH-GR)SPRING, COMPRESSION (OPT) (GR-WH-GR)
-
490501-624L8-00 SPRING, COMPRESSION (OPT) (OR-SL-OR)SPRING, COMPRESSION (OPT) (OR-SL-OR)
-
58BV-17604-11-00 SEAT SPRING SET (OPT)SEAT SPRING SET (OPT)
-
58BV-17604-31-00 SEAT SPRING SET (OPT)SEAT SPRING SET (OPT)
-
58BV-17604-51-00 SEAT SPRING SET (OPT)SEAT SPRING SET (OPT)
-
58BV-17604-71-00 SEAT SPRING SET (OPT)SEAT SPRING SET (OPT)
-
58BV-17604-91-00 SEAT SPRING SET (OPT)SEAT SPRING SET (OPT)
-
690508-500B1-00 SPRING, TORSION (OPT) (BROWN)SPRING, TORSION (OPT) (BROWN)
-
690508-536A9-00 SPRING, TORSION (OPT) (RED)SPRING, TORSION (OPT) (RED)
-
690508-556A2-00 SPRING, TORSION (OPT) (GREEN)SPRING, TORSION (OPT) (GREEN)
-
690508-556A7-00 SPRING, TORSION (OPT) (SILVER)SPRING, TORSION (OPT) (SILVER)
-
78CM-17665-00-00 PLATE 1 (OPT)PLATE 1 (OPT)
-
890150-05040-00 SCREW, ROUND HEAD (OPT)SCREW, ROUND HEAD (OPT)
-
98CM-17675-00-00 PLATE 2 (OPT)PLATE 2 (OPT)
-
1090150-05040-00 SCREW, ROUND HEAD (OPT)SCREW, ROUND HEAD (OPT)
