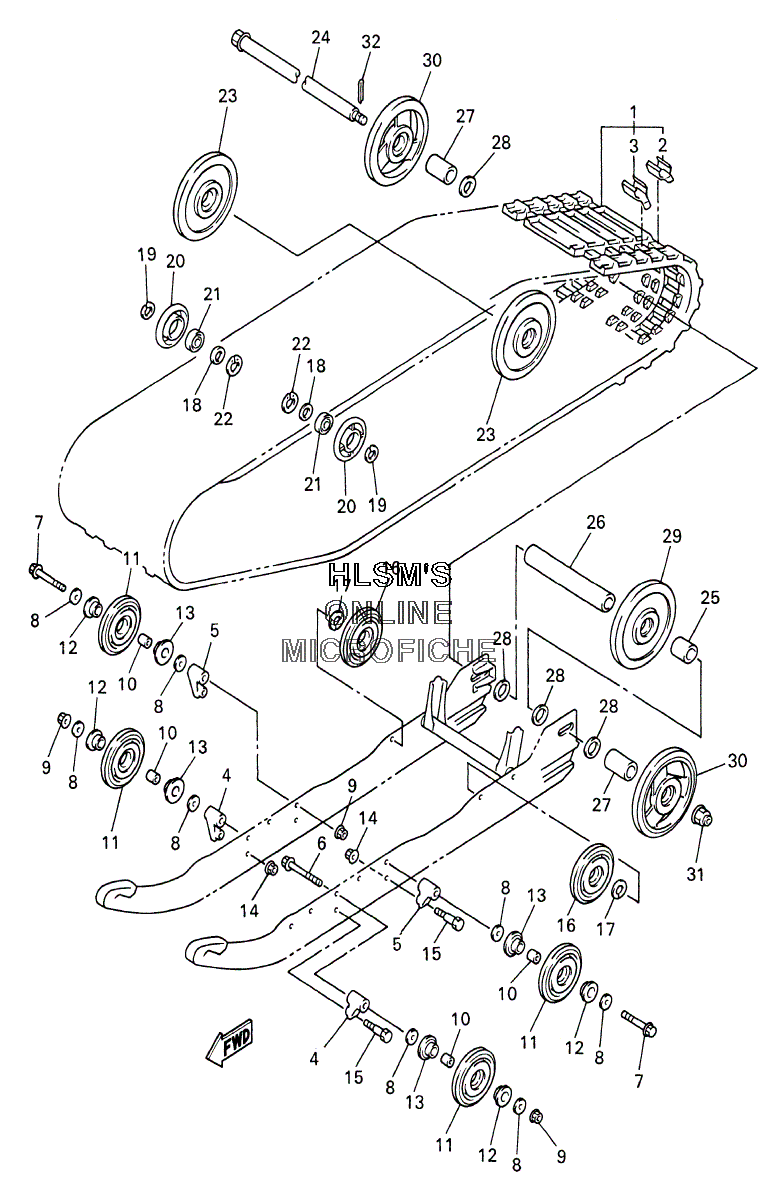

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha MOUNTAIN MAX 600 - 2002 года выпуска`
-
№АртикулНазвание
-
18CC-47110-30-00 TRACK ASSY (OPT)TRACK ASSY (OPT)
-
18ED-47110-01-00 TRACK ASSYTRACK ASSY
-
28CR-47113-00-00 ...PLATE, REINFORCEMENT (OPT)...PLATE, REINFORCEMENT (OPT)
-
28EA-47113-00-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
38CR-47115-00-00 ...METAL, SLIDE (OPT)...METAL, SLIDE (OPT)
-
38EA-47115-30-00 ...METAL, SLIDE...METAL, SLIDE
-
48DF-47419-00-00 BRACKET 7BRACKET 7
-
58DF-47419-10-00 BRACKET 7BRACKET 7
-
690105-10392-00 BOLT, FLANGEBOLT, FLANGE
-
795817-10085-00 BOLT, FLANGEBOLT, FLANGE
-
890201-100S0-00 WASHER, PLATEWASHER, PLATE
-
995607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1090387-10079-00 COLLARCOLLAR
-
118CR-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
128CR-47341-01-00 SPACERSPACER
-
138CR-47341-11-00 SPACERSPACER
-
1495607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1590101-08774-00 BOLTBOLT
-
168CR-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
1799009-25400-00 CIRCLIPCIRCLIP
-
1890387-2004V-00 COLLARCOLLAR
-
1999009-20400-00 CIRCLIPCIRCLIP
-
208H8-47320-00-00 SUSPENSION WHEEL COMP.SUSPENSION WHEEL COMP.
-
2193306-00444-00 BEARING (B6004RS)BEARING (B6004RS)
-
2299009-42500-00 CIRCLIPCIRCLIP
-
238CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
248L8-47520-02-00 REAR AXLE COMP.REAR AXLE COMP.
-
2590387-2012E-00 COLLARCOLLAR
-
2690387-2013L-00 COLLARCOLLAR
-
2790387-2012D-00 COLLARCOLLAR
-
2890201-205R6-00 WASHER, PLATEWASHER, PLATE
-
298CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
308DF-47550-01-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
3195607-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3291401-30025-00 PIN, COTTERPIN, COTTER
