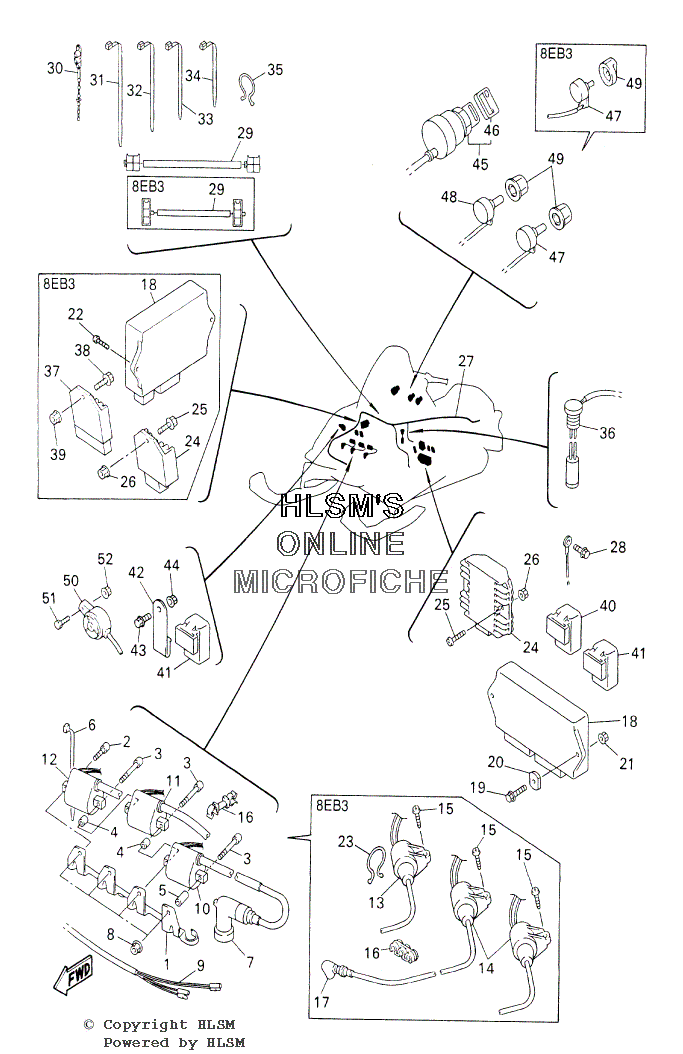

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha VENTURE 600 - 2001 года выпуска
-
№АртикулНазвание
-
18DM-82316-00-00 BRACKET, IGNITION COIL (VT700F)BRACKET, IGNITION COIL (VT700F)
-
291317-06020-00 BOLT (VT700F)BOLT (VT700F)
-
391317-06040-00 BOLT (VT700F)BOLT (VT700F)
-
490387-0714B-00 COLLAR (VT700F)COLLAR (VT700F)
-
590387-07393-00 COLLAR (VT700F)COLLAR (VT700F)
-
690464-15195-00 CLAMP (VT700F)CLAMP (VT700F)
-
78DF-82370-00-00 PLUG CAP ASSY (VT700F)PLUG CAP ASSY (VT700F)
-
895607-06200-00 NUT, SELF U-FLANGE (VT700F)NUT, SELF U-FLANGE (VT700F)
-
98DM-82509-00-00 WIRE, SUB LEAD (VT700F)WIRE, SUB LEAD (VT700F)
-
108DM-82310-10-00 IGNITION COIL ASSY (VT700F)IGNITION COIL ASSY (VT700F)
-
118DF-82310-20-00 IGNITION COIL ASSY (VT700F)IGNITION COIL ASSY (VT700F)
-
128DM-82310-30-00 IGNITION COIL ASSY (VT700F)IGNITION COIL ASSY (VT700F)
-
138DG-82310-00-00 IGNITION COIL ASSY (VT600F)IGNITION COIL ASSY (VT600F)
-
148ED-82310-00-00 IGNITION COIL ASSY (VT600F)IGNITION COIL ASSY (VT600F)
-
1590157-06123-00 SCREW, PAN HEAD (VT600F)SCREW, PAN HEAD (VT600F)
-
1690464-06247-00 CLAMP (VT600F)CLAMP (VT600F)
-
1690464-10002-00 CLAMP (VT700F)CLAMP (VT700F)
-
178DF-82370-00-00 PLUG CAP ASSY (VT600F)PLUG CAP ASSY (VT600F)
-
188DG-85540-00-00 C.D.I. UNIT ASSY (VT600F)C.D.I. UNIT ASSY (VT600F)
-
188DM-85540-00-00 C.D.I. UNIT ASSY (VT700F)C.D.I. UNIT ASSY (VT700F)
-
1995807-06020-00 BOLT, FLANGE (VT700F)BOLT, FLANGE (VT700F)
-
2090179-06264-00 NUT (VT700F)NUT (VT700F)
-
2195707-06500-00 NUT, FLANGE (VT700F)NUT, FLANGE (VT700F)
-
2297707-60125-00 SCREW, TAPPING (VT600F)SCREW, TAPPING (VT600F)
-
2390464-16039-00 CLAMP (VT600F)CLAMP (VT600F)
-
244JH-81960-01-00 RECTIFIER & REGULATOR ASSY (VT700F)RECTIFIER & REGULATOR ASSY (VT700F)
-
248CR-81960-00-00 RECTIFIER & REGULATOR ASSY (VT600F)RECTIFIER & REGULATOR ASSY (VT600F)
-
2595807-06016-00 BOLT, FLANGE (VT600F)BOLT, FLANGE (VT600F)
-
2598507-06025-00 SCREW, PAN HEAD (VT700F)SCREW, PAN HEAD (VT700F)
-
2695707-06500-00 NUT, FLANGE (VT600F)NUT, FLANGE (VT600F)
-
2695707-06500-00 NUT, FLANGE (VT700F)NUT, FLANGE (VT700F)
-
278CH-82590-10-00 WIRE HARNESS ASSY (VT600F)WIRE HARNESS ASSY (VT600F)
-
278DM-82590-00-00 WIRE HARNESS ASSY (VT700F)WIRE HARNESS ASSY (VT700F)
-
2895807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
298CR-8471G-00-00 WIRE, LEAD (VT600F)WIRE, LEAD (VT600F)
-
298DM-8471G-00-00 WIRE, LEAD (VT700F)WIRE, LEAD (VT700F)
-
3090464-20031-00 CLAMPCLAMP
-
3190464-12045-00 CLAMP (VT700F)CLAMP (VT700F)
-
3290464-15195-00 CLAMP (VT600F)CLAMP (VT600F)
-
3290464-15195-00 CLAMP (VT700F)CLAMP (VT700F)
-
3390464-13073-00 CLAMP (VT600F)CLAMP (VT600F)
-
3390464-13073-00 CLAMP (VT700F)CLAMP (VT700F)
-
3490464-13077-00 CLAMPCLAMP
-
3590464-23041-00 CLAMP (VT600F)CLAMP (VT600F)
-
368CR-85720-01-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
378AB-81910-00-00 VOLTAGE REGULATOR ASSY (VT600F)VOLTAGE REGULATOR ASSY (VT600F)
-
3895807-06016-00 BOLT, FLANGE (VT600F)BOLT, FLANGE (VT600F)
-
3995707-06500-00 NUT, FLANGE (VT600F)NUT, FLANGE (VT600F)
-
401UY-81950-92-00 RELAY ASSY (VT700F)RELAY ASSY (VT700F)
-
418DM-81950-00-00 RELAY ASSY (VT700F)RELAY ASSY (VT700F)
-
428DM-85152-00-00 BRACKET (VT700F)BRACKET (VT700F)
-
4395807-06012-00 BOLT, FLANGE (VT700F)BOLT, FLANGE (VT700F)
-
4495707-06500-00 NUT, FLANGE (VT700F)NUT, FLANGE (VT700F)
-
458AB-82510-00-00 MAIN SWITCH ASSY (VT600F)MAIN SWITCH ASSY (VT600F)
-
458DM-82510-00-00 MAIN SWITCH ASSY (VT700F)MAIN SWITCH ASSY (VT700F)
-
46526-82579-00-00 ...CAP, KEY...CAP, KEY
-
478CR-87283-00-00 RESISTOR, VARIABLE (VT600F)RESISTOR, VARIABLE (VT600F)
-
478DM-87283-00-00 RESISTOR, VARIABLE (VT700F)RESISTOR, VARIABLE (VT700F)
-
488DM-87283-10-00 RESISTOR, VARIABLE (VT700F)RESISTOR, VARIABLE (VT700F)
-
498AB-87284-00-00 KNOB, VARIABLE RESISTOR (VT600F)KNOB, VARIABLE RESISTOR (VT600F)
-
498DM-87284-00-00 KNOB, VARIABLE RESISTOR (VT700F)KNOB, VARIABLE RESISTOR (VT700F)
-
508CW-83383-00-00 BUZZERBUZZER
-
5197007-05020-00 BOLTBOLT
-
5295707-05500-00 NUT, FLANGENUT, FLANGE
