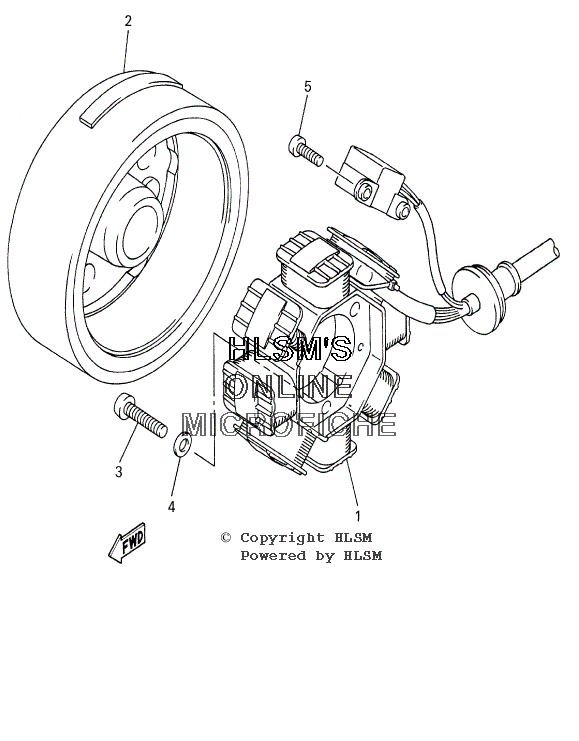

ELECTRICAL - MAGNETO ASSEMBLY для Yamaha VENTURE 500 - 2001 года выпуска`
-
№АртикулНазвание
-
18CR-85510-01-00 STATOR ASSYSTATOR ASSY
-
28CR-85550-01-00 ROTOR ASSYROTOR ASSY
-
398507-06025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
492907-06600-00 WASHER, PLATEWASHER, PLATE
-
598507-05014-00 SCREW, PAN HEADSCREW, PAN HEAD
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMBER
- CARBURETOR ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CLUTCH TUNE-UP KIT
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- • ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FRAME 2 (VENTURE)
- FRONT FRAME COMP. 1
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- OIL PUMP ASSY
- OIL TANK ASSY
- PIVOT ARM W/ SHOCK
- REAR BUMPER SET (VENTURE) (OPT)
- REAR VIEW MIRROR SET
- REFLECTOR ASSY
- SEAT (V-MAX DLX)
- SEAT (VENTURE)
- SEAT ASSY - SEMI-DOUBLE (DX) (V-MAX DLX) (OPT)
- SEAT ASSY - SEMI-DOUBLE (V-MAX DLX) (OPT)
- SEAT ASSY - SINGLE (OPT)
- SPEEDOMETER KIT
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- WATER PUMP ASSY
