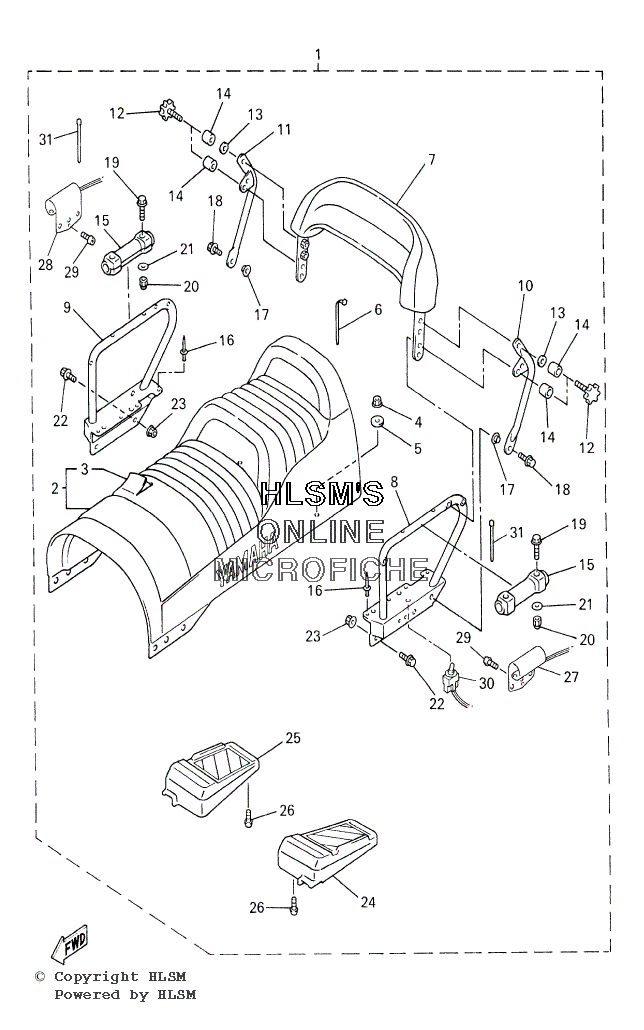

SEAT ASSY - SEMI-DOUBLE (OPT) (VX600DXF) для Yamaha V-MAX 700 DELUXE - 2001 года выпуска`
-
№АртикулНазвание
-
18CY-W2473-20-00 SEMI-DOUBLE SEAT ASSY (OPT) (VX600DXF)SEMI-DOUBLE SEAT ASSY (OPT) (VX600DXF)
-
28CY-24730-20-00 ...DOUBLE SEAT ASSY (VX600DXF)...DOUBLE SEAT ASSY (VX600DXF)
-
38CY-2470F-20-00 ......COVER, SEAT (VX600DXF)......COVER, SEAT (VX600DXF)
-
495707-08300-00 ...NUT, FLANGE (VX600DXF)...NUT, FLANGE (VX600DXF)
-
590201-086A3-00 ...WASHER, PLATE (VX600DXF)...WASHER, PLATE (VX600DXF)
-
690464-13073-00 ...CLAMP (VX600DXF)...CLAMP (VX600DXF)
-
78CW-24790-10-00 ...SEAT BACK ASSY(VX600DXF)...SEAT BACK ASSY(VX600DXF)
-
88CW-2474H-01-00 ...BRACKET, ASSIST GRIP 1 (VX600DXF)...BRACKET, ASSIST GRIP 1 (VX600DXF)
-
98CW-2474J-01-00 ...BRACKET, ASSIST GRIP 2 (VX600DXF)...BRACKET, ASSIST GRIP 2 (VX600DXF)
-
108CW-24797-00-00 ...BRACKET, SEAT BACK (VX600DXF)...BRACKET, SEAT BACK (VX600DXF)
-
118CW-2479L-00-00 ...BRACKET, SEAT (VX600DXF)...BRACKET, SEAT (VX600DXF)
-
128CW-2479H-00-00 ...BODY, SEAT LOCK (VX600DXF)...BODY, SEAT LOCK (VX600DXF)
-
1390201-083A8-00 ...WASHER, PLATE (VX600DXF)...WASHER, PLATE (VX600DXF)
-
148CW-24737-00-00 ...DAMPER, SEAT (VX600DXF)...DAMPER, SEAT (VX600DXF)
-
158CW-2474A-00-00 ...ASSIST, GRIP (VX600DXF)...ASSIST, GRIP (VX600DXF)
-
1690267-47187-00 ...RIVET, BLIND (VX600DXF)...RIVET, BLIND (VX600DXF)
-
1790560-08066-00 ...SPACER (VX600DXF)...SPACER (VX600DXF)
-
1895807-08016-00 ...BOLT, FLANGE (VX600DXF)...BOLT, FLANGE (VX600DXF)
-
1995807-06040-00 ...BOLT, FLANGE (VX600DXF)...BOLT, FLANGE (VX600DXF)
-
2095307-06800-00 ...NUT. (VX600DXF)...NUT. (VX600DXF)
-
2192907-06200-00 ...WASHER (VX600DXF)...WASHER (VX600DXF)
-
2295807-08014-00 ...BOLT, FLANGE (VX600DXF)...BOLT, FLANGE (VX600DXF)
-
2395707-08500-00 ...NUT, FLANGE (VX600DXF)...NUT, FLANGE (VX600DXF)
-
248DM-27431-00-00 ...FOOTREST, REAR 1 (VX600DXF)...FOOTREST, REAR 1 (VX600DXF)
-
258DM-27441-00-00 ...FOOTREST, REAR 2 (VX600DXF)...FOOTREST, REAR 2 (VX600DXF)
-
2697707-50020-00 ...SCREW, T(OPT)PING (VX600DXF)...SCREW, T(OPT)PING (VX600DXF)
-
278CW-2474B-00-00 ...ASSIST GRIP WARMER ASSY 1 (VX600DXF)...ASSIST GRIP WARMER ASSY 1 (VX600DXF)
-
288CW-2474C-00-00 ...ASSIST GRIP WARMER ASSY 2 (VX600DXF)...ASSIST GRIP WARMER ASSY 2 (VX600DXF)
-
2997707-50016-00 ...SCREW, T(OPT)PING (VX600DXF)...SCREW, T(OPT)PING (VX600DXF)
-
308CY-82917-00-00 ...SWITCH (VX600DXF)...SWITCH (VX600DXF)
-
3190464-13073-00 ...CLAMP (VX600DXF)...CLAMP (VX600DXF)
