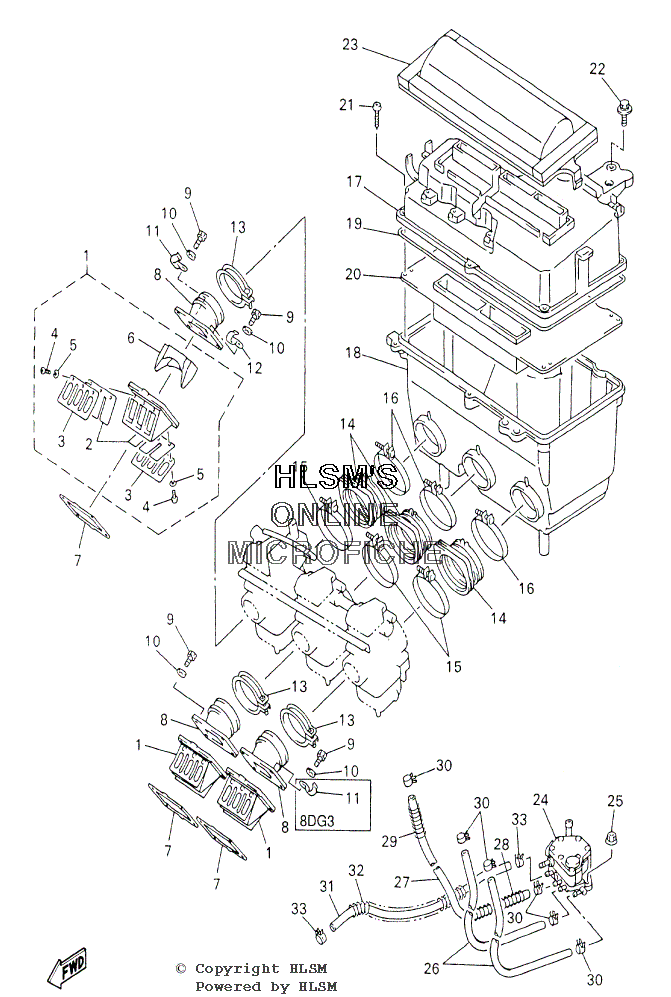

INTAKE W/ AIR BOX ASSY - FUEL PUMP для Yamaha V-MAX 600 DELUXE - 2001 года выпуска`
-
№АртикулНазвание
-
14DA-13610-00-00 REED VALVE ASSYREED VALVE ASSY
-
23SP-13613-00-00 ...REED, VALVE...REED, VALVE
-
34DA-13616-00-00 ...STOPPER, REED VALVE...STOPPER, REED VALVE
-
498507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
592907-03100-00 ...WASHER...WASHER
-
64DA-13625-00-00 ...SPACER, REED VALVE...SPACER, REED VALVE
-
78CH-13621-01-00 GASKET, VALVE SEATGASKET, VALVE SEAT
-
88CH-13555-00-00 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
997017-06025-00 BOLTBOLT
-
1092907-06600-00 WASHER, PLATEWASHER, PLATE
-
1190462-08239-00 CLAMP (VX700DXF)CLAMP (VX700DXF)
-
1190462-08239-00 CLAMP (VX600DXF)CLAMP (VX600DXF)
-
1290462-08246-00 CLAMP (VX700DXF)CLAMP (VX700DXF)
-
1390460-56073-00 CLAMP, HOSECLAMP, HOSE
-
148CH-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
1590450-53061-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1690460-68230-00 CLAMP, HOSECLAMP, HOSE
-
178CH-14431-01-00 SILENCER, INTAKE 1 (VX600DXF)SILENCER, INTAKE 1 (VX600DXF)
-
178CH-14431-10-00 SILENCER, INTAKE 1(VX700DXF)SILENCER, INTAKE 1(VX700DXF)
-
188CH-14441-01-00 SILENCER, INTAKE 2SILENCER, INTAKE 2
-
198CH-14452-00-00 SEALSEAL
-
208CH-14477-00-00 PLATEPLATE
-
2190167-05043-00 SCREW, T(OPT)PINGSCREW, T(OPT)PING
-
2290119-06182-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
238CH-14450-00-00 ELEMENT ASSY, AIR CLEANERELEMENT ASSY, AIR CLEANER
-
248CH-24410-00-00 FUEL PUMP ASSYFUEL PUMP ASSY
-
2595707-06500-00 NUT, FLANGENUT, FLANGE
-
2690445-095K1-00 HOSE (L190)HOSE (L190)
-
2790445-093J2-00 HOSE (L340)HOSE (L340)
-
2890501-085L6-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2990501-086L1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3090467-09026-00 CLIPCLIP
-
3190445-11735-00 HOSE (L320)HOSE (L320)
-
3290501-08668-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3390467-11032-00 CLIPCLIP
