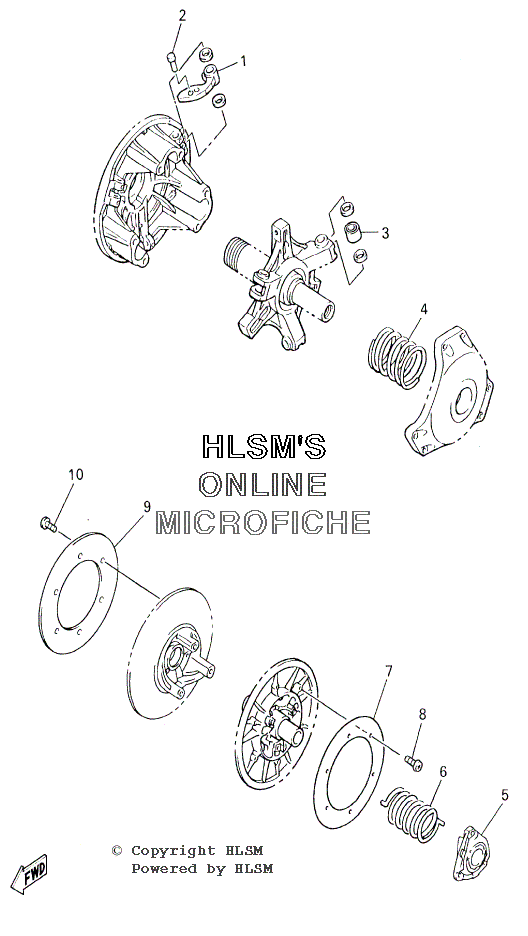

CLUTCH - WEIGHTS AND SPRINGS (OPTION) для Yamaha V-MAX 500 DELUXE - 2001 года выпуска

№

Артикул

Название
1

8CH-17605-10-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)
1

8CR-17605-10-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)
1

8DF-17605-10-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)
1

8DG-17605-00-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)
1

8DJ-17605-00-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)
1

8DN-17605-20-00 WEIGHT COMP (OPT)

WEIGHT COMP (OPT)
2

8CR-17624-00-00 ROLLER, COMP (OPT)

ROLLER, COMP (OPT)
2

8CR-17624-10-00 ROLLER, COMP (OPT)

ROLLER, COMP (OPT)
2

8CR-17624-20-00 ROLLER, COMP (OPT)

ROLLER, COMP (OPT)
2

8CR-17624-30-00 ROLLER, COMP (OPT)

ROLLER, COMP (OPT)
3

90261-06015-00 RIVET, COUNTERSUNK (ST10.3MM) (OPT)

RIVET, COUNTERSUNK (ST10.3MM) (OPT)
3

90261-06017-00 RIVET, COUNTERSUNK (ST11.3MM) (OPT)

RIVET, COUNTERSUNK (ST11.3MM) (OPT)
3

90261-06019-00 RIVET, COUNTERSUNK (ST13.3MM) (OPT)

RIVET, COUNTERSUNK (ST13.3MM) (OPT)
3

90261-06028-00 RIVET, COUNTERSUNK (AL10.3MM) (OPT)

RIVET, COUNTERSUNK (AL10.3MM) (OPT)
3

90261-06033-00 RIVET, COUNTERSUNK (ST17.2MM) (OPT)

RIVET, COUNTERSUNK (ST17.2MM) (OPT)
3

90261-06034-00 RIVET, COUNTERSUNK (ST13.9MM) (OPT)

RIVET, COUNTERSUNK (ST13.9MM) (OPT)
4

90501-481J1-00 SPRING, COMPRESSION (OPT) (SILVER, BLUE, SILVER)

SPRING, COMPRESSION (OPT) (SILVER, BLUE, SILVER)
4

90501-487G8-00 SPRING, COMPRESSION (OPT) (GOLD)

SPRING, COMPRESSION (OPT) (GOLD)
4

90501-507G2-00 SPRING, COMPRESSION (OPT) (GOLD, BLUE, GOLD)

SPRING, COMPRESSION (OPT) (GOLD, BLUE, GOLD)
4

90501-507G7-00 SPRING, COMPRESSION (OPT) (RED, GREEN, RED)

SPRING, COMPRESSION (OPT) (RED, GREEN, RED)
4

90501-521J6-00 SPRING, COMPRESSION (OPT) (GOLD, PINK, GOLD)

SPRING, COMPRESSION (OPT) (GOLD, PINK, GOLD)
4

90501-524G4-00 SPRING, COMPRESSION (OPT) (RED YELLOW, RED)

SPRING, COMPRESSION (OPT) (RED YELLOW, RED)
4

90501-524G5-00 SPRING, COMPRESSION (OPT) (GOLD, YELLOW, GOLD)

SPRING, COMPRESSION (OPT) (GOLD, YELLOW, GOLD)
4

90501-525J8-00 SPRING, COMPRESSION (OPT) (BLUE, PINK, BLUE)

SPRING, COMPRESSION (OPT) (BLUE, PINK, BLUE)
4

90501-526G4-00 SPRING, COMPRESSION (OPT) (BLUE, GOLD, BLUE)

SPRING, COMPRESSION (OPT) (BLUE, GOLD, BLUE)
4

90501-526J9-00 SPRING, COMPRESSION (OPT) (RED, PINK, RED)

SPRING, COMPRESSION (OPT) (RED, PINK, RED)
4

90501-527G1-00 SPRING, COMPRESSION (OPT) (RED, BLUE, RED)

SPRING, COMPRESSION (OPT) (RED, BLUE, RED)
4

90501-550J8-00 SPRING, COMPRESSION (OPT) (WHITE, PINK, WHITE)

SPRING, COMPRESSION (OPT) (WHITE, PINK, WHITE)
4

90501-553G0-00 SPRING, COMPRESSION (OPT) (BLUE, YELLOW, BLUE)

SPRING, COMPRESSION (OPT) (BLUE, YELLOW, BLUE)
4

90501-553G6-00 SPRING, COMPRESSION (OPT) (WHITE, YELLOW, WHITE)

SPRING, COMPRESSION (OPT) (WHITE, YELLOW, WHITE)
4

90501-555J9-00 SPRING, COMPRESSION (OPT) (WHITE, SILVER, WHITE)

SPRING, COMPRESSION (OPT) (WHITE, SILVER, WHITE)
4

90501-556G5-00 SPRING, COMPRESSION (OPT) (WHITE, BLUE, WHITE)

SPRING, COMPRESSION (OPT) (WHITE, BLUE, WHITE)
4

90501-556G6-00 SPRING, COMPRESSION (OPT) (BLUE)

SPRING, COMPRESSION (OPT) (BLUE)
4

90501-556G7-00 SPRING, COMPRESSION (OPT) (YELLOW, BLUE, YELLOW)

SPRING, COMPRESSION (OPT) (YELLOW, BLUE, YELLOW)
4

90501-557G5-00 SPRING, COMPRESSION (OPT) (YELLOW, GOLD, YELLOW)

SPRING, COMPRESSION (OPT) (YELLOW, GOLD, YELLOW)
4

90501-557G6-00 SPRING, COMPRESSION (OPT) (WHITE, GOLD, WHITE)

SPRING, COMPRESSION (OPT) (WHITE, GOLD, WHITE)
4

90501-581J7-00 SPRING, COMPRESSION (OPT) (YELLOW)

SPRING, COMPRESSION (OPT) (YELLOW)
4

90501-582J1-00 SPRING, COMPRESSION (OPT) (YELLOW, PINK, YELLOW)

SPRING, COMPRESSION (OPT) (YELLOW, PINK, YELLOW)
4

90501-585J3-00 SPRING, COMPRESSION (OPT) (GREEN, PINK, GREEN)

SPRING, COMPRESSION (OPT) (GREEN, PINK, GREEN)
4

90501-586J0-00 SPRING, COMPRESSION (OPT) (YELLOW, SILVER, YELLOW)

SPRING, COMPRESSION (OPT) (YELLOW, SILVER, YELLOW)
4

90501-602J0-00 SPRING, COMPRESSION (OPT) (PINK)

SPRING, COMPRESSION (OPT) (PINK)
4

90501-604G0-00 SPRING, COMPRESSION (OPT) (PINK, YELLOW, PINK)

SPRING, COMPRESSION (OPT) (PINK, YELLOW, PINK)
4

90501-605G7-00 SPRING, COMPRESSION (OPT) (GREEN, YELLOW, GREEN)

SPRING, COMPRESSION (OPT) (GREEN, YELLOW, GREEN)
4

90501-605J5-00 SPRING, COMPRESSION (OPT) (ORANGE, PINK, ORANGE)

SPRING, COMPRESSION (OPT) (ORANGE, PINK, ORANGE)
4

90501-606G9-00 SPRING, COMPRESSION (OPT) (PINK, BLUE, PINK)

SPRING, COMPRESSION (OPT) (PINK, BLUE, PINK)
4

90501-607G0-00 SPRING, COMPRESSION (OPT) (GREEN, BLUE, GREEN)

SPRING, COMPRESSION (OPT) (GREEN, BLUE, GREEN)
4

90501-607G3-00 SPRING, COMPRESSION (OPT) (PINK, GOLD, PINK)

SPRING, COMPRESSION (OPT) (PINK, GOLD, PINK)
4

90501-607G4-00 SPRING, COMPRESSION (OPT) (GREEN, GOLD, GREEN)

SPRING, COMPRESSION (OPT) (GREEN, GOLD, GREEN)
5

8BV-17604-11-00 SEAT SPRING SET (OPT)

SEAT SPRING SET (OPT)
5

8BV-17604-31-00 SEAT SPRING SET (OPT)

SEAT SPRING SET (OPT)
5

8BV-17604-51-00 SEAT SPRING SET (OPT)

SEAT SPRING SET (OPT)
5

8BV-17604-71-00 SEAT SPRING SET (OPT)

SEAT SPRING SET (OPT)
5

8BV-17604-91-00 SEAT SPRING SET (OPT)

SEAT SPRING SET (OPT)
6

90508-500B1-00 SPRING, TORSION (OPT)

SPRING, TORSION (OPT)
6

90508-536A9-00 SPRING, TORSION (OPT)

SPRING, TORSION (OPT)
6

90508-556A2-00 SPRING, TORSION (OPT)

SPRING, TORSION (OPT)
6

90508-556A7-00 SPRING, TORSION (OPT)

SPRING, TORSION (OPT)
7

8CM-17665-00-00 PLATE 1 (OPT)

PLATE 1 (OPT)
8

90150-05040-00 SCREW, ROUND HEAD (OPT)

SCREW, ROUND HEAD (OPT)
9

8CM-17675-00-00 PLATE 2 (OPT)

PLATE 2 (OPT)
10

90150-05040-00 SCREW, ROUND HEAD (OPT)

SCREW, ROUND HEAD (OPT)
