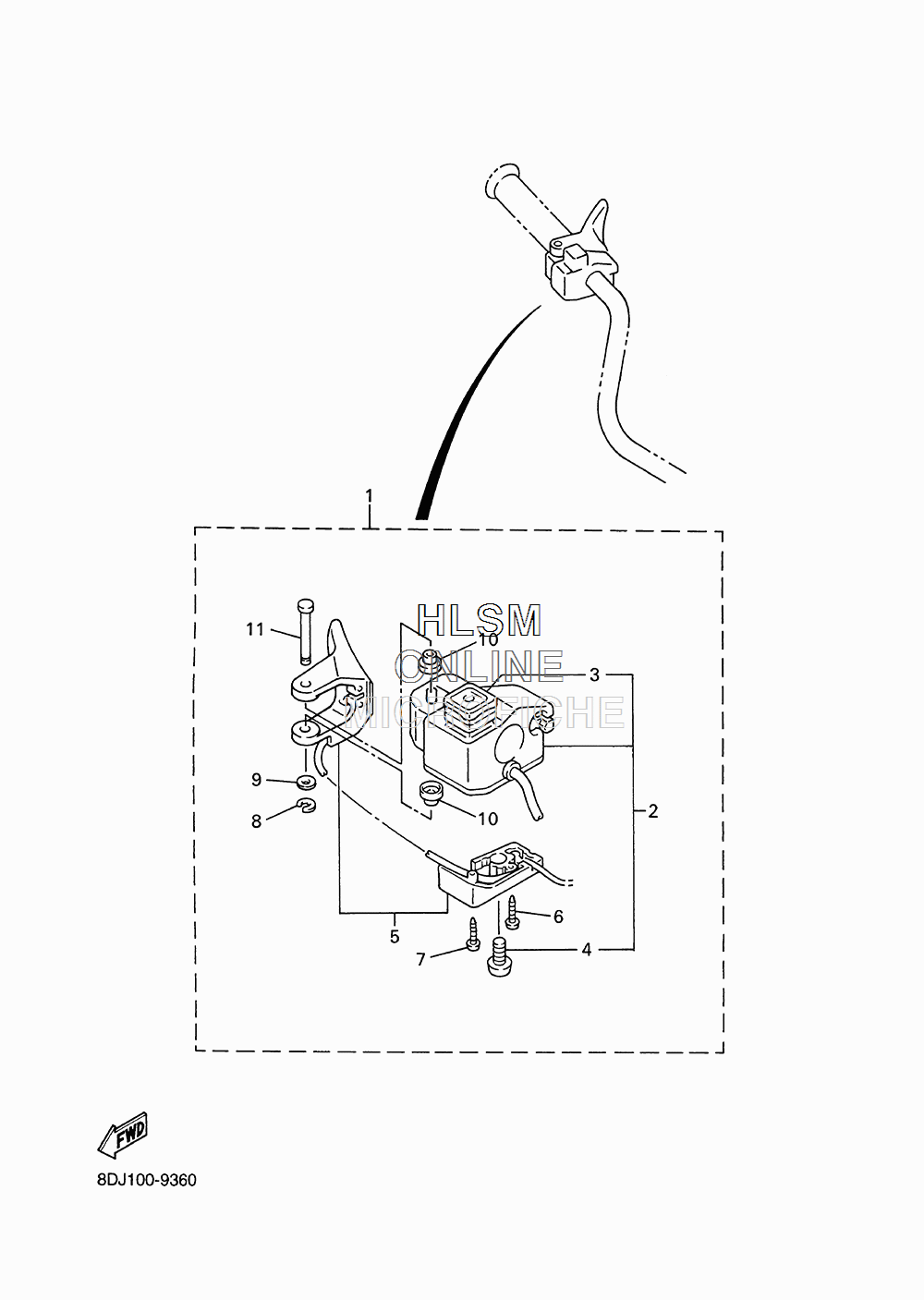

HANDLEBAR - SWITCHES AND LEVERS для Yamaha PHAZER 500 - 2001 года выпуска`
-
№АртикулНазвание
-
18BK-82720-00-00 LEVER HOLDER ASSY (RIGHT)LEVER HOLDER ASSY (RIGHT)
-
28AU-83963-00-00 ...SWITCH, HANDLE 3 (RIGHT)...SWITCH, HANDLE 3 (RIGHT)
-
38AU-82575-09-00 ......ENGINE STOP SWITCH ASSY (WIRE/L=240MM)......ENGINE STOP SWITCH ASSY (WIRE/L=240MM)
-
48R6-83928-00-00 ......SCREW......SCREW
-
58BK-82970-00-00 ...THUMB WARMER ASSY...THUMB WARMER ASSY
-
697706-30620-00 ...SCREW, TAPPING...SCREW, TAPPING
-
797706-30630-00 ...SCREW, TAPPING...SCREW, TAPPING
-
899001-04600-00 ...CIRCLIP...CIRCLIP
-
985G-83663-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
1085G-83956-00-00 ...CAP 1...CAP 1
-
1188T-8399F-00-00 ...SHAFT...SHAFT
