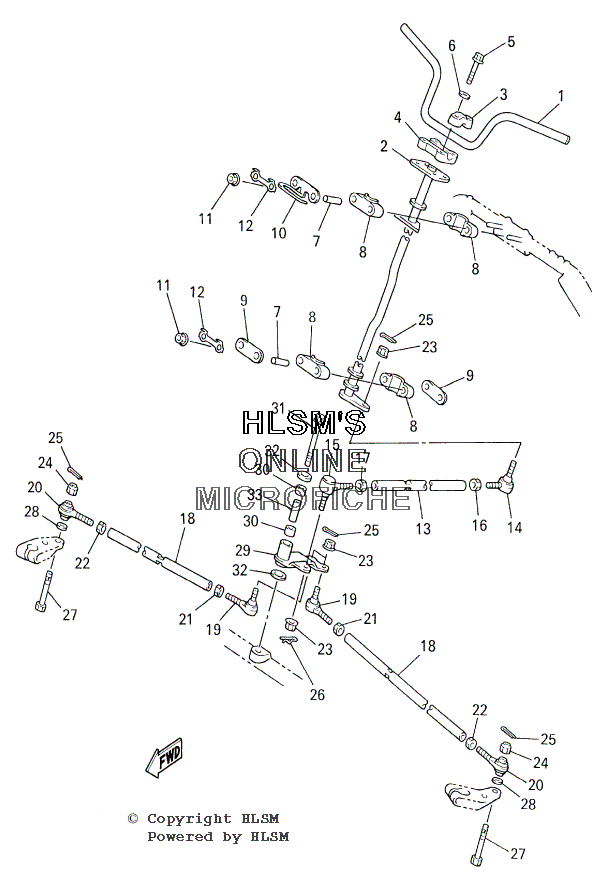

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha PHAZER 500 DELUXE - 2001 года выпуска`
-
№АртикулНазвание
-
18CR-23811-00-00 HANDLE COMPHANDLE COMP
-
28EG-23813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
38K1-23814-00-00 HOLDER, HANDLEHOLDER, HANDLE
-
48G5-23814-00-00 HOLDER, HANDLE UNDERHOLDER, HANDLE UNDER
-
597027-08055-00 BOLTBOLT
-
692907-08600-00 WASHER, PLATEWASHER, PLATE
-
790387-090R0-00 COLLARCOLLAR
-
88DF-23812-00-00 PLANE BEARING, STEERINGPLANE BEARING, STEERING
-
98CR-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
108CJ-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
1195707-08300-00 NUT, FLANGENUT, FLANGE
-
121UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
138CR-23821-00-00 ROD, STEERING RELAYROD, STEERING RELAY
-
148CR-23845-00-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
158CR-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
1695307-10700-00 NUTNUT
-
1790170-10186-00 NUT 1 (L.H. THREAD)NUT 1 (L.H. THREAD)
-
188CR-23831-00-00 ROD, TIEROD, TIE
-
198CR-23845-00-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2087S-23847-00-00 JOINT, UNIVERSAL 3 (L.H. THREAD)JOINT, UNIVERSAL 3 (L.H. THREAD)
-
2195307-10700-00 NUTNUT
-
2290170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
2395707-10500-00 NUT, FLANGENUT, FLANGE
-
2495707-10300-00 NUT, FLANGENUT, FLANGE
-
2591401-25020-00 PIN, COTTERPIN, COTTER
-
2690468-12006-00 CLIPCLIP
-
2790102-10044-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
2890201-08759-00 WASHER, PLATEWASHER, PLATE
-
298DF-23826-10-00 ARM, IDLERARM, IDLER
-
3093317-41767-00 BEARINGBEARING
-
3190105-12006-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3290201-121U3-00 WASHER, PLATEWASHER, PLATE
-
338DF-2412G-00-00 COLLARCOLLAR
