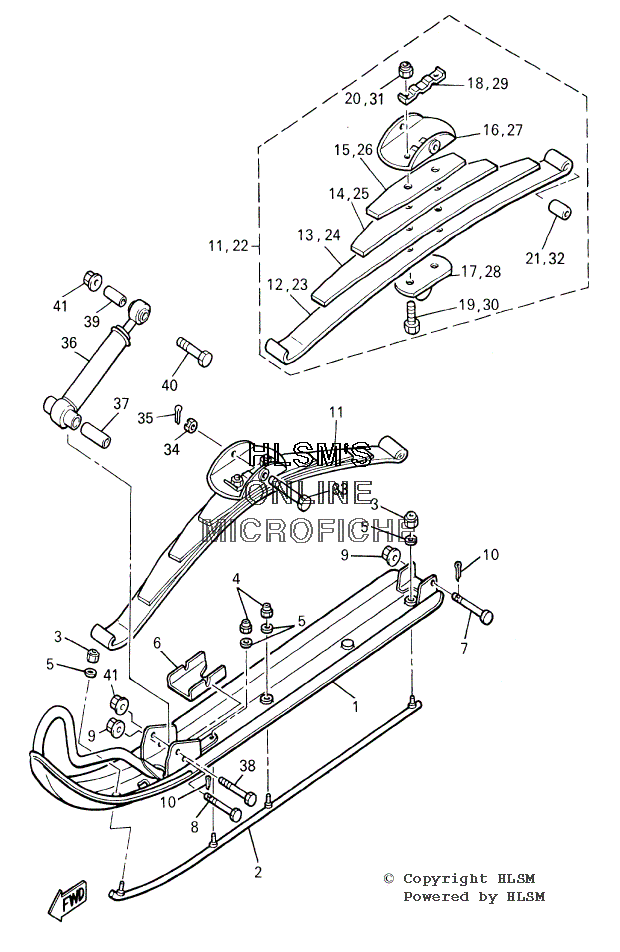

SUSPENSION - FRONT W/ SKI ASSY для Yamaha BRAVO 250 - 2001 года выпуска`
-
№АртикулНазвание
-
18E3-23710-09-00 SKI COMP. 1SKI COMP. 1
-
28E3-23731-00-XX RUNNER 1RUNNER 1
-
395617-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
495617-08100-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
592907-08600-00 WASHER, PLATEWASHER, PLATE
-
6888-23735-00-00 PLATE, WEAR 1PLATE, WEAR 1
-
790102-08028-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
890102-08027-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
995707-08300-00 NUT, FLANGENUT, FLANGE
-
1091401-20015-00 PIN, COTTERPIN, COTTER
-
118M8-23760-10-00 SPRING ASSY 1SPRING ASSY 1
-
12888-23761-10-00 ...LEAF 1...LEAF 1
-
13865-23762-10-00 ...LEAF 2...LEAF 2
-
14899-23763-10-00 ...LEAF 3...LEAF 3
-
15899-23764-10-00 ...LEAF 4...LEAF 4
-
168G6-23766-00-00 ...SADDLE 1...SADDLE 1
-
17878-23768-00-00 ...SEAT, SPRING 1...SEAT, SPRING 1
-
1890215-10155-00 ...WASHER, LOCK...WASHER, LOCK
-
1990109-105E8-00 ...BOLT...BOLT
-
2090185-10085-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
2190387-08478-00 ...COLLAR...COLLAR
-
228M8-23770-10-00 SPRING ASSY 2SPRING ASSY 2
-
23888-23761-10-00 ...LEAF 1...LEAF 1
-
24865-23762-10-00 ...LEAF 2...LEAF 2
-
25899-23763-10-00 ...LEAF 3...LEAF 3
-
26899-23764-10-00 ...LEAF 4...LEAF 4
-
278G6-23766-00-00 ...SADDLE 1...SADDLE 1
-
28878-23768-00-00 ...SEAT, SPRING 1...SEAT, SPRING 1
-
2990215-10155-00 ...WASHER, LOCK...WASHER, LOCK
-
3090109-105E8-00 ...BOLT...BOLT
-
3190185-10085-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
3290387-08478-00 ...COLLAR...COLLAR
-
3390102-12030-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
3495307-12900-00 NUTNUT
-
3591401-30025-00 PIN, COTTERPIN, COTTER
-
368J6-23350-00-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
3790387-08262-00 COLLARCOLLAR
-
3897007-08055-00 BOLTBOLT
-
3990387-08224-00 COLLARCOLLAR
-
4097007-08070-00 BOLTBOLT
-
4195707-08300-00 NUT, FLANGENUT, FLANGE
