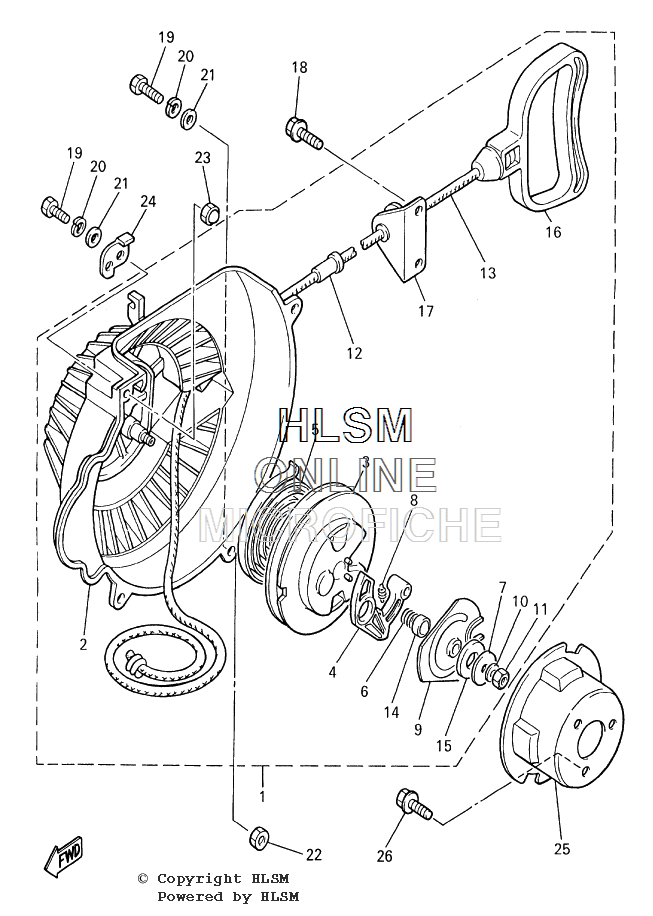

STARTER - REDUCTION GEAR W/ CLUTCH ASSY для Yamaha BRAVO 250 - 2001 года выпуска`
-
№АртикулНазвание
-
18R4-15710-01-00 STARTER ASSYSTARTER ASSY
-
28R4-15711-00-00 ...CASE, STARTER...CASE, STARTER
-
38F3-15714-01-00 ...DRUM, SHEAVE...DRUM, SHEAVE
-
48F3-15741-01-00 ...PAWL, DRIVE...PAWL, DRIVE
-
58F3-15713-01-00 ...SPRING, STARTER...SPRING, STARTER
-
68F3-15715-00-00 ...SPRING, FRICTION...SPRING, FRICTION
-
78F3-15739-01-00 ...WASHER, THRUST...WASHER, THRUST
-
88F3-15734-00-00 ...SPRING, RETURN...SPRING, RETURN
-
98F3-15716-03-00 ...PLATE, DRIVE...PLATE, DRIVE
-
1092901-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
1195301-06700-00 ...NUT...NUT
-
128F3-15758-00-00 ...GUIDE, ROPE...GUIDE, ROPE
-
138F3-15751-00-00 ...WIRE, STARTER...WIRE, STARTER
-
148G5-15716-00-00 ...COLLAR...COLLAR
-
158G5-15739-00-00 ...WASHER, THRUST...WASHER, THRUST
-
168R4-15755-00-00 ...HANDLE, STARTER...HANDLE, STARTER
-
178R4-15788-01-00 ...HOLDER, HANDLE...HOLDER, HANDLE
-
1895807-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1997007-06025-00 BOLTBOLT
-
2092907-06100-00 WASHER, SPRINGWASHER, SPRING
-
2192907-06600-00 WASHER, PLATEWASHER, PLATE
-
2295307-06600-00 NUTNUT
-
2390176-06038-00 NUT, CROWNNUT, CROWN
-
248R4-77118-00-00 STOPPER, SHROUDSTOPPER, SHROUD
-
2581L-15723-00-00 PULLEY, STARTERPULLEY, STARTER
-
2695807-08012-00 BOLT, FLANGEBOLT, FLANGE
