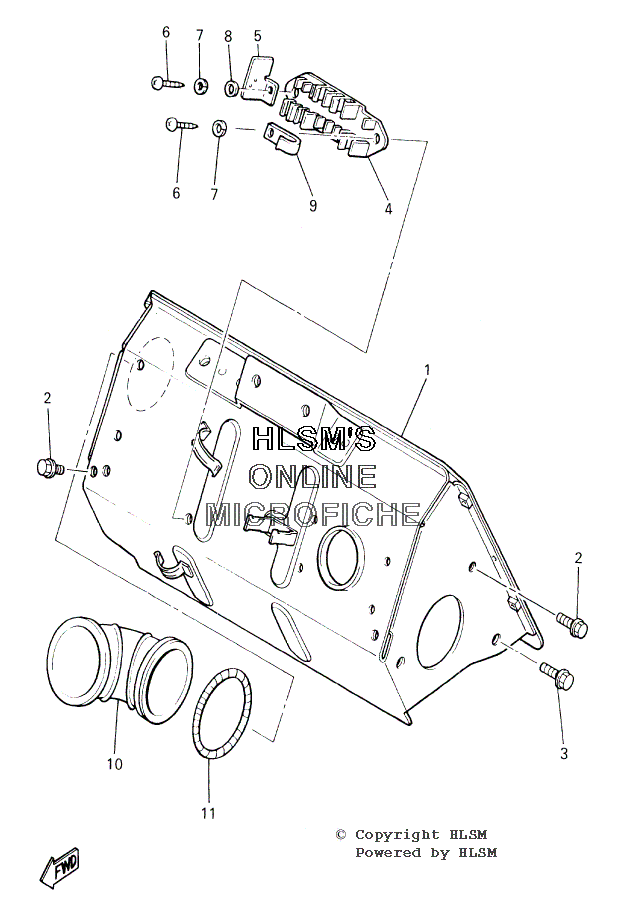

HANDLEBAR PAD W/ STEERING GATE для Yamaha BRAVO 250 - 2001 года выпуска`
-
№АртикулНазвание
-
18BD-23871-00-00 GATE, STEERINGGATE, STEERING
-
295827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
390105-08688-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
48F3-21794-00-00 HOLDER, COUPLERHOLDER, COUPLER
-
58AE-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
698507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
792907-06600-00 WASHER, PLATEWASHER, PLATE
-
892907-06200-00 WASHERWASHER
-
990465-08028-00 CLAMPCLAMP
-
108A5-14423-00-00 PIPE, SUCTION 1PIPE, SUCTION 1
-
1190506-06083-00 SPRING, TENSIONSPRING, TENSION
