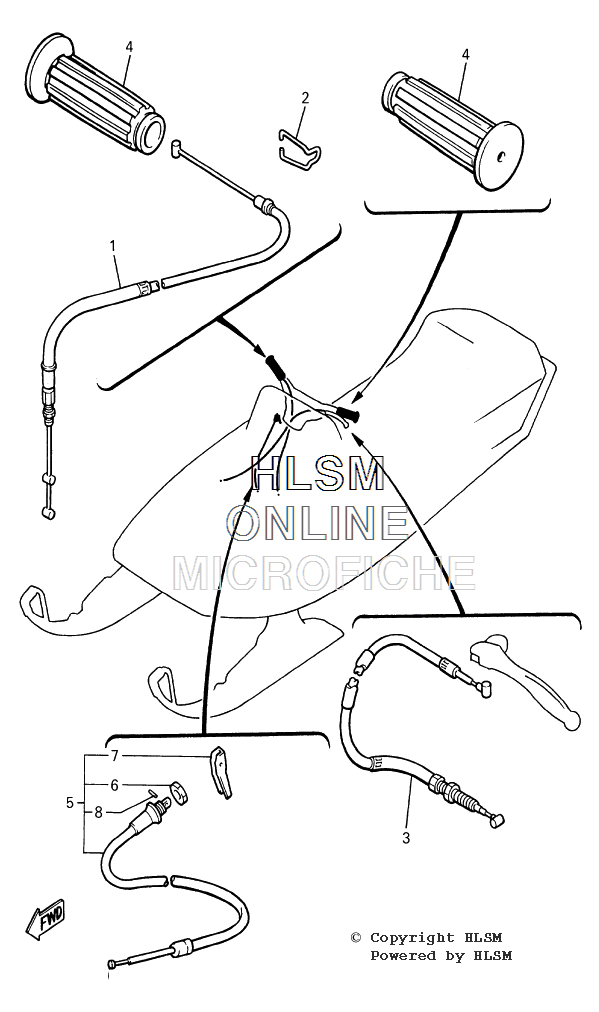

HANDLEBAR - CABLES AND GRIPS для Yamaha BRAVO 250 - 2001 года выпуска`
-
№АртикулНазвание
-
183Y-26311-01-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
290465-10189-00 CLAMPCLAMP
-
38R4-26340-00-00 CABLE, BRAKECABLE, BRAKE
-
4801-26241-01-00 GRIPGRIP
-
580F-26331-00-00 CABLE, STARTER 1CABLE, STARTER 1
-
68G8-26333-00-00 ...NUT...NUT
-
78L2-26331-00-00 ...KNOB, STARTER...KNOB, STARTER
-
891609-30010-00 ...PIN, SPRING...PIN, SPRING
