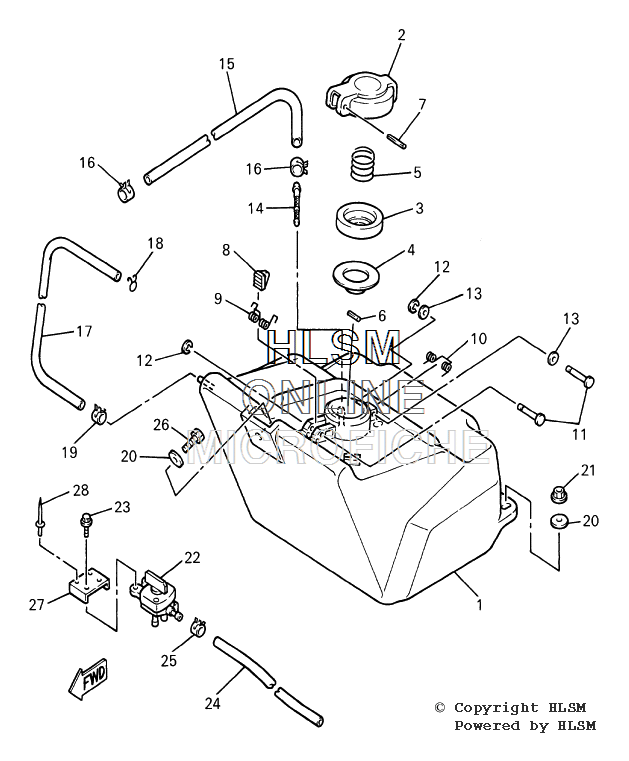

FUEL TANK ASSY 2 для Yamaha BRAVO 250 - 2001 года выпуска`
-
№АртикулНазвание
-
18BD-24211-00-00 TANK, FUELTANK, FUEL
-
28A5-24611-00-00 BODY, CAPBODY, CAP
-
3813-24613-01-00 DISC, CAPDISC, CAP
-
489A-24641-00-00 GASKET, CAP 1GASKET, CAP 1
-
590501-20130-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
691609-30016-00 PIN, SPRINGPIN, SPRING
-
791609-25032-00 PIN, SPRINGPIN, SPRING
-
883M-24628-00-00 HOOKHOOK
-
990508-10715-00 SPRING, TORSIONSPRING, TORSION
-
1090508-08353-00 SPRING, TORSIONSPRING, TORSION
-
1190249-03017-00 PINPIN
-
1293430-02001-00 CIRCLIPCIRCLIP
-
1390201-03313-00 WASHER, PLATEWASHER, PLATE
-
1422F-24514-01-00 NET, FILTER 1NET, FILTER 1
-
1590445-117F2-00 HOSE (L650)HOSE (L650)
-
1690467-11028-00 CLIPCLIP
-
1790445-095K5-00 HOSE (L960)HOSE (L960)
-
1890467-08017-00 CLIPCLIP
-
1990467-09026-00 CLIPCLIP
-
2090201-08784-00 WASHER, PLATEWASHER, PLATE
-
2195707-08300-00 NUT, FLANGENUT, FLANGE
-
228BD-24500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
2395807-06008-00 BOLT, FLANGEBOLT, FLANGE
-
2490445-111H4-00 HOSE (L95)HOSE (L95)
-
2590467-11028-00 CLIPCLIP
-
2697027-08020-00 BOLTBOLT
-
278BD-24544-00-00 BRACKET, FUEL COCKBRACKET, FUEL COCK
-
2890267-48095-00 RIVET, BLINDRIVET, BLIND
