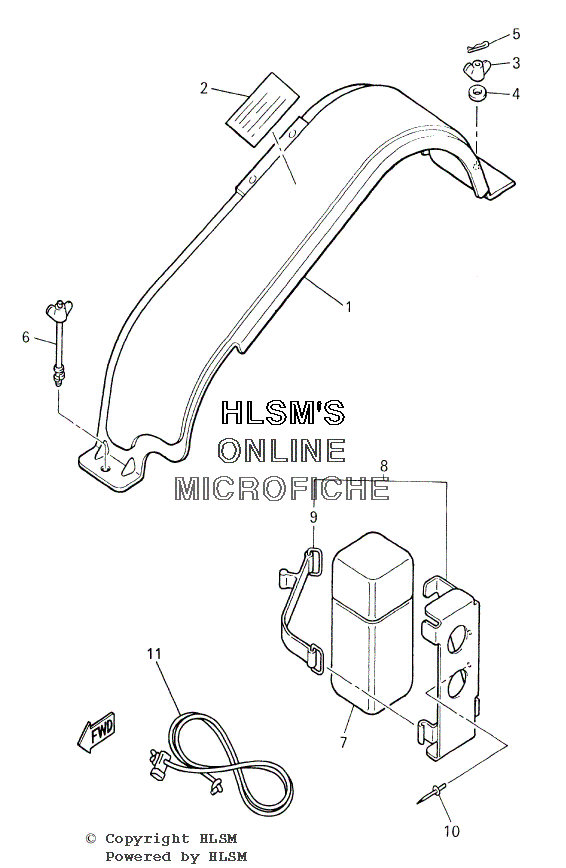

DRIVE GUARD W/ LUGGAGE BOX для Yamaha BRAVO 250 - 2001 года выпуска`
-
№АртикулНазвание
-
18R4-77311-00-00 GUARD, DRIVEGUARD, DRIVE
-
28BD-77762-00-00 LABEL, WARNING 2LABEL, WARNING 2
-
390175-08021-00 NUT, WINGNUT, WING
-
492907-08200-00 WASHERWASHER
-
590468-16099-00 CLIPCLIP
-
68V0-77387-00-00 SCREWSCREW
-
785L-28100-00-00 TOOL KITTOOL KIT
-
88AB-21945-00-00 BRACKET, TOOL BOX FITTINGBRACKET, TOOL BOX FITTING
-
94J2-82131-01-00 ...BAND, BATTERY...BAND, BATTERY
-
1090267-48060-00 RIVET, BLINDRIVET, BLIND
-
118R4-15780-00-00 EMERGENCY STARTER ROPE ASSYEMERGENCY STARTER ROPE ASSY
Все узлы модели:
- AIR SHROUD W/ FAN
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CARBURETOR ASSY
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CONSOLE ASSY
- CRANKCASE ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- • DRIVE GUARD W/ LUGGAGE BOX
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- FUEL TANK ASSY 2
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- OIL PUMP ASSY
- OIL PUMP DRIVE GEAR
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- SEAT ASSY
- SPEEDOMETER KIT
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- THUMB WARMER KIT (OPT)
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
