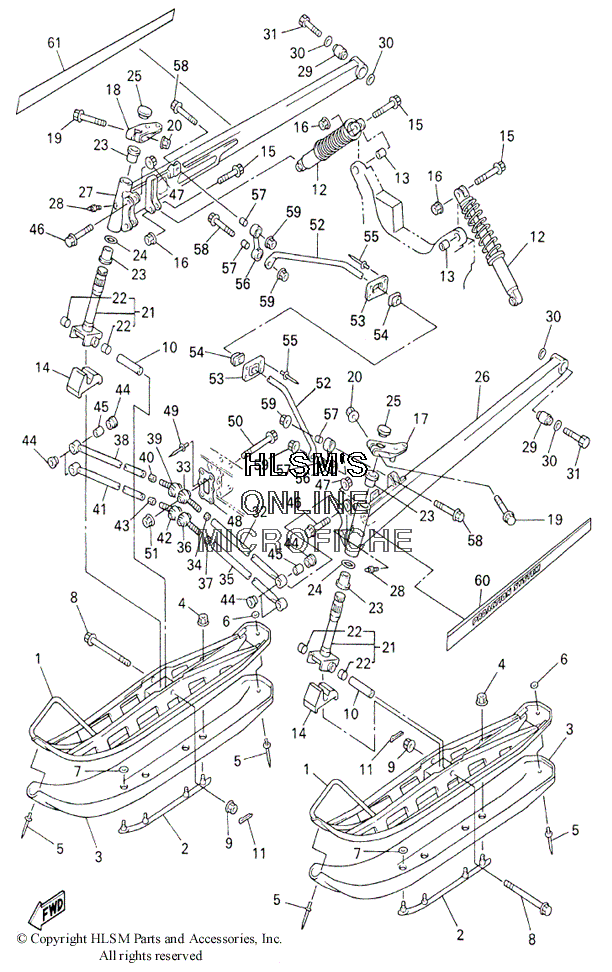

SUSPENSION - FRONT W/ SKI ASSY для Yamaha VENTURE 600 - 2000 года выпуска`
-
№АртикулНазвание
-
18CV-23710-00-00 SKI COMP 1SKI COMP 1
-
28CS-23731-00-00 RUNNER 1RUNNER 1
-
38CV-23732-10-00 RUNNER 2RUNNER 2
-
495607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590267-48184-00 RIVET, BLINDRIVET, BLIND
-
690201-04325-00 WASHER, PLATEWASHER, PLATE
-
790201-08020-00 WASHER, PLATEWASHER, PLATE
-
890105-10438-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
995607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1090387-1012H-00 COLLARCOLLAR
-
1191401-20020-00 PIN, COTTERPIN, COTTER
-
128DM-2376A-00-00 ABSORBER ASSEMBLY 1ABSORBER ASSEMBLY 1
-
138CR-2376B-00-00 BUSHBUSH
-
148CS-23743-00-00 STOPPER 1STOPPER 1
-
1590105-100A9-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1695607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
178CR-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
188CR-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
1995817-10055-00 BOLT, FLANGEBOLT, FLANGE
-
2095607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
218CR-23803-01-00 COLUMN, SKI ASSEMBLYCOLUMN, SKI ASSEMBLY
-
2290384-16251-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
2390381-25115-00 BUSH, SOLIDBUSH, SOLID
-
2490201-301G3-00 WASHER, PLATEWASHER, PLATE
-
258CR-23741-10-00 CAP 1CAP 1
-
268CR-2382E-03-00 ARM, FRONT 1ARM, FRONT 1
-
278CR-2382F-03-00 ARM, FRONT 2ARM, FRONT 2
-
2893700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
298CR-2516A-00-00 DAMPERDAMPER
-
3090201-120T5-00 WASHER, PLATEWASHER, PLATE
-
3190101-12780-00 BOLTBOLT
-
328CR-2384E-02-00 ARM, CONTROL 1ARM, CONTROL 1
-
338CR-23823-01-00 JOINT 2JOINT 2
-
3495317-12600-00 NUTNUT
-
358CR-2384F-02-00 ARM, CONTROL 2ARM, CONTROL 2
-
368CR-23832-00-00 JOINT 3JOINT 3
-
3795314-14600-00 NUTNUT
-
388CR-2384E-02-00 ARM, CONTROL 1ARM, CONTROL 1
-
398CR-23823-01-00 JOINT 2JOINT 2
-
4095317-12600-00 NUTNUT
-
418CR-2384F-02-00 ARM, CONTROL 2ARM, CONTROL 2
-
428CR-23832-00-00 JOINT 3JOINT 3
-
4395314-14600-00 NUTNUT
-
4490381-17110-00 BUSH, SOLIDBUSH, SOLID
-
4590387-1009K-00 COLLARCOLLAR
-
4690105-100A9-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
4795607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
488DF-23779-00-00 WASHERWASHER
-
4990267-48057-00 RIVET, BLINDRIVET, BLIND
-
5090105-121A8-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
5195607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
528CR-2386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
538CR-2386H-00-00 COVER, STABILIZER FRONTCOVER, STABILIZER FRONT
-
548CR-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
5590267-47186-00 RIVET, BLINDRIVET, BLIND
-
568CR-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
5790387-087L3-00 COLLARCOLLAR
-
5890105-08345-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
5995607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
608CY-77371-00-00 EMBLEM 5EMBLEM 5
-
618CY-77372-00-00 EMBLEM 6EMBLEM 6
