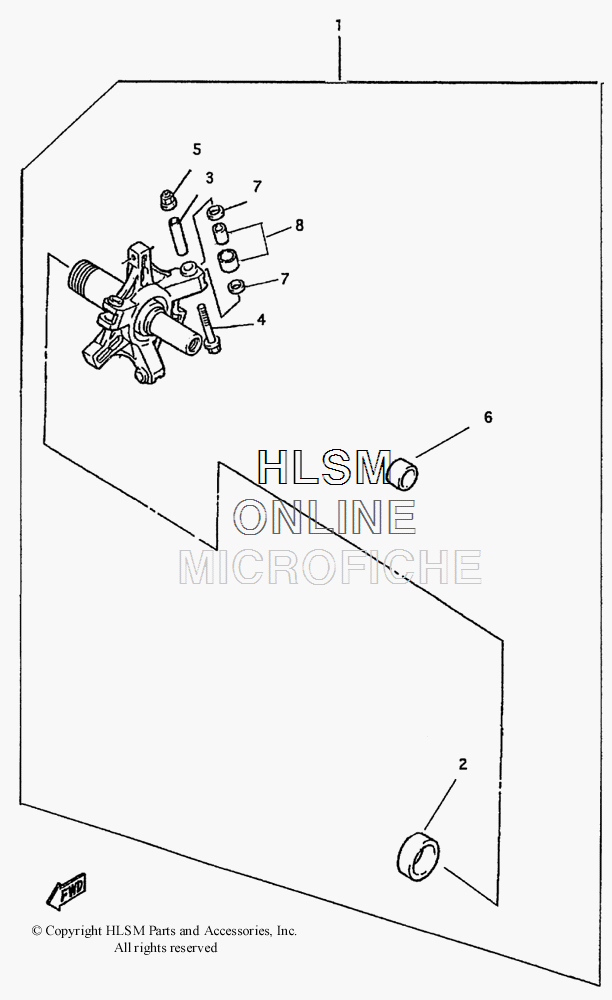

CLUTCH - TUNE-UP KIT (OPTION) для Yamaha V-MAX 600 DELUXE - 2000 года выпуска`
-
№АртикулНазвание
-
18CJ-00000-52-00 CLUTCH TUNE-UP KIT (AP VX600)CLUTCH TUNE-UP KIT (AP VX600)
-
18CS-00000-51-00 CLUTCH TUNE-UP KIT (AP VX700)CLUTCH TUNE-UP KIT (AP VX700)
-
290384-41242-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
390387-0514U-00 ...COLLAR...COLLAR
-
490105-05644-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
595607-05200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
690380-28237-00 ...BUSH, SOLID...BUSH, SOLID
-
790202-09227-00 ...WASHER, PLATE...WASHER, PLATE
-
88CR-17624-00-00 ...ROLLER, COMP...ROLLER, COMP
