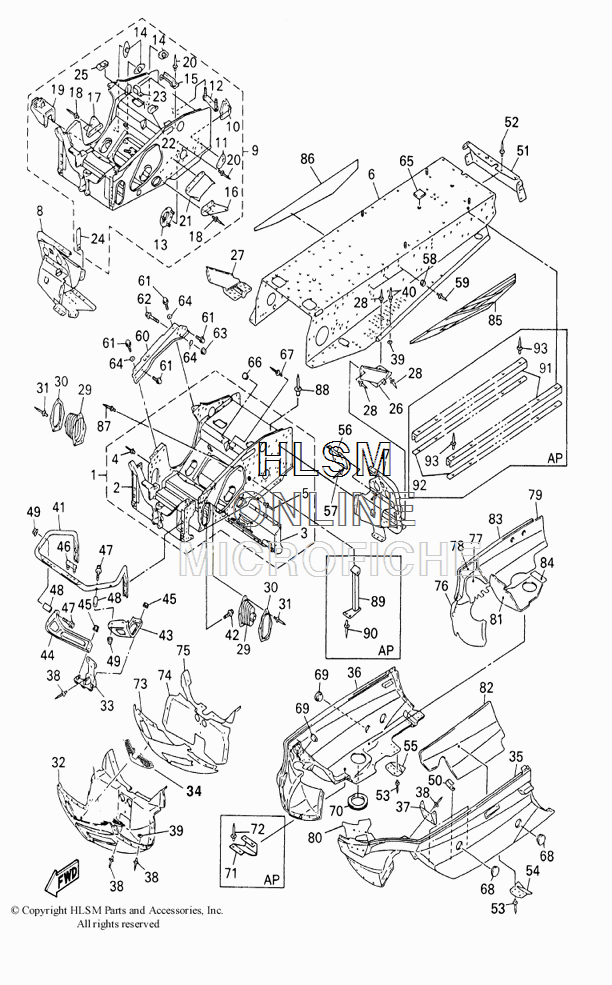

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha V-MAX 500 - 2000 года выпуска
-
№АртикулНазвание
-
18CR-21940-06-00 FRONT FRAME COMPFRONT FRAME COMP
-
28CR-2191A-00-00 ...BULKHEAD...BULKHEAD
-
38CR-12440-02-00 ...HEAT EXCHANGER ASSEMBLY...HEAT EXCHANGER ASSEMBLY
-
490267-48176-00 ...RIVET, BLIND (UN)...RIVET, BLIND (UN)
-
590267-48177-00 ...RIVET, BLIND (UN)...RIVET, BLIND (UN)
-
68CJ-21950-09-00 REAR FRAME COMPREAR FRAME COMP
-
78CR-21960-08-00 FOOTREST COMP 1FOOTREST COMP 1
-
88CR-21970-08-00 FOOTREST COMP 2FOOTREST COMP 2
-
98CR-W2195-03-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
108CR-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
118CR-21953-01-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
128CR-2196F-00-00 ...BRACKET 3...BRACKET 3
-
138CR-21920-00-00 ...HOUSING, REINF SUB-ASSEMBLY (L.H)...HOUSING, REINF SUB-ASSEMBLY (L.H)
-
148CR-21939-00-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
158CR-21977-00-00 ...CLAMP, FUEL PIPE...CLAMP, FUEL PIPE
-
168CR-21917-00-00 ...PANEL, SUB FRAME 6...PANEL, SUB FRAME 6
-
178CR-21918-00-00 ...PANEL, SUB-FRAME 7...PANEL, SUB-FRAME 7
-
1890267-48176-00 ...RIVET, BLIND...RIVET, BLIND
-
198CR-2194J-00-00 ...STAY, MUFFLER...STAY, MUFFLER
-
2090267-47186-00 ...RIVET, BLIND (UR UN)...RIVET, BLIND (UR UN)
-
2090267-47197-00 ...RIVET, BLIND (UR UN)...RIVET, BLIND (UR UN)
-
218CR-2198G-00-00 ...COVER 2...COVER 2
-
2290461-05003-00 ...CLAMP...CLAMP
-
2390461-06142-00 ...CLAMP...CLAMP
-
2490462-05059-00 ...CLAMP...CLAMP
-
2590461-10148-00 ...CLAMP...CLAMP
-
268DF-21941-00-00 PIPE, PIVOT 1PIPE, PIVOT 1
-
278DF-21951-00-00 PIPE, PIVOT 2PIPE, PIVOT 2
-
2890269-07080-00 RIVETRIVET
-
298CR-2198F-00-00 COVER 1COVER 1
-
308CR-2195E-00-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
3190267-48165-00 RIVET, BLINDRIVET, BLIND
-
328CR-21912-31-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
338CR-23788-11-00 PLATE, BACK UPPLATE, BACK UP
-
348CR-77128-00-00 STAY 4STAY 4
-
358CR-2196A-32-00 FRAME UNDER 1FRAME UNDER 1
-
368CR-2196E-32-00 FRAME, UNDER 2FRAME, UNDER 2
-
378CR-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
3890267-48141-00 RIVET, BLINDRIVET, BLIND
-
3990201-05033-00 WASHER, PLATEWASHER, PLATE
-
4090267-47187-00 RIVET, BLINDRIVET, BLIND
-
418CR-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
4295807-08020-00 BOLT, FLANGEBOLT, FLANGE
-
438CR-21949-10-00 BRACKET, FRONTBRACKET, FRONT
-
448CR-21959-10-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
4595607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
468CR-2196M-00-00 BRACKET, 5BRACKET, 5
-
4795807-08040-00 BOLT, FLANGEBOLT, FLANGE
-
4890387-0810F-00 COLLARCOLLAR
-
4995707-08500-00 NUT, FLANGENUT, FLANGE
-
5090465-08146-00 CLAMPCLAMP
-
518CR-21923-02-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
5290267-47195-00 RIVET, BLINDRIVET, BLIND
-
5390267-48141-00 RIVET, BLINDRIVET, BLIND
-
548CR-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
558CR-2197B-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
568CR-21973-00-00 HOOKHOOK
-
5790267-48169-00 RIVET, BLINDRIVET, BLIND
-
5881K-2471F-00-00 BUTTONBUTTON
-
5990267-40069-00 RIVET, BLINDRIVET, BLIND
-
608CR-21921-01-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
6190105-10617-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
6295827-10065-00 BOLT, FLANGEBOLT, FLANGE
-
6395707-10500-00 NUT, FLANGENUT, FLANGE
-
6492907-10200-00 WASHER, PLAINWASHER, PLAIN
-
658CR-2198J-00-00 COVER 3COVER 3
-
6690338-10004-00 PLUGPLUG
-
6790267-48177-00 RIVET, BLINDRIVET, BLIND
-
6890338-44269-00 PLUGPLUG
-
6990338-30267-00 PLUGPLUG
-
708DF-21998-00-00 SPACERSPACER
-
718CS-2197C-00-00 PROTECTOR, FRAME 3 (OPT)PROTECTOR, FRAME 3 (OPT)
-
7290267-48141-00 RIVET, BLIND (OPT)RIVET, BLIND (OPT)
-
738CR-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
748CR-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
758CR-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
768CR-77264-00-00 LINING, SHROUD 4LINING, SHROUD 4
-
778CR-77265-00-00 LINING, SHROUD 5LINING, SHROUD 5
-
788CR-77266-00-00 LINING, SHROUD 6LINING, SHROUD 6
-
798CR-77267-01-00 LINING, SHROUD 7LINING, SHROUD 7
-
808CR-77268-00-00 LINING, SHROUD 8LINING, SHROUD 8
-
818CR-77269-00-00 LINING, SHROUD 9LINING, SHROUD 9
-
828CR-77271-00-00 DAMPER, NOISE 1DAMPER, NOISE 1
-
838CR-7717J-00-00 TAPE, 5TAPE, 5
-
848CR-77165-00-00 TRIM 1TRIM 1
-
858CJ-77351-10-00 EMBLEM 1EMBLEM 1
-
868CJ-77352-10-00 EMBLEM 2EMBLEM 2
-
8790267-48177-00 RIVET, BLINDRIVET, BLIND
-
8890267-47186-00 RIVET, BLINDRIVET, BLIND
-
898EA-2197E-00-00 PROTECTOR, FRAME (OPT)PROTECTOR, FRAME (OPT)
-
9090267-48176-00 RIVET, BLIND (OPT)RIVET, BLIND (OPT)
-
918DF-21978-00-00 PROTECTOR, FRAME (OPT)PROTECTOR, FRAME (OPT)
-
928DF-21972-00-00 BRACKET, GUARD FITTING (OPT)BRACKET, GUARD FITTING (OPT)
-
9390267-47197-00 RIVET, BLIND (OPT)RIVET, BLIND (OPT)
