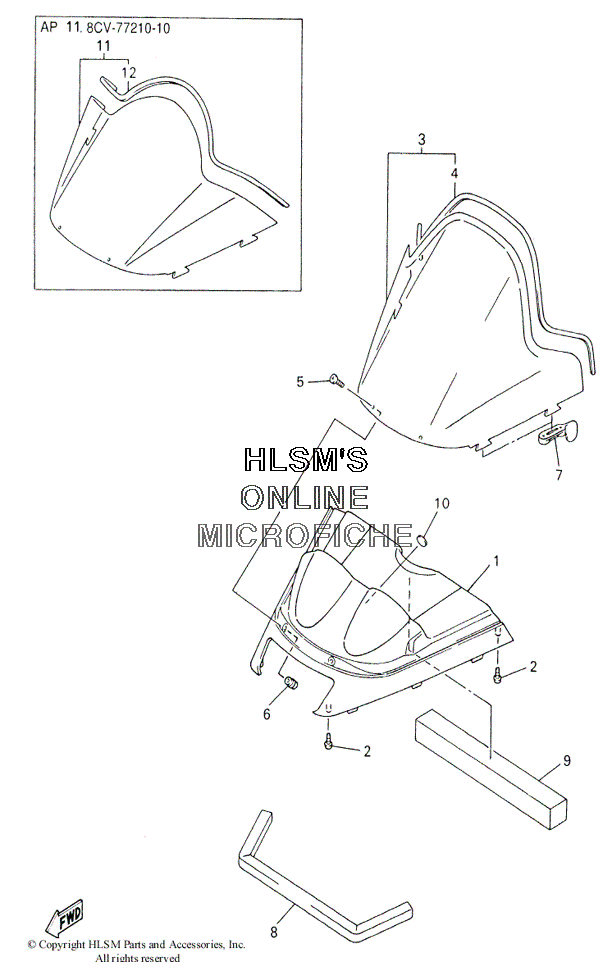

HOOD - WINDSHIELD ASSY для Yamaha SX500 - 2000 года выпуска`
-
№АртикулНазвание
-
18DF-77251-10-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
297707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
38CR-77210-10-00 WINDSHIELD COMP.WINDSHIELD COMP.
-
48CR-77213-00-00 ...TRIM, UPPER...TRIM, UPPER
-
590150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
690179-05523-00 NUTNUT
-
782H-77223-00-00 FASTNERFASTNER
-
88CR-77279-00-00 DAMPER, NOISE 9DAMPER, NOISE 9
-
98CR-2199J-00-00 SHIELD, NOISE 2SHIELD, NOISE 2
-
104XV-2341B-00-00 EMBLEMEMBLEM
-
118CV-77210-10-00 WINDSHIELD COMP. (AP)WINDSHIELD COMP. (AP)
-
128CV-77213-00-00 ...TRIM, UPPER...TRIM, UPPER
Все узлы модели:
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CARBURETOR ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE GUARD W/ LUGGAGE BOX
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- • HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- OIL PUMP ASSY
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- REVERSE KIT (OPTION)
- SEAT ASSY
- SEAT ASSY (OPTION)
- SEAT ASSY 2 (OPTION)
- STARTER - ELECTRICAL STARTER ASSY (OPTION)
- STARTER - ELECTRICAL STARTER KIT W/ BATTERY AND STARTER (OPTION)
- STARTER - RECOIL
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - REAR SPRINGS
- SUSPENSION - TORQUE ARM ASSY
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
- WATER PUMP ASSY
