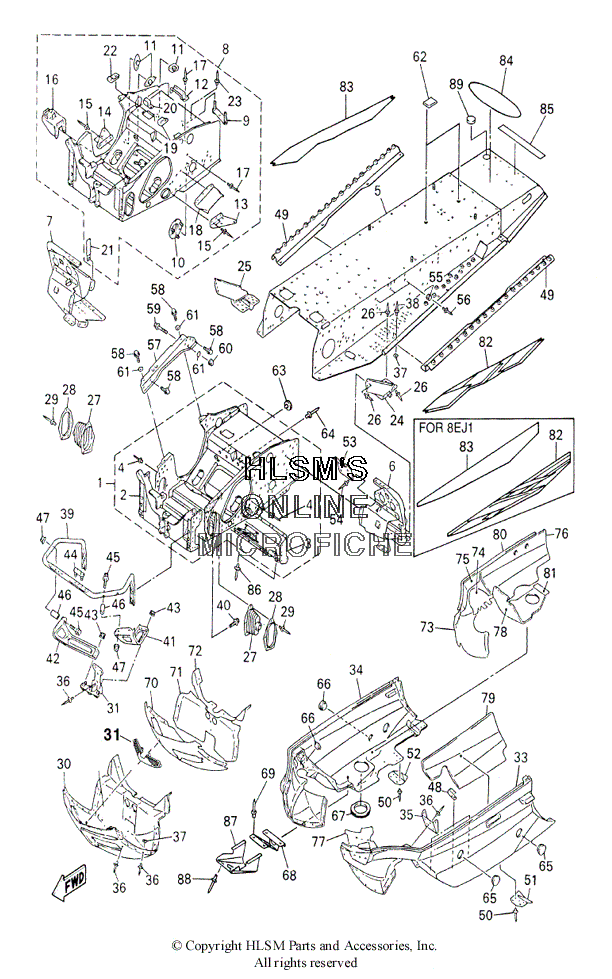

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha MOUNTAIN MAX 700 - 2000 года выпуска`
-
№АртикулНазвание
-
18DG-21940-08-00 FRONT FRAME COMPFRONT FRAME COMP
-
28CR-2191A-00-00 ...BULKHEAD...BULKHEAD
-
38DG-12440-00-00 ...HEAT EXCHANGER ASSEMBLY...HEAT EXCHANGER ASSEMBLY
-
490267-48176-00 ...RIVET, BLIND (UR UN)...RIVET, BLIND (UR UN)
-
490267-48177-00 ...RIVET, BLIND (UR UN)...RIVET, BLIND (UR UN)
-
58ED-21950-09-00 REAR FRAME COMP (MM700)REAR FRAME COMP (MM700)
-
58EJ-21950-09-00 REAR FRAME COMP (MM600)REAR FRAME COMP (MM600)
-
68ED-21960-09-00 FOOTREST COMP 1FOOTREST COMP 1
-
78ED-21970-09-00 FOOTREST COMP 2FOOTREST COMP 2
-
88ED-W2195-00-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
98CR-2196F-00-00 ...BRACKET 3...BRACKET 3
-
108CR-21920-00-00 ...HOUSING, REINF SUB-ASSEMBLY (L.H)...HOUSING, REINF SUB-ASSEMBLY (L.H)
-
118CR-21939-00-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
128CR-21977-00-00 ...CLAMP, FUEL PIPE...CLAMP, FUEL PIPE
-
138CR-21917-00-00 ...PANEL, SUB FRAME 6...PANEL, SUB FRAME 6
-
148CR-21918-00-00 ...PANEL, SUB-FRAME 7...PANEL, SUB-FRAME 7
-
1590267-48176-00 ...RIVET, BLIND...RIVET, BLIND
-
168CR-2194J-00-00 ...STAY, MUFFLER...STAY, MUFFLER
-
1790267-47186-00 ...RIVET, BLIND (UN)...RIVET, BLIND (UN)
-
188CR-2198G-00-00 ...COVER 2...COVER 2
-
1990461-05003-00 ...CLAMP...CLAMP
-
2090461-06142-00 ...CLAMP...CLAMP
-
2190462-05059-00 ...CLAMP...CLAMP
-
2290461-10148-00 ...CLAMP...CLAMP
-
2390267-47197-00 ...RIVET, BLIND...RIVET, BLIND
-
248DF-21941-00-00 PIPE, PIVOT 1PIPE, PIVOT 1
-
258DF-21951-00-00 PIPE, PIVOT 2PIPE, PIVOT 2
-
2690269-07080-00 RIVETRIVET
-
278CR-2198F-00-00 COVER 1COVER 1
-
288CR-2195E-00-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
2990267-48165-00 RIVET, BLINDRIVET, BLIND
-
308CR-21912-11-00 PANEL, SUB FRAME 1 (MM700)PANEL, SUB FRAME 1 (MM700)
-
308CR-21912-31-00 PANEL, SUB FRAME 1 (MM600)PANEL, SUB FRAME 1 (MM600)
-
318CR-23788-11-00 PLATE, BACK UPPLATE, BACK UP
-
328CR-77128-00-00 STAY 4STAY 4
-
338CR-2196A-12-00 FRAME UNDER 1 (MM700)FRAME UNDER 1 (MM700)
-
338CR-2196A-32-00 FRAME UNDER 1 (MM600)FRAME UNDER 1 (MM600)
-
348CR-2196E-12-00 FRAME, UNDER 2 (MM700)FRAME, UNDER 2 (MM700)
-
348CR-2196E-32-00 FRAME, UNDER 2 (MM600)FRAME, UNDER 2 (MM600)
-
358CR-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
3690267-48141-00 RIVET, BLINDRIVET, BLIND
-
3790201-05033-00 WASHER, PLATEWASHER, PLATE
-
3890267-47187-00 RIVET, BLINDRIVET, BLIND
-
398CR-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
4095807-08020-00 BOLT, FLANGEBOLT, FLANGE
-
418CR-21949-10-00 BRACKET, FRONTBRACKET, FRONT
-
428CR-21959-10-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
4395607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
448CR-2196M-00-00 BRACKET, 5BRACKET, 5
-
4595807-08040-00 BOLT, FLANGEBOLT, FLANGE
-
4690387-0810F-00 COLLARCOLLAR
-
4795707-08500-00 NUT, FLANGENUT, FLANGE
-
4890465-08146-00 CLAMPCLAMP
-
498ED-2192A-00-00 PLATE, ANTI-SKID (MM700)PLATE, ANTI-SKID (MM700)
-
498ED-2192A-10-00 PLATE, ANTI-SKID (MM600)PLATE, ANTI-SKID (MM600)
-
5090267-48141-00 RIVET, BLINDRIVET, BLIND
-
518CR-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
528CR-2197B-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
538CR-21973-00-00 HOOKHOOK
-
5490267-48169-00 RIVET, BLINDRIVET, BLIND
-
5581K-2471F-00-00 BUTTONBUTTON
-
5690267-40069-00 RIVET, BLINDRIVET, BLIND
-
578CR-21921-01-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
5890105-10617-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
5995827-10065-00 BOLT, FLANGEBOLT, FLANGE
-
6095707-10500-00 NUT, FLANGENUT, FLANGE
-
6192907-10200-00 WASHER, PLAINWASHER, PLAIN
-
628CR-2198J-00-00 COVER 3 (MM600)COVER 3 (MM600)
-
628DP-2198J-00-00 COVER 3 (MM700)COVER 3 (MM700)
-
6390338-10004-00 PLUGPLUG
-
6490267-48177-00 RIVET, BLINDRIVET, BLIND
-
6590338-44093-00 PLUG (MM600)PLUG (MM600)
-
6590338-44270-00 PLUG (MM700)PLUG (MM700)
-
6690338-30256-00 PLUG (MM600)PLUG (MM600)
-
6690338-30268-00 PLUG (MM700)PLUG (MM700)
-
678DF-21998-00-00 SPACERSPACER
-
688ED-2197C-00-00 PROTECTOR, FRAME 3PROTECTOR, FRAME 3
-
6990267-48141-00 RIVET, BLINDRIVET, BLIND
-
708CR-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
718CR-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
728CR-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
738CR-77264-00-00 LINING, SHROUD 4LINING, SHROUD 4
-
748CR-77265-00-00 LINING, SHROUD 5LINING, SHROUD 5
-
758CR-77266-00-00 LINING, SHROUD 6LINING, SHROUD 6
-
768CR-77267-01-00 LINING, SHROUD 7LINING, SHROUD 7
-
778CR-77268-00-00 LINING, SHROUD 8LINING, SHROUD 8
-
788CR-77269-00-00 LINING, SHROUD 9LINING, SHROUD 9
-
798CR-77271-00-00 DAMPER, NOISE 1DAMPER, NOISE 1
-
808CR-7717J-00-00 TAPE, 5TAPE, 5
-
818CR-77165-00-00 TRIM 1TRIM 1
-
828ED-77351-00-00 EMBLEM 1 (MM700)EMBLEM 1 (MM700)
-
828EJ-77351-00-00 EMBLEM 1 (MM600)EMBLEM 1 (MM600)
-
838ED-77352-00-00 EMBLEM 2 (MM700)EMBLEM 2 (MM700)
-
838EJ-77352-00-00 EMBLEM 2 (MM600)EMBLEM 2 (MM600)
-
848EJ-77143-00-00 EMBLEM 3EMBLEM 3
-
8588X-77762-10-00 LABEL, WARNING 2LABEL, WARNING 2
-
858BH-77762-00-00 LABEL, WARNING 2LABEL, WARNING 2
-
8690267-48177-00 RIVET, BLINDRIVET, BLIND
-
878ED-2194H-00-00 PROTECTOR, MUFFLERPROTECTOR, MUFFLER
-
8890267-47186-00 RIVET, BLINDRIVET, BLIND
-
8990338-44019-00 PLUGPLUG
