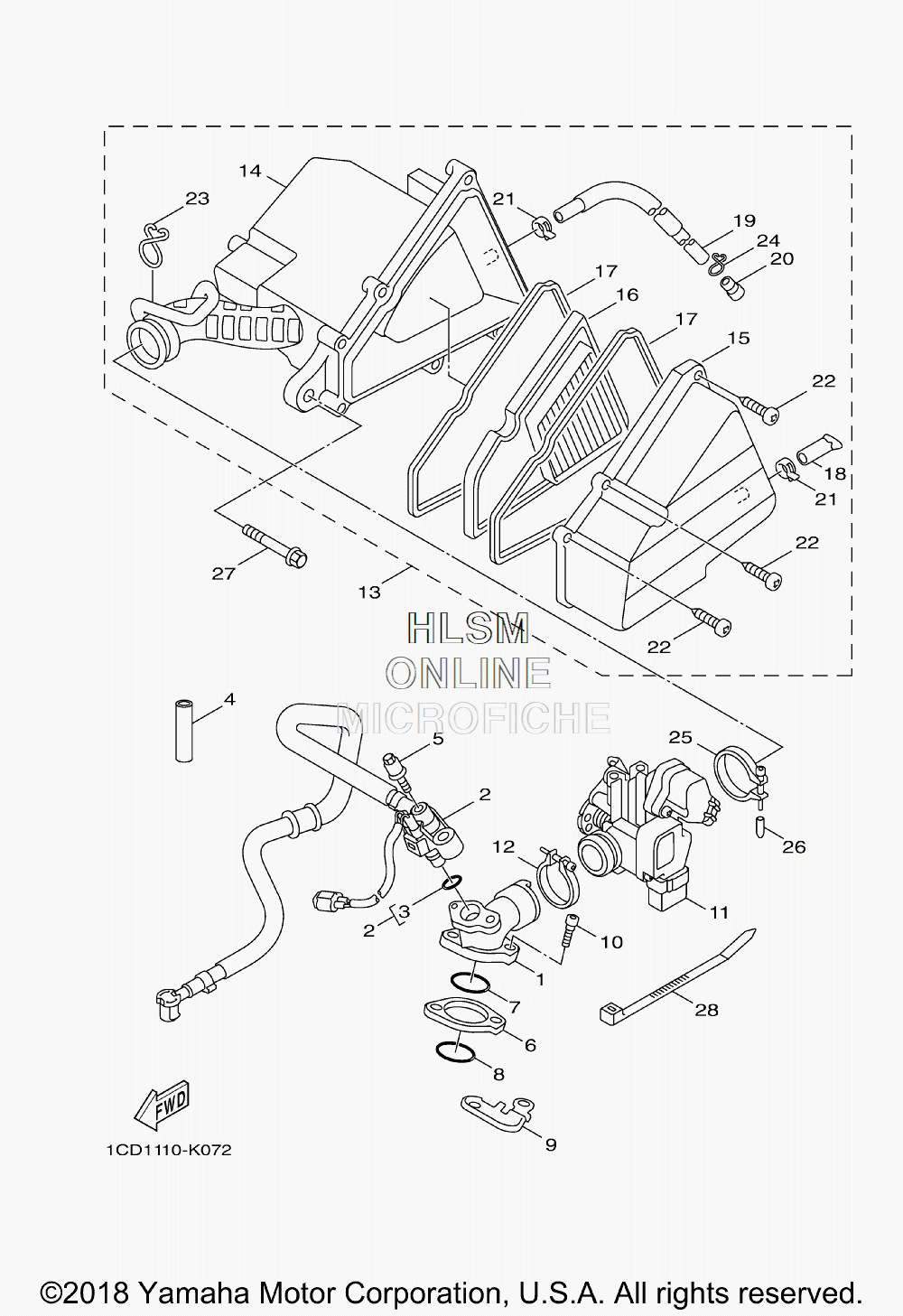

AIR CLEANER ASSY. W/ INTAKE для Yamaha ZUMA 50 F - 2019 года выпуска`
-
№АртикулНазвание
-
113P-E3585-01-00 MANIFOLDMANIFOLD
-
21CD-13930-00-00 PIPE INLET ASSEMBLYPIPE INLET ASSEMBLY
-
35CA-14147-00-00 ...O-RING...O-RING
-
41CD-E442F-00-00 PROTECTORPROTECTOR
-
590109-06834-00 BOLTBOLT
-
63B3-E3595-00-00 JOINTJOINT
-
793210-22803-00 O-RINGO-RING
-
893210-22803-00 O-RINGO-RING
-
91CD-E4255-00-00 PLATEPLATE
-
1091317-06025-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
113B3-E3750-01-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
123B3-E3575-00-00 BANDBAND
-
131CD-E4410-00-00 AIR CLEANER ASSYAIR CLEANER ASSY
-
141CD-WE441-00-00 ...AIR CLEANER CASE COMP....AIR CLEANER CASE COMP.
-
153B3-WE442-01-00 ...CAP, CLEANER CASE 1...CAP, CLEANER CASE 1
-
163B3-E4451-00-00 ...ELEMENT, AIR CLEANER...ELEMENT, AIR CLEANER
-
173B3-E4467-00-00 ...SEAL...SEAL
-
183B3-E443G-00-00 ...PIPE, DRAIN 2...PIPE, DRAIN 2
-
193B3-E443H-00-00 ...PIPE, DRAIN 3...PIPE, DRAIN 3
-
203B3-E4191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
2190467-12804-00 ...CLIP...CLIP
-
2297707-50025-00 ...SCREW, TAPPING...SCREW, TAPPING
-
2390467-16829-00 ...CLIP...CLIP
-
2490467-10803-00 ...CLIP...CLIP
-
2513P-E3474-00-00 BANDBAND
-
261CD-E4169-00-00 CAPCAP
-
2795827-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2890464-26800-00 CLAMPCLAMP
Все узлы модели:
- • AIR CLEANER ASSY. W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- CLUTCH ASSY.
- COWLING W/ LEG SHIELD
- CRANKCASE ASSY.
- CRANKSHAFT W/ PISTON ASSY.
- CYLINDER W/ HEAD ASSY.
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST ASSY.
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK ASSY.
- GENERATOR ASSY.
- HANDLEBAR W/ CABLES - MIRRORS
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT ASSY.
- INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL PUMP
- RADIATOR W/ HOSES
- REAR ARM
- SEAT ASSY.
- SIDE COVER
- STAND W/ FOOTREST
- STARTER CLUTCH ASSY.
- STARTING MOTOR ASSY.
- SUSPENSION - FRONT FORK
- TAILLIGHT ASSY.
- TRANSMISSION
- VALVE ASSY.
- WATER PUMP ASSY.
- WHEEL - FRONT
- WHEEL - REAR
