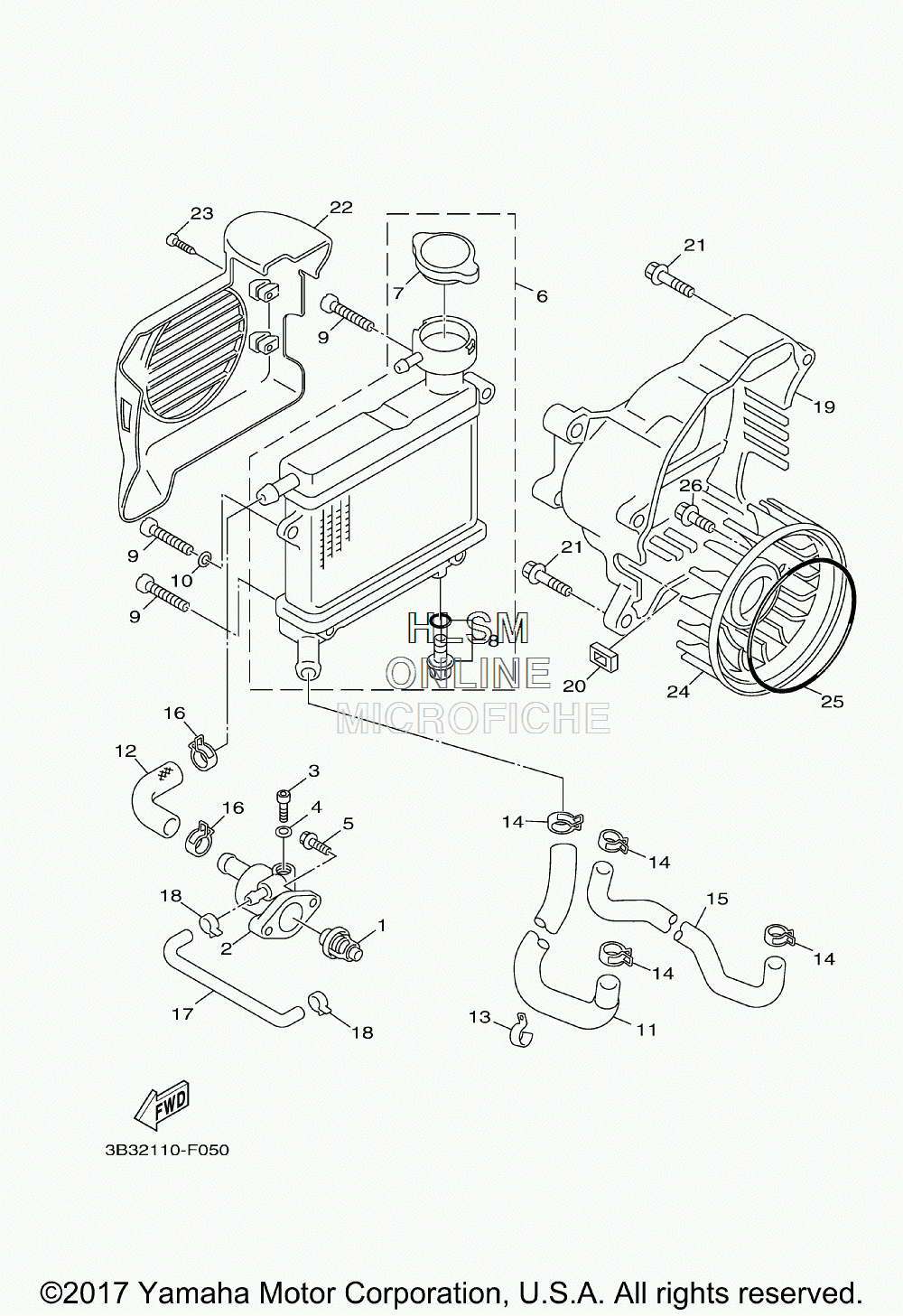

RADIATOR W/ HOSES для Yamaha ZUMA 50F - 2018 года выпуска`
-
№АртикулНазвание
-
14BA-12411-00-00 THERMOSTATTHERMOSTAT
-
25ST-E2413-20-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
390105-06896-00 BOLT, FLANGEBOLT, FLANGE
-
490430-06166-00 GASKETGASKET
-
590105-06894-00 BOLT, FLANGEBOLT, FLANGE
-
610B-E2460-00-00 RADIATOR ASSYRADIATOR ASSY
-
75ST-E2462-00-00 ...CAP, RADIATOR...CAP, RADIATOR
-
85VU-12478-00-00 ...COCK, DRAIN...COCK, DRAIN
-
997707-60530-00 SCREW, TAPPINGSCREW, TAPPING
-
1090201-06050-00 WASHER, PLATEWASHER, PLATE
-
113B3-E2482-00-00 PIPE 2PIPE 2
-
123B3-E2483-00-00 PIPE 3PIPE 3
-
1390462-10806-00 CLAMPCLAMP
-
1490467-20810-00 CLIPCLIP
-
155ST-E2477-00-00 PIPE 7PIPE 7
-
1690467-20810-00 CLIPCLIP
-
171CD-E243F-00-00 HOSE,3HOSE,3
-
1890467-09809-00 CLIPCLIP
-
193B3-E2621-02-00 CASE, FANCASE, FAN
-
203B3-E2465-00-00 DAMPER, RADIATORDAMPER, RADIATOR
-
2190105-06894-00 BOLT, FLANGEBOLT, FLANGE
-
223B3-E2467-11-00 COVER, RADIATORCOVER, RADIATOR
-
2397707-60530-00 SCREW, TAPPINGSCREW, TAPPING
-
245ST-E2611-01-00 FANFAN
-
2593210-76801-00 O-RINGO-RING
-
2695027-06012-00 BOLT, FLANGEBOLT, FLANGE
