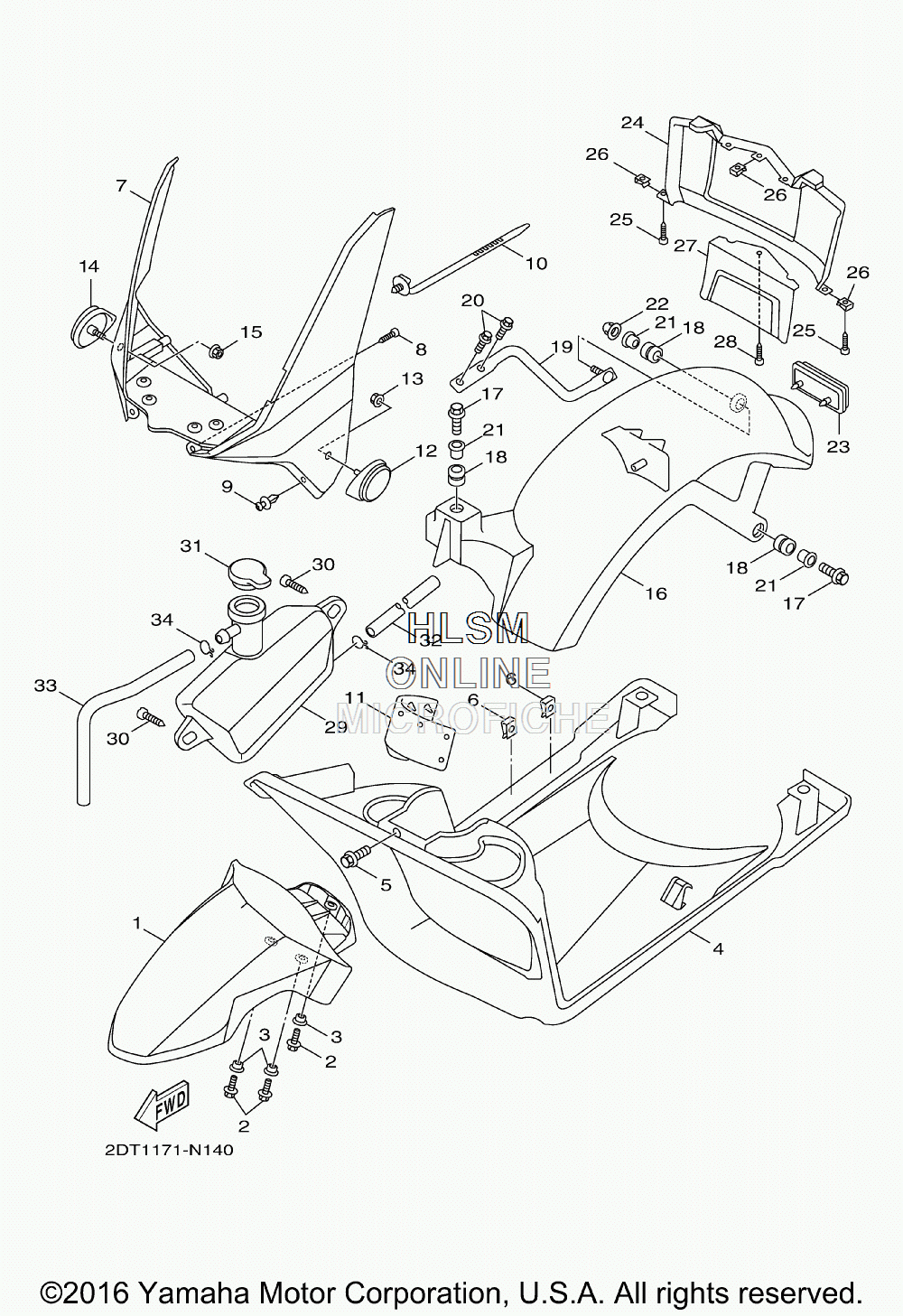

FENDER - FRONT / REAR для Yamaha ZUMA 50FX (WHITE) [YW50FXGW] - 2016 года выпуска`
-
№АртикулНазвание
-
11CD-F1511-00-00 FENDER, FRONTFENDER, FRONT
-
290119-06821-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390387-068F8-00 COLLARCOLLAR
-
41VC-F1552-00-00 FENDER, INNERFENDER, INNER
-
590119-06821-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690183-05816-00 NUT, SPRINGNUT, SPRING
-
71CD-F1519-00-00 MOLE, FENDERMOLE, FENDER
-
897707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
990269-06808-00 RIVETRIVET
-
1090464-30802-00 CLAMPCLAMP
-
111VC-F151B-00-00 CAPCAP
-
121CD-H5110-00-00 REFLECTOR ASSYREFLECTOR ASSY
-
1395707-06500-00 NUT, FLANGENUT, FLANGE
-
141CD-H5120-00-00 FRONT REFLECTOR ASSY 2FRONT REFLECTOR ASSY 2
-
1595707-06500-00 NUT, FLANGENUT, FLANGE
-
163B3-F1611-01-00 FENDER, REARFENDER, REAR
-
1790119-06096-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1890480-12237-00 GROMMETGROMMET
-
193B3-F1613-00-00 STAY, FENDER 1STAY, FENDER 1
-
2095817-06014-00 BOLT, FLANGEBOLT, FLANGE
-
2190387-087L0-00 COLLARCOLLAR
-
2290176-06008-00 NUT, CROWNNUT, CROWN
-
233B3-H5150-00-00 PANEL, SIDEPANEL, SIDE
-
241CD-F1629-00-00 GUARD, MUDGUARD, MUD
-
2597707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2690183-05816-00 NUT, SPRINGNUT, SPRING
-
271CD-F162S-00-00 GUARD, DRESSGUARD, DRESS
-
2890169-05800-00 TAPPING SCREWTAPPING SCREW
-
293B3-F1871-00-00 TANK, RECOVERYTANK, RECOVERY
-
3097707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
315CA-F1815-00-00 CAPCAP
-
321CD-F1816-00-00 PIPE 1PIPE 1
-
335ST-F1877-00-00 PIPE, OVERFLOWPIPE, OVERFLOW
-
3490467-090A2-00 CLIPCLIP
