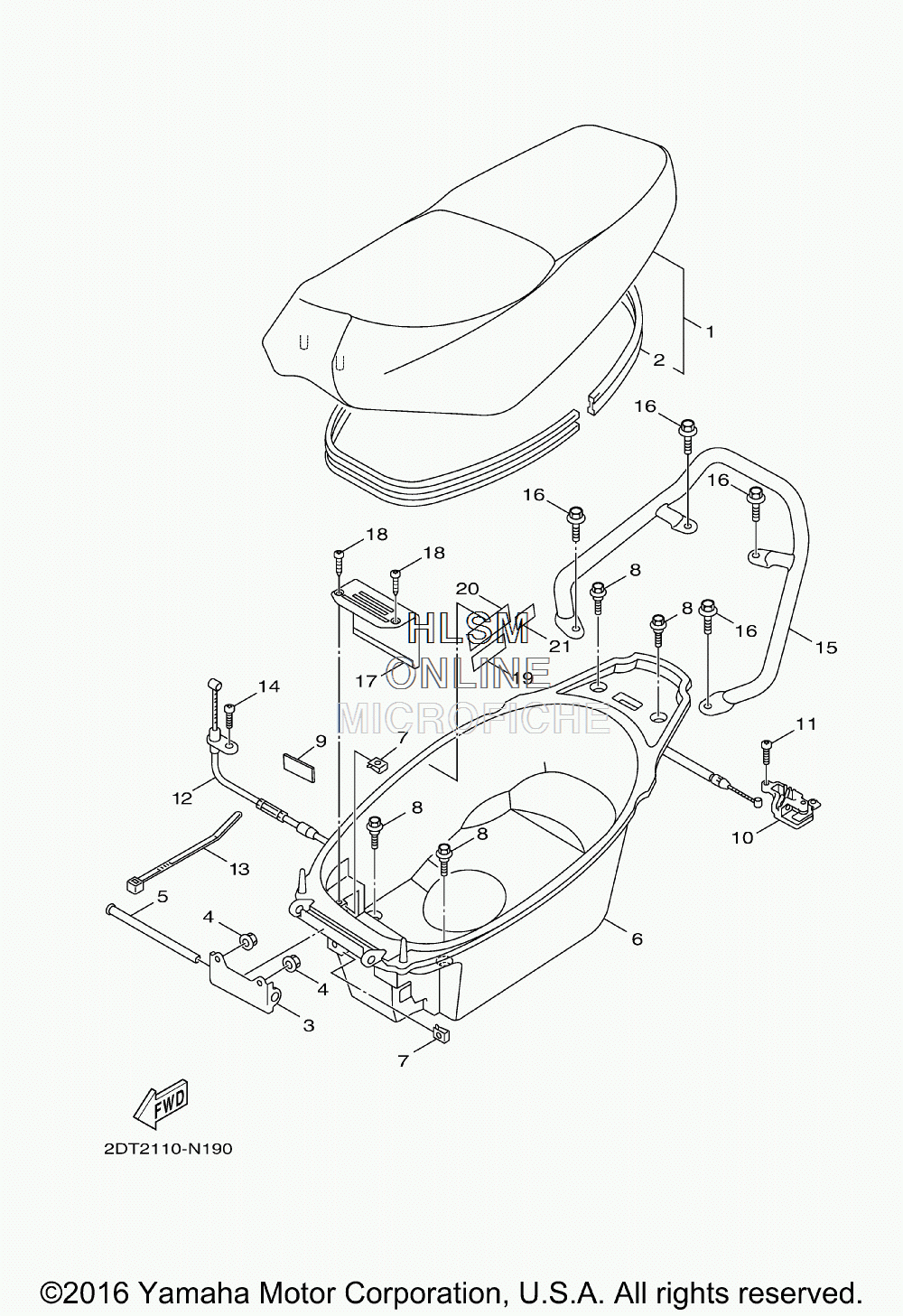

SEAT ASSY. для Yamaha ZUMA 50FX (SILVER) [YW50FXGS] - 2016 года выпуска`
-
№АртикулНазвание
-
11CD-F4730-20-00 DOUBLE SEAT ASSY (OPT) (RW)DOUBLE SEAT ASSY (OPT) (RW)
-
21CD-F4730-30-00 DOUBLE SEAT ASSY (STDS) (OPT)DOUBLE SEAT ASSY (STDS) (OPT)
-
31CD-F475M-00-00 ...SEAL...SEAL
-
44CW-F4726-01-00 HINGE, SEATHINGE, SEAT
-
595707-06500-00 NUT, FLANGENUT, FLANGE
-
690241-10015-00 PINPIN
-
71CD-F473R-00-00 BOX 1BOX 1
-
890183-05816-00 NUT, SPRINGNUT, SPRING
-
990109-06043-00 BOLTBOLT
-
101CD-H2176-00-00 DAMPERDAMPER
-
115ML-F4780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
1295827-06016-00 BOLT, FLANGEBOLT, FLANGE
-
131CD-F478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1490464-26800-00 CLAMPCLAMP
-
1598507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
162DT-F4812-00-35 HANDLE (OPT) (RW)HANDLE (OPT) (RW)
-
162DT-F4812-00-33 HANDLE (STDS) (OPT)HANDLE (STDS) (OPT)
-
1790119-08850-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
183B3-H2129-00-00 COVER, BATTERYCOVER, BATTERY
-
1997707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
204JK-F8446-01-00 LABEL, CAUTIONLABEL, CAUTION
-
213B3-F1668-00-00 LABEL, TIRELABEL, TIRE
-
225PJ-F4877-01-00 LABEL, CAUTIONLABEL, CAUTION
