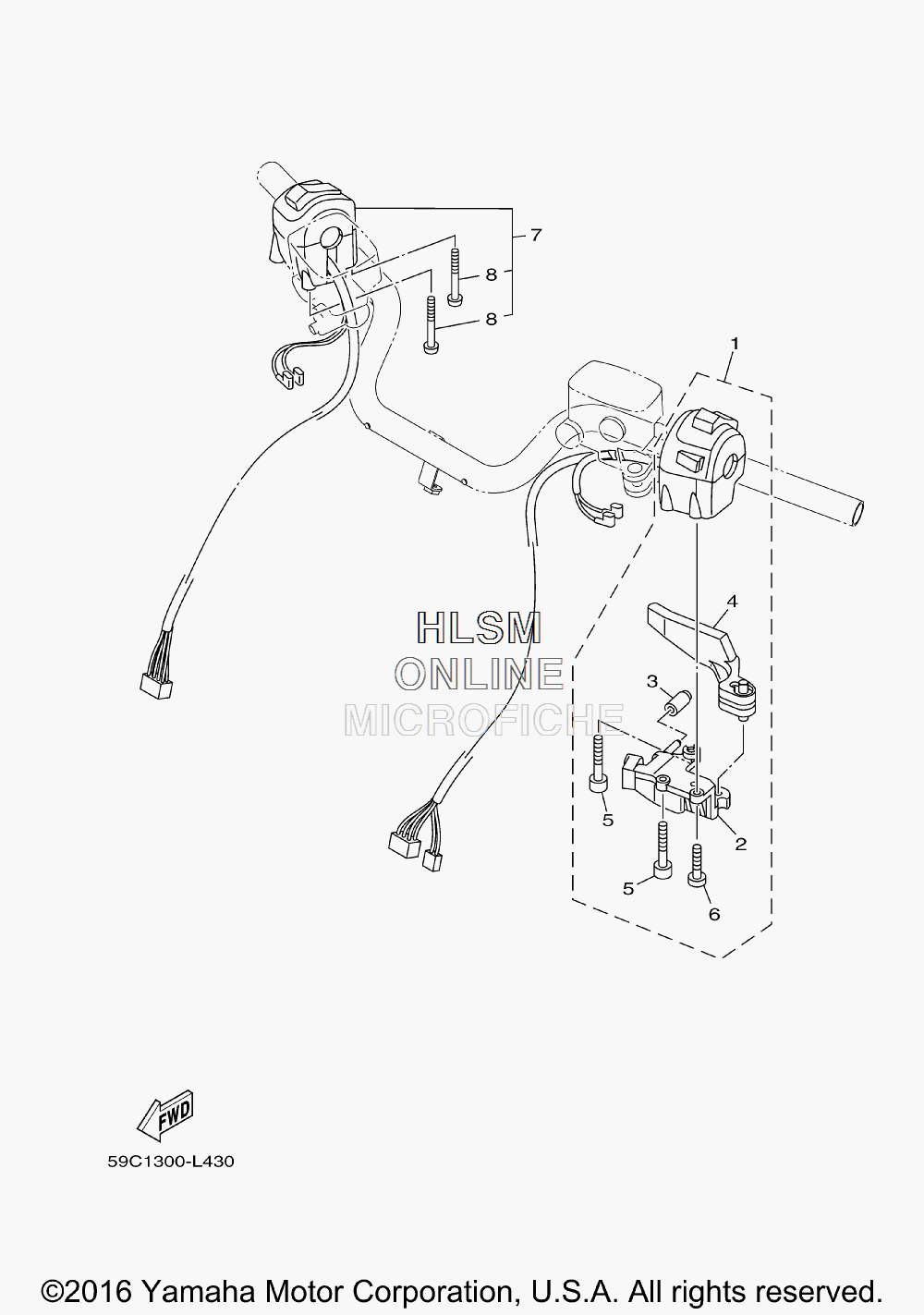

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha TMAX [XP500G] - 2016 года выпуска`
-
№АртикулНазвание
-
12PW-83972-00-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
-
25RB-26396-01-00 ...HOLDER, ADJUSTING...HOLDER, ADJUSTING
-
35RB-13569-00-00 ...PLUG, BLIND...PLUG, BLIND
-
45VU-83930-00-00 ...LEVER LOCK ASSY...LEVER LOCK ASSY
-
591317-05055-00 ...BOLT...BOLT
-
698507-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
72PW-83963-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
898507-05050-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
