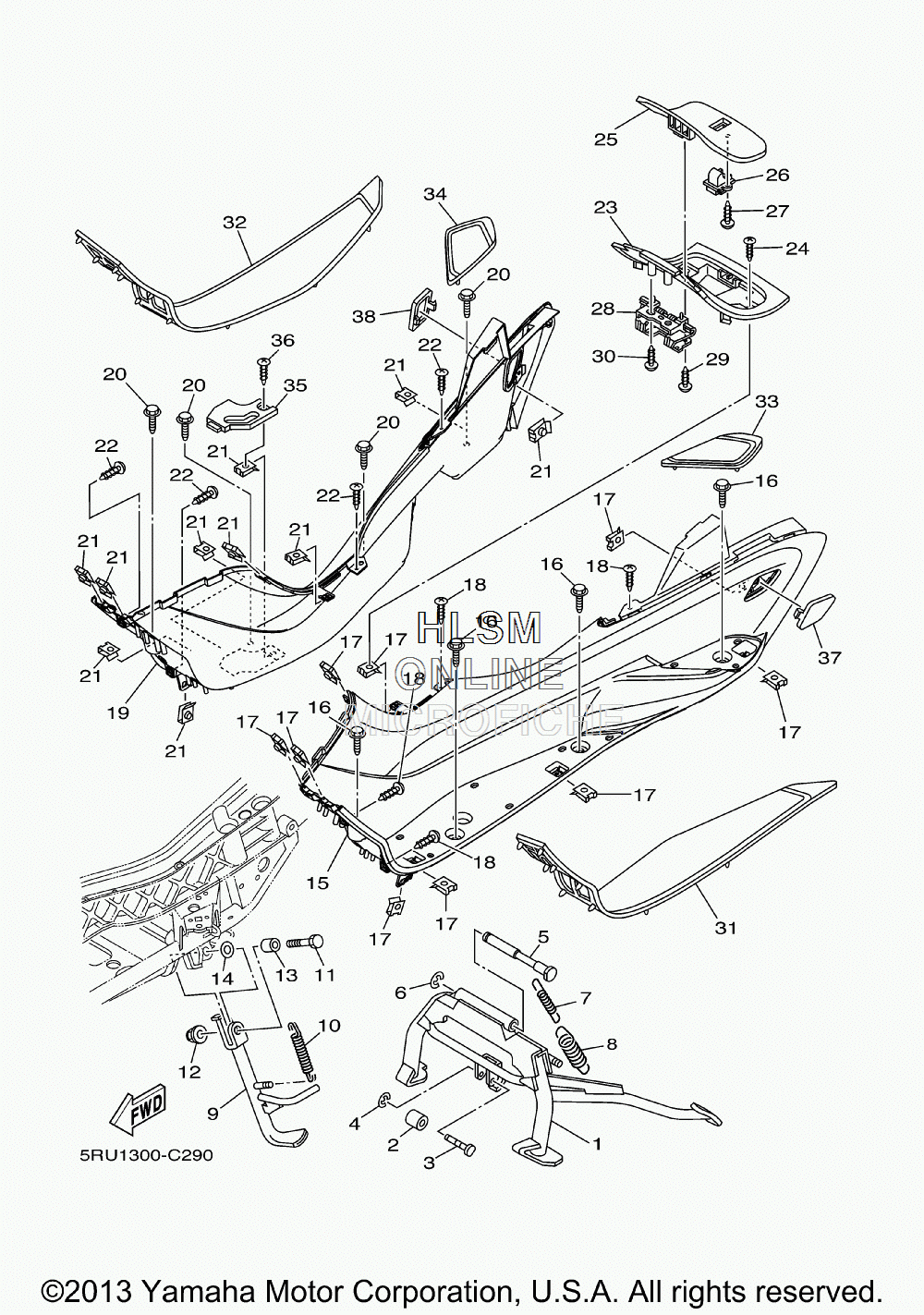

STAND W/ FOOTREST для Yamaha MAJESTY - 2014 года выпуска`
-
№АртикулНазвание
-
15RU-27111-00-00 STAND, MAINSTAND, MAIN
-
25RU-27214-01-00 STOPPERSTOPPER
-
35RU-27112-00-00 SHAFT, MAIN STANDSHAFT, MAIN STAND
-
499001-04600-00 CIRCLIPCIRCLIP
-
558K-27112-02-00 SHAFT, MAIN STANDSHAFT, MAIN STAND
-
693430-12008-00 CIRCLIP E-TYPECIRCLIP E-TYPE
-
790506-20010-00 SPRING, TENSIONSPRING, TENSION
-
890506-40002-00 SPRING, TENSIONSPRING, TENSION
-
95RU-27311-10-00 STAND, SIDESTAND, SIDE
-
1090506-23005-00 SPRING, TENSIONSPRING, TENSION
-
1190101-10025-00 BOLTBOLT
-
1295602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
1390387-10018-00 COLLARCOLLAR
-
1490201-16M00-00 WASHER, PLATEWASHER, PLATE
-
155RU-27481-00-00 BOARD, FOOTRESTBOARD, FOOTREST
-
1690119-06209-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1790183-05042-00 NUT, SPRINGNUT, SPRING
-
1897702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
195RU-27488-00-00 BOARD, FOOTREST 2BOARD, FOOTREST 2
-
2090119-06209-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2190183-05042-00 NUT, SPRINGNUT, SPRING
-
2297702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
235RU-27486-00-00 COVER 1COVER 1
-
2497702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
255RU-274A8-00-00 LID, FUELLID, FUEL
-
265GM-21780-01-00 LOCK ASSYLOCK ASSY
-
2797702-40512-00 SCREW, TAPPINGSCREW, TAPPING
-
285RU-2849E-10-00 HINGE 4HINGE 4
-
2997702-40010-00 SCREW, TAPPINGSCREW, TAPPING
-
3097702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
315RU-27483-00-00 MAT 1MAT 1
-
325RU-27484-00-00 MAT 2MAT 2
-
335RU-27493-00-00 MAT 3MAT 3
-
345RU-27494-00-00 MAT 4MAT 4
-
355RU-27463-00-00 COVER 2COVER 2
-
3697702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
375RU-27475-00-00 CAP 1CAP 1
-
385RU-27476-00-00 CAP 2CAP 2
