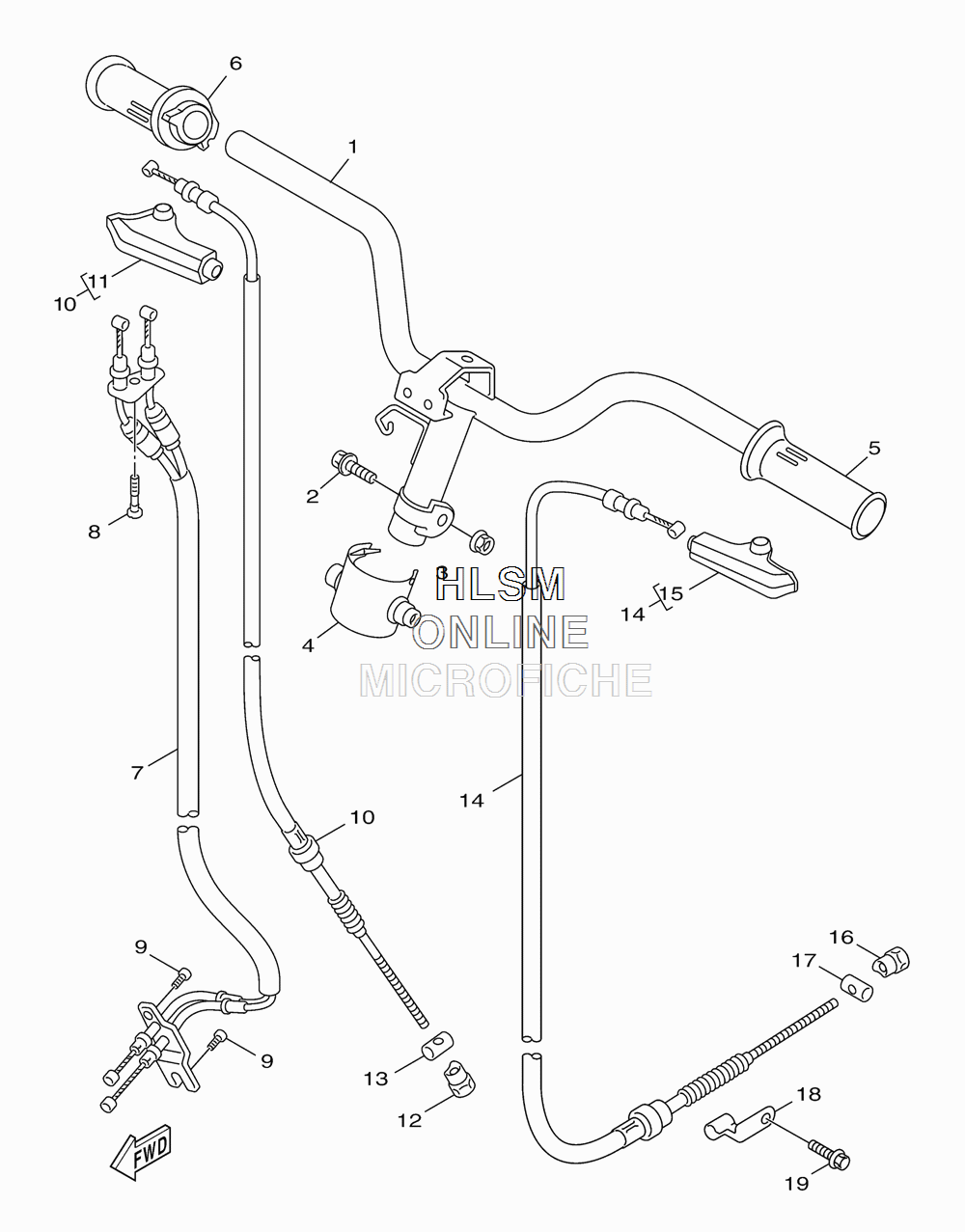

HANDLEBAR W/ CABLES - MIRRORS для Yamaha VINO 50 - 2013 года выпуска`
-
№АртикулНазвание
-
15ST-F6110-00-00 HANDLE COMP.HANDLE COMP.
-
290105-10036-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
390185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
41TS-F6124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
55ST-F6241-10-00 GRIPGRIP
-
65ST-F6240-30-00 GRIP ASSYGRIP ASSY
-
71TS-F6301-00-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
898507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
992017-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1013P-F6341-20-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
1113P-F637A-00-00 COVER, HANDLE LEVER 2COVER, HANDLE LEVER 2
-
1290179-06411-00 NUT,SPECIAL SHAPENUT,SPECIAL SHAPE
-
1390249-12008-00 NUT,SPECIAL SHAPENUT,SPECIAL SHAPE
-
1413P-F6351-00-00 CABLE, BRAKECABLE, BRAKE
-
1513P-F6372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
1690179-06411-00 NUT,SPECIAL SHAPENUT,SPECIAL SHAPE
-
1790249-12008-00 PIN, SPEC'L SHAPEPIN, SPEC'L SHAPE
-
185ST-F639F-00-00 HOLDER 2HOLDER 2
-
1995807-06016-00 BOLT, FLANGEBOLT, FLANGE
