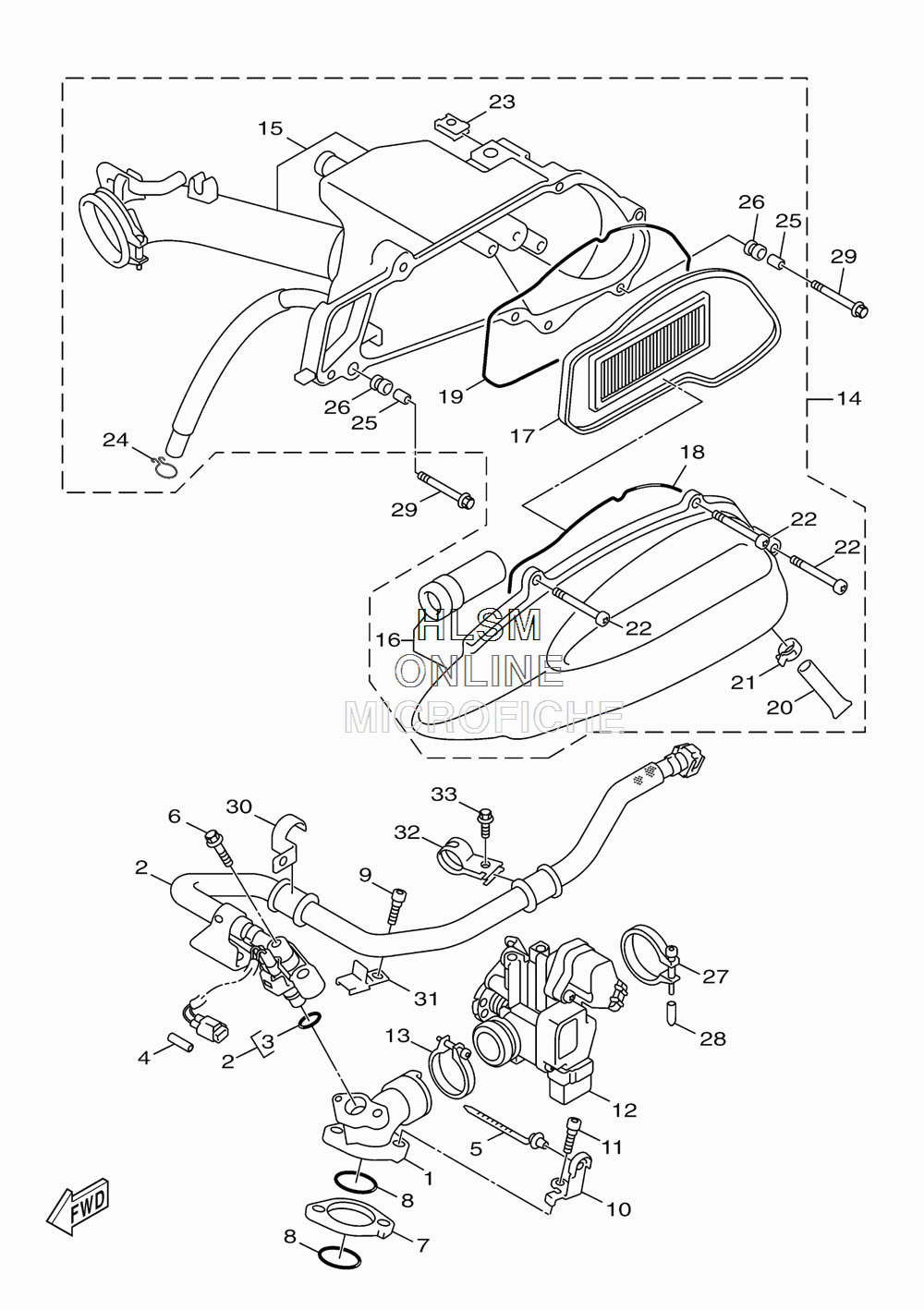

AIR CLEANER ASSY. W/ INTAKE для Yamaha VINO 50 - 2013 года выпуска`
-
№АртикулНазвание
-
113P-E3585-01-00 MANIFOLDMANIFOLD
-
23P3-13930-10-00 PIPE INLET ASSEMBLYPIPE INLET ASSEMBLY
-
35CA-14147-00-00 ...O-RING...O-RING
-
41CD-E442F-00-00 PROTECTORPROTECTOR
-
590464-30802-00 CLAMPCLAMP
-
695817-06025-00 BOLT, FLANGEBOLT, FLANGE
-
73B3-E3595-00-00 JOINTJOINT
-
893210-22803-00 O-RINGO-RING
-
993210-22803-00 O-RINGO-RING
-
101TS-E4255-00-00 PLATEPLATE
-
1191317-06025-00 BOLTBOLT
-
123P3-E3750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
133B3-E3575-00-00 BANDBAND
-
1413P-E4410-10-00 AIR CLEANER ASSY.AIR CLEANER ASSY.
-
1513P-WE441-10-00 ...AIR CLEANER CASE COMP....AIR CLEANER CASE COMP.
-
165ST-WE442-10-00 ...CAP, CLEANER CASE 1...CAP, CLEANER CASE 1
-
175ST-E4451-00-00 ...ELEMENT, AIR CLEANER...ELEMENT, AIR CLEANER
-
185ST-E4467-00-00 ...SEAL...SEAL
-
195ST-E4476-00-00 ...SEAL...SEAL
-
205ST-E443E-00-00 ...PIPE, DRAIN...PIPE, DRAIN
-
2190467-12804-00 ...CLIP...CLIP
-
2297707-50125-00 ...SCREW, TAPPING...SCREW, TAPPING
-
235ST-E4164-00-00 ...NUT, HOLDING...NUT, HOLDING
-
2490467-16829-00 ...CLIP...CLIP
-
255TY-E4449-00-00 ...COLLAR...COLLAR
-
265ST-E4435-00-00 ...GROMMET...GROMMET
-
2713P-E3474-00-00 BANDBAND
-
281CD-E4169-00-00 CAPCAP
-
2995817-06030-00 BOLT, FLANGEBOLT, FLANGE
-
303P3-E2491-01-00 CLAMP 1CLAMP 1
-
3113P-E2492-00-00 CLAMP 2CLAMP 2
-
324D2-F1374-00-00 HOLDER, FUEL PIPEHOLDER, FUEL PIPE
-
3395807-06014-00 BOLT, FLANGEBOLT, FLANGE
