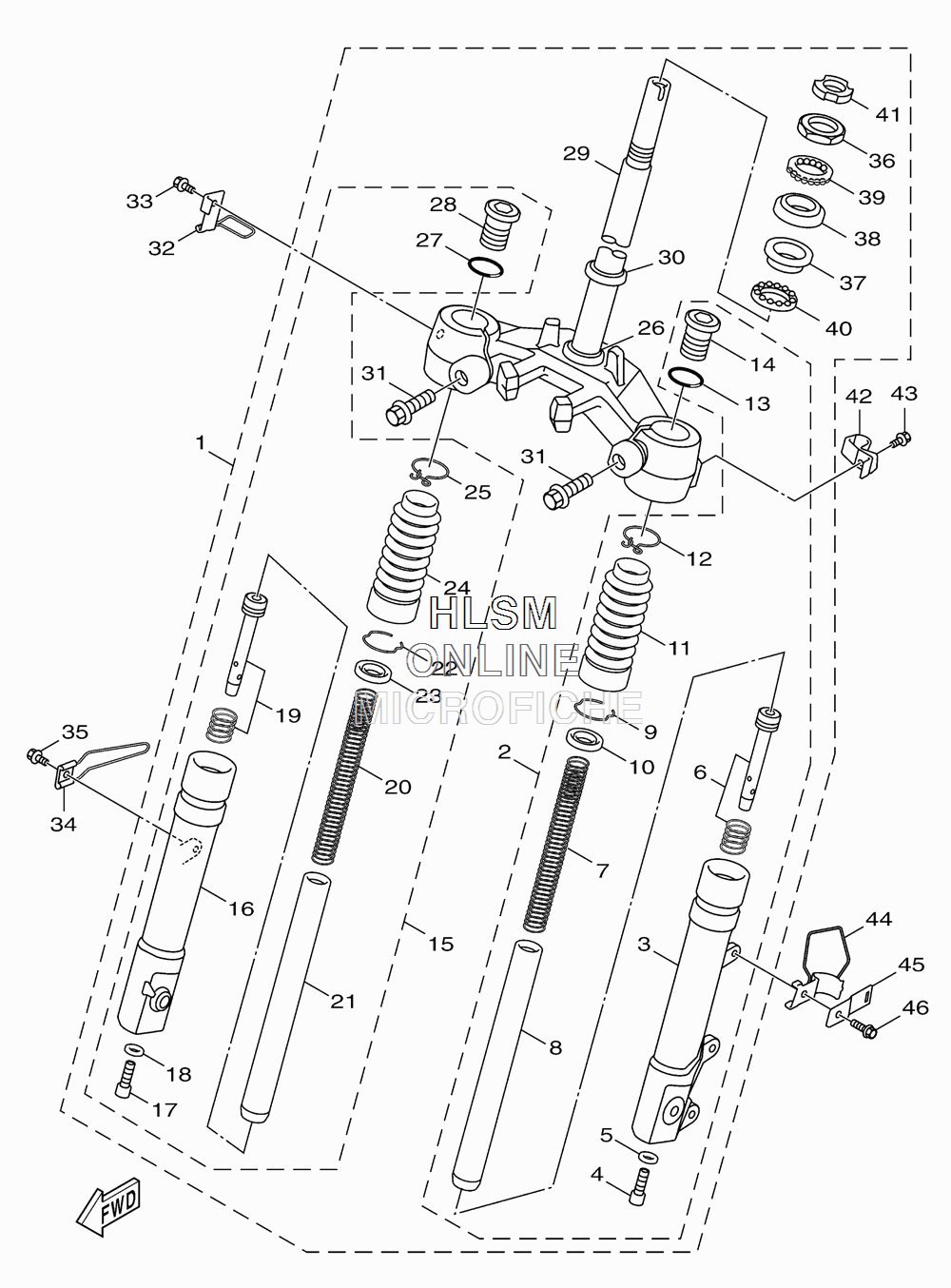

SUSPENSION - FRONT FORK для Yamaha ZUMA 50 - 2012 года выпуска`
-
№АртикулНазвание
-
-1CD-F3100-00-00 FRONT FORK - BLANKFRONT FORK - BLANK
-
11CD-F3100-10-00 FRONT FORK ASSYFRONT FORK ASSY
-
21CD-F3102-00-00 ...FRONT FORK ASSY (LEFT)...FRONT FORK ASSY (LEFT)
-
31CD-F3126-00-00 ......TUBE, OUTER (LEFT)......TUBE, OUTER (LEFT)
-
41CD-F3181-00-00 ......BOLT, HEXAGON SOCKET HEAD......BOLT, HEXAGON SOCKET HEAD
-
53GF-F3158-00-00 ......GASKET......GASKET
-
615P-F3170-00-00 ......CYLINDER COMP, FRONT FORK......CYLINDER COMP, FRONT FORK
-
715P-F3141-00-00 ......SPRING, FRONT FORK......SPRING, FRONT FORK
-
83B3-F3110-00-00 ......INNER TUBE COMP 1......INNER TUBE COMP 1
-
93NW-F3156-00-00 ......RING, SNAP......RING, SNAP
-
105SU-F3145-00-00 ......OIL SEAL......OIL SEAL
-
111CD-F3191-00-00 ......BOOT......BOOT
-
1213P-F3192-00-00 ......BAND......BAND
-
133GF-F3147-00-00 ......O-RING......O-RING
-
141P4-F3356-00-00 ......BOLT 2......BOLT 2
-
151CD-F3103-00-00 ...FRONT FORK ASSY (RIGHT)...FRONT FORK ASSY (RIGHT)
-
161CD-F3136-00-00 ......TUBE, OUTER (RIGHT)......TUBE, OUTER (RIGHT)
-
171CD-F3181-00-00 ......BOLT, HEXAGON SOCKET HEAD......BOLT, HEXAGON SOCKET HEAD
-
183GF-F3158-00-00 ......GASKET......GASKET
-
1915P-F3170-00-00 ......COMP, FRONT FORK......COMP, FRONT FORK
-
2015P-F3141-00-00 ......SPRING, FRONT FORK......SPRING, FRONT FORK
-
213B3-F3110-00-00 ......INNER TUBE COMP 1......INNER TUBE COMP 1
-
223NW-F3156-00-00 ......RING, SNAP......RING, SNAP
-
235SU-F3145-00-00 ......OIL SEAL......OIL SEAL
-
241CD-F3191-00-00 ......BOOT......BOOT
-
2513P-F3192-00-00 ......BAND......BAND
-
261CD-F3462-00-00 ......SEAL, DUST......SEAL, DUST
-
273GF-F3147-00-00 ......O-RING......O-RING
-
281P4-F3356-00-00 ......BOLT 2......BOLT 2
-
291CD-F3340-00-00 ......UNDER BRACKET COMP.......UNDER BRACKET COMP.
-
3022F-23414-01-00 ......RACE, BALL 4......RACE, BALL 4
-
311CD-F3346-00-00 ......BOLT 1......BOLT 1
-
323P3-F3389-00-00 GUIDE, CABLEGUIDE, CABLE
-
3395807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
341P4-F3317-00-00 HOLDER, CABLEHOLDER, CABLE
-
3595807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
363KJ-23411-01-00 RACE, BALL 1RACE, BALL 1
-
3722F-23412-01-00 RACE, BALL 2RACE, BALL 2
-
382E9-23412-00-00 RACE, BALL 2RACE, BALL 2
-
3922F-2341E-00-00 RETAINER, BALL BEARINGRETAINER, BALL BEARING
-
4093505-32042-00 BALL 5/32BALL 5/32
-
412E9-23454-00-00 NUT, FITTING 2NUT, FITTING 2
-
423P3-F5875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
4395807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
441CD-F5876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
455HK-F5876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
4695807-06012-00 BOLT, FLANGEBOLT, FLANGE
